Miboxer Futc05l Rgb+cct Led Garden Light Lora 433mhz Instructions

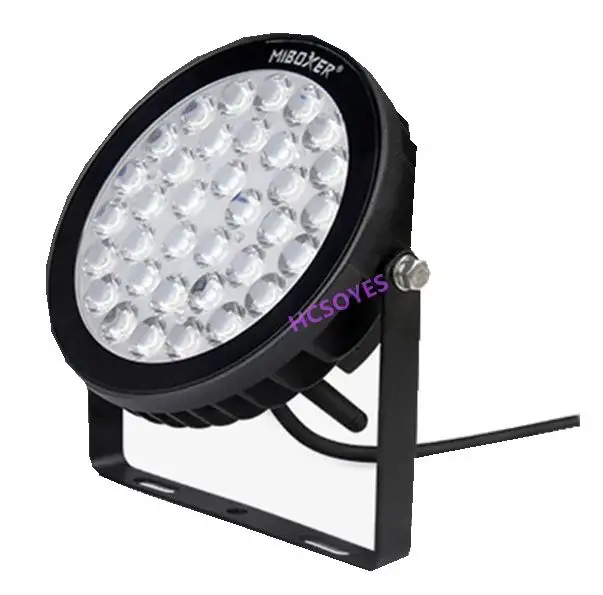

MiBOXER FUTC05L RGB+CCT LED Garden Light LoRa 433MHz

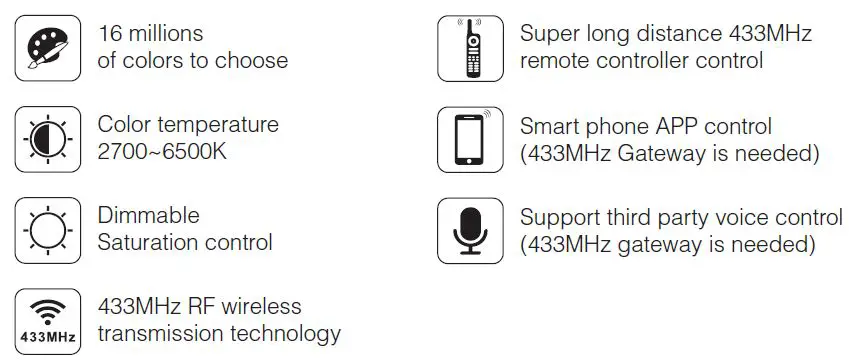

Features

Use LoRa SPSP modem technology, to fulfill super long distance signal transmitting. 433MHz RF remote or 433MHz gateway controllable, 16 million colors, CCT, brightness, and saturation controllable.

Dynamic Mode Sheet

Parameters

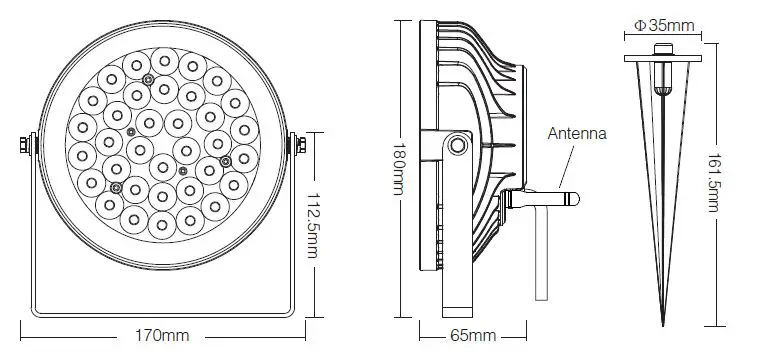

25W RGB+CCT LED Garden Light (LoRa 433MHz)

• Model No: FUTC05L
• Input Voltage: AC100~240V 50/60Hz Power: 25W
• Working Temp.: -20~60°C
• Color Temp.: 2700~6500K Luminous Flux: 2100LM
• Light Efficiency: 85LM/W
• CRI: >80
• PF: >0.5
• Lifespan: 50000 hours
• Illumination Distance: >15m
• Beam angle: 15°
• IP Rate: IP66
• RF: 433MHz (LoRa spread spectrum) Control Distance: 2000m
• Product Weight: 880g

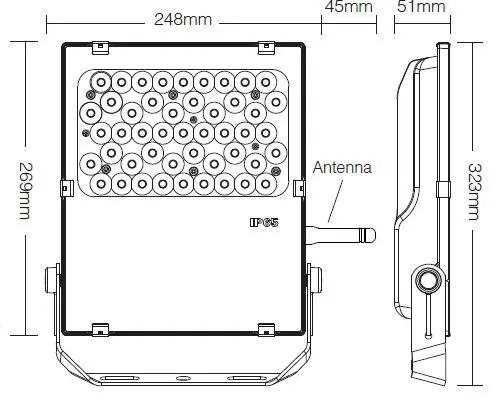

50W RGB+CCT LED Garden Light (LoRa 433MHz)

• Model No.: FUTC06L
• Input Voltage: AC100~240V 50/60Hz Power: 50W
• Working Temp.: -20~60°C
• Color Temp.: 2700~6500K Luminous Flux: 4000LM
• Light Efficiency: 80LM/W
• CRI: >80 PF: >0.9
• Lifespan: 50000 hours
• illumination Distance: >15m
• Beam angle: 25°
• IP Rate: IP65
• RF: 433MHz (LoRa spread spectrum) Control Distance: 2000m
• Product Weight: 2.07kg

100W RGB+CCT LED Garden Light (LoRa 433MHz)

• Model No.: FUTC07L
• Input Voltage: AC100~240V 50/60Hz Power: 100W
• Working Temp.: -20~60°C
• Color Temp.: 2700~6500K Luminous Flux: 7500LM
• Light Efficiency: 75LM/W
• CRI: >80 PF: >0.9
• Lifespan: 50000 hours
• illumination Distance: >15m
• Beam angle: 25°
• IP Rate: IP65
• RF: 433MHz (LoRa spread spectrum) Control Distance: 2000m
• Product Weight: 4.73kg

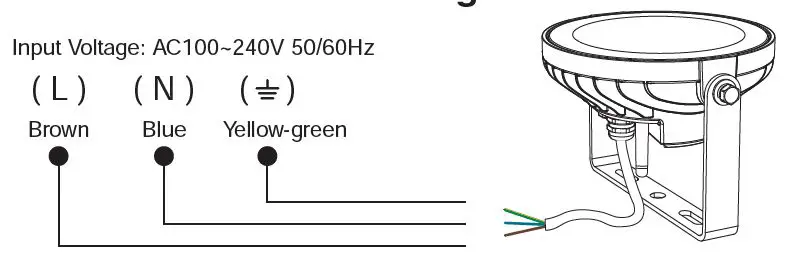

FUTC05L Connection Diagram

Input Voltage: AC100~240V 50/60Hz

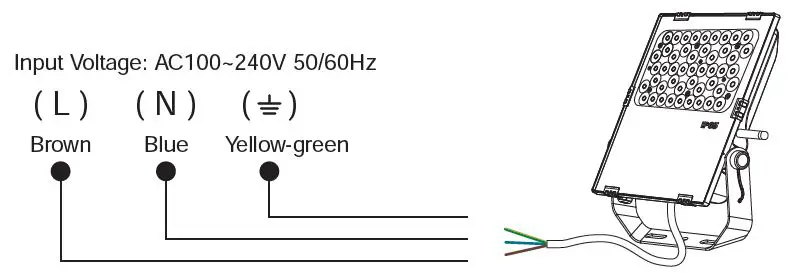

FUTC06L / FUTC07L Connection Diagram

Input Voltage: AC100~240V 50/60Hz

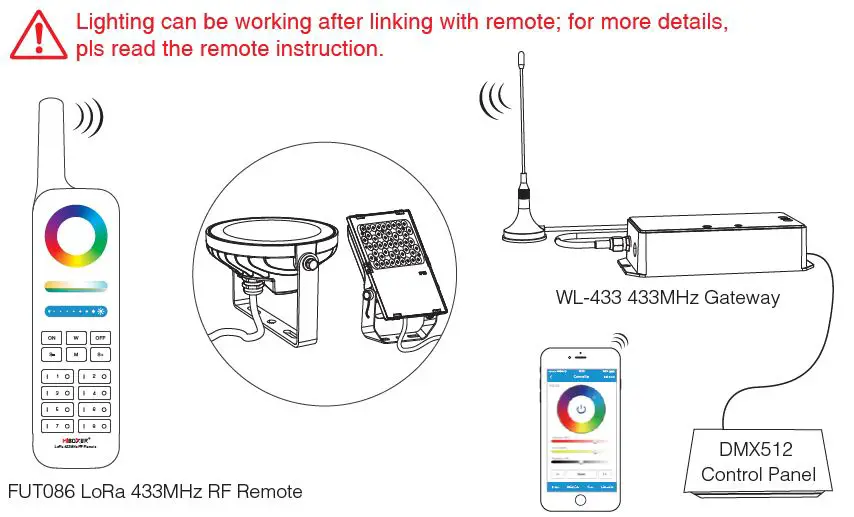

Link/Unlink

Compatible with “FUT086 remote” and “WL-433 433MHz gateway” (Purchased separately)

Attention

1. When installing the lighting fixtures, pls switch off the power to make sure safety.
2. Please check whether the input voltage supply is in accordance with the lighting fixtures, and please check the connection of both the cathode and anode.
3. The working power is a high voltage alternating current, so it must be far away from people and must with ground connection.
4. Non-professional users cannot dismantle the lighting fixtures directly, otherwise, it may cause fire and electric shock.
5. Please do not use lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
6. The lighting fixtures will be heating on working, pls do not cover the lighting housing.
