Miboxer Rgb+cct Led Garden Light (subordinate Lamp) User Manual

Mi-Light
RGB+CCT LED Garden Light (Subordinate Lamp)
Model No.: SYS-RC1 / SYS-RC2

This product has to be connected to the “SYS-T1 Controller” to fulfill the remote control.

Features

The housing of this product is made of die-cast aluminum, and the lens is made of transparent PC; no astigmatism, no shadow, elegant and delicate. We use silicone rubber to seal the light to assure super waterproofness, the waterproof rating is IP66. Connecting with the host controller(SYS-T1), you can wireless control the 16million color changes, color temperature, brightness, and saturation. Create a beautiful lighting environment for you. Widely used on landscape lighting including flowers, trees, and lawn, etc.

RGB+CCT 16 Million of colors to choose
Color temperature 2700K~6500K
Beam Angle 15°, Illumination distance Greater than 10m
Dim brightness/ Saturation
Waterproof and dustproof grade IP66

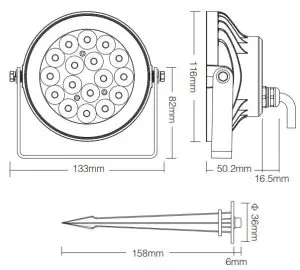

Parameters

Model No.: SYS-RC1
Input Voltage: DC24V
Power: 9W
Working Temperature: -20~45 ℃
Color temperature: 2700K~6500K
Luminous Flux: 900LM
Light Efficiency: 100LM/W
CRI: >80
Lifespan: 50000h
Illumination distance: >10m
Beam AngIe: 15°
IP Rate: IP66

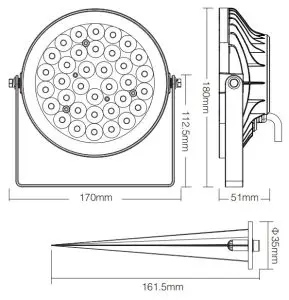

Parameters

Model No.: SYS-RC2
Input Voltage: DC24V
Power: 15W
Working Temperature: -20~45 ℃
Color temperature: 2700K~6500K
Luminous Flux: 1500LM
Light Efficiency: 100LM/W
CRI: >80
Lifespan: 50000h
Illumination distance: >10m
Beam AngIe: 15°
IP Rate: IP66

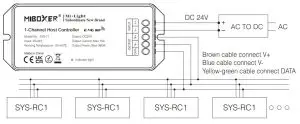

Connection Diagram

Note: The “SYS-T1 Controller” has to be purchased separately.

Note： When using “SYS-T1 controller”, you need to add “SYS-T2 1-channel signal amplifier” for the below 3 situations.

1. Connecting over 50pcs lights.
2. Connected cable length over 300m.
3. Output power over 360W.

Input: DC24V

Attention

1. Please check whether the input voltage is in accordance with the lighting working voltage, and please check the connection of both the cathode and anode.
2. The working Voltage is DC24V, the lighting will be damaged if the voltage is higher than 24V.
3. Non-professional users cannot dismantle the controller directly, Otherwise, it may damage the light.

  Made in China
