Mi-Light
Subordinate New Brand
20W RGB+CCT Panel Light
Model No.: FUTL03
Features
20W RGB+CCT Panel Light is made of Aluminum Alloy+LGP+diffuser plate.
It’s with full-sealed design with anti-moisture and anti-mosquito. Beam angle is 160degree; The light is smooth without flickering,flare and dark space.
Widely used in hotels, restaurants, exhibition centers, and offices, etc.
 | 16 Million colors to choose |
 | Color temperature 2700K~6500K |
 | 2.4G RF Remote control Control distance 30m |
 | Support Amazon Alexa and google assistant control 2.4GHz Gateway is needed |
 | Dimmable Saturation control |
 | Beam Angle 160° |
 | Smartphone App control WiFi Box or 2.4GHz Gateway is needed |

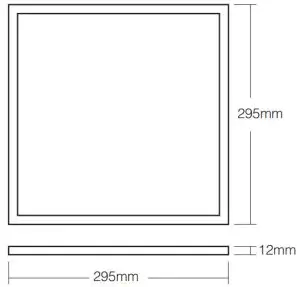

Parameters
| Model No.: FUTL03 Input: AC100~240V 50/60Hz Power Rating: 20W Working Temperature: -20~60 ℃ Color temperature: 2700~6500K Luminous Flux: 1400LM Light Efficiency: 70LM/W | CRI: >80 UGR: <19 Lifespan: 50000h Beam angle: 160° Remote Control Distance: 30m Product Weight: 840g |
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness | Speed | Saturation |
| 1 | Colors gradual change | Adjustable | Adjustable | Adjustable |
| 2 | White light gradual change | Unadjustable | ||
| 3 | RGB gradual change | Adjustable | ||
| 4 | Seven colors jump to change | |||
| 5 | Jump to change randomly | |||
| 6 | Red light gradual change +Flash 3 times | |||
| 7 | Greenlight gradual change +Flash 3 times | |||
| 8 | Blue light gradual change +Flash 3 times | |||
| 9 | White light gradual change +Flash 3 times | Unadjustable |
Auto-transmitting Diagram
One strip light driver can transmit the signals from the remote control to another strip light driver within 30m, as long as there is a strip light driver within 30m, the remote control distance can be limitless.

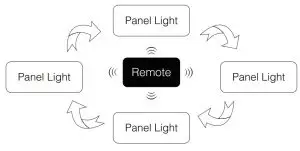

Auto-synchronization function
Different strip light drivers can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode and with the same speed, and within 30m distance.

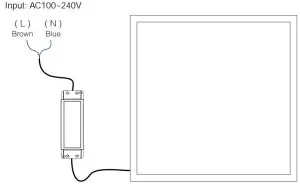

Connection Diagram
Link/Unlink

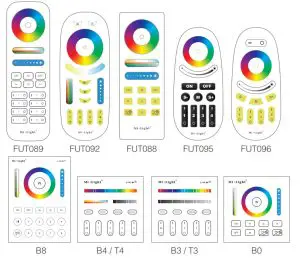

Compatible with these remote controls (Purchased separately)
NOTE:
Lighting can be working after linking with remote; for more details, pls read the remote instruction.
Attention
- Please read the instructions carefully, and make sure the environment is suitable for the installation.
- The product is only for indoor use.
- Please don’t install the panel light on the areas with hot steam and corrosive gas.
- A non-specialized person does not dismantle the panel light, otherwise, it will damage the panel light.
- Please do not use panel light around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
Maintenance Considerations
- Please switch off the power before cleaning the panel light.
- Please clean the panel light with dry duster cloth; do not use chemical and corrosive materials to clean the panel light.
Made in China
