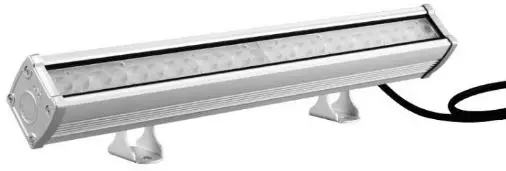

MiBOXER RL3-24 24W RGB+CCT LED Wall Washer Light
Model No.: RL3-24

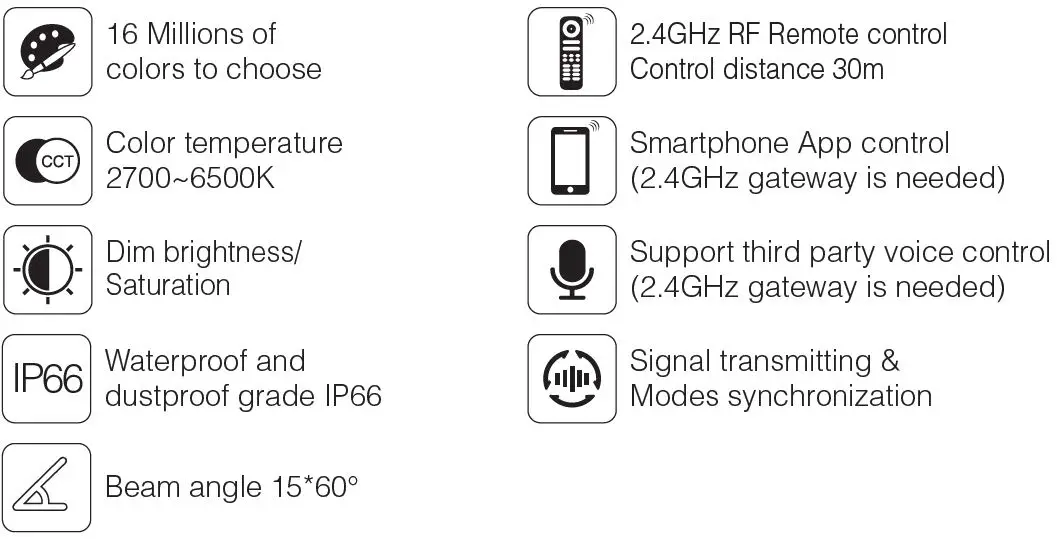

Features
The light housing is made of aluminum alloy with anodizing technology on the surface, and stalinite mirror surface with high light transmittance. Widely used on building, bridge, showcase,and landscape,etc.
Parameters
- Model No.: RL3-24
- Input Voltage: 100-240V~ 50/60Hz
- Power: 24W
- Working Temperature: -20~45°C
- Color Temperature: 2700~6500K
- Luminous Flux: 1600LM
- PF: >0.9 CRI: >80
- Lifespan: 50000h
- Beam AngIe: 15*60°
- illumination Distance: >15m
- IP Rate: IP66
- RF: 2.4GHz
- Control Distance: 30m

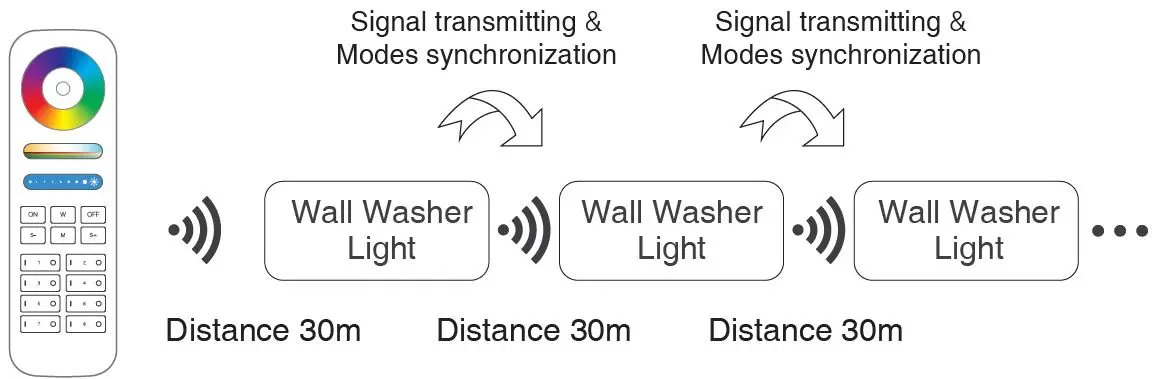

Signal transmitting
One lighting fixture can transmit the signals from the remote control to another lighting fixture within 30m, as long as there is a lighting fixture within 30m, the remote control distance can be limitless.
Modes synchronization
Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness / Saturation / Speed |
| 1 | Mardi gras |
Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat tuesday | |
| 8 | Party | |
| 9 | Slow color splash |

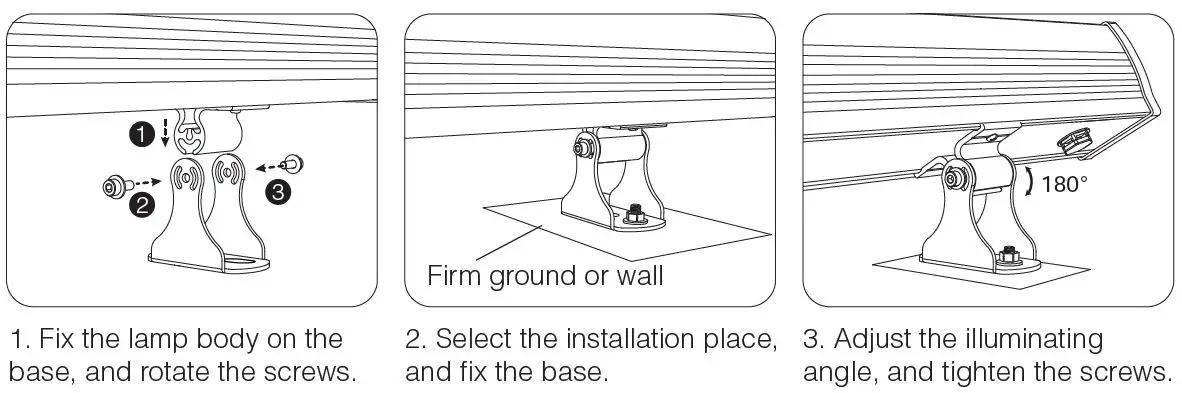

Installation Diagram

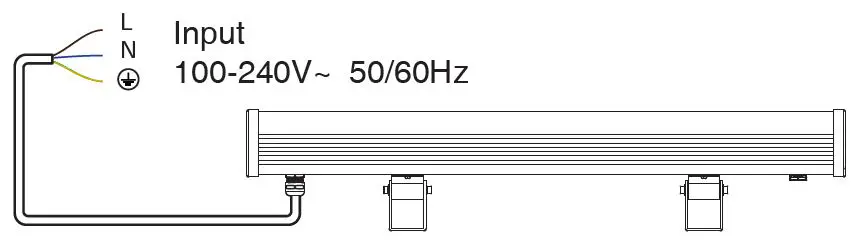

Connection Diagram
Link/Unlink

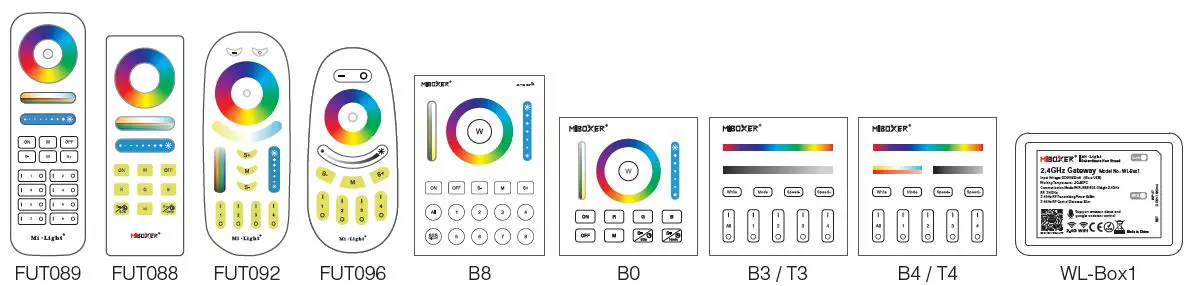

Lighting can be working after linking with remote; for more details, pls read the remote instruction.
Attention
- When installation, Please switch off power, and switch on power after assuring the correct wiring.
- The light is with waterproof and damp-proof design. Water proof rate is IP66; it can be working normally in the rain, but cannot work underwater.
- The working temperature is -20~45°C, please do not install the light on the area over 45°C to assure the lifespan.
Made in China
