Mi-Light
Subordinate New Brand
10/20/30/50/100W/200W RGB+CCT LED Floodlight
Model No.: FUTT02 / FUTT03 / FUTT04 / FUTT05 / FUTT06 / FUTT07 / FUTT08
Product Introduction
This product is made of an aluminum alloy bottom case and imported material covers with a fashionable appearance, waterproof and dustproof, energy-saving and environmental protection, etc features. Widely used on parks, apartments, gardens, and streets, etc.
 | RGB+CCT 16 Million of colors to choose |
 | Dim brightness/Saturation |
 | Color temperature 2700K~6500K |
 | Beam Angle 160° |
 | Waterproof and dustproof grade IP65 |
 | 2.4G RF wireless transmission technology |
 | Signal transmitting & Modes synchronization |
 | Remote control Control distance 30m |
 | Smartphone APP control (2.4GHz gateway is needed) |
 | Support third party voice control (2.4GHz gateway is needed) |

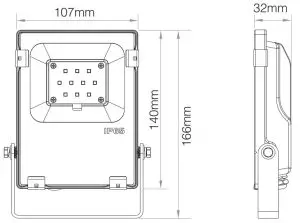

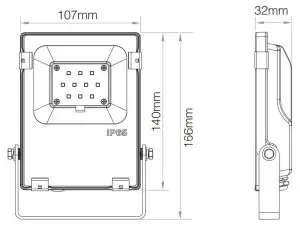

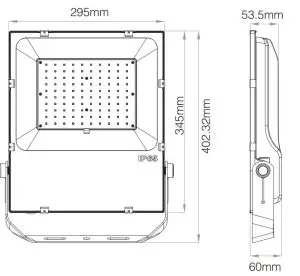

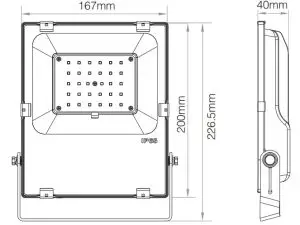

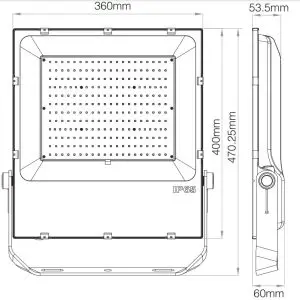

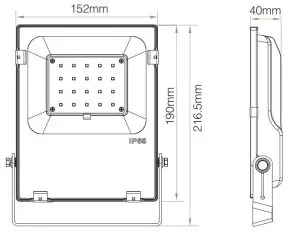

Technical Parameters
FUTT02 (50W)
| Input Voltage: AC100~240V 50/60Hz Power: 50W Working Temperature: -20~45°C Color Temperature: 2700K~6500K Luminous Flux: 4200LM Light Efficiency: 85LM/W Standby Power Consumption: 1.2W | CRI: >80 PF: >0.9 Beam Angle: 160° IP Rate: IP65 RF: 2.4GHz Control Distance: 30m Lifespan: 50000 hours |
FUTT03 (30W)
| Input Voltage: AC100~240V 50/60Hz Power: 30W Working Temperature: -20~45°C Color Temperature: 2700K~6500K Luminous Flux: 2800LM Light Efficiency: 85LM/W Standby Power Consumption: 1.2W | CRI: >80 PF: >0.9 Beam Angle: 160° IP Rate: IP65 RF: 2.4GHz Control Distance: 30m Lifespan: 50000 hours |
FUTT04 (20W)
| Input Voltage: AC100~240V 50/60Hz Power: 20W Working Temperature: -20~45°C Color Temperature: 2700K~6500K Luminous Flux: 1800LM Light Efficiency: 85LM/W Standby Power Consumption: 0.5W | CRI:>80 PF: >0.5 Beam Angle: 160° IP Rate: IP65 RF: 2.4GHz Control Distance: 30m Lifespan: 50000 hours |
FUTT05 (10W)
| Input Voltage: AC100~240V 50/60Hz Power: 10W Working Temperature: -20~45°C Color Temperature: 2700K~6500K Luminous Flux: 900LM Light Efficiency: 85LM/W Standby Power Consumption: 0.5W | CRI:>80 PF: >0.5 Beam Angle: 160° IP Rate: IP65 RF: 2.4GHz Control Distance: 30m Lifespan: 50000 hours |
FUTT06 (10W)
| Input Voltage: DC24V Power: 10W Working Temperature: -20~45°C Color Temperature: 2700K~6500K Luminous Flux: 900LM Light Efficiency: 85LM/W Standby Power Consumption: 0.5W | CRI:>80 Beam Angle: 160° IP Rate: IP65 RF: 2.4GHz Control Distance: 30m Lifespan: 50000 hours |
FUTT07 (100W)
| Input Voltage: AC100~240V 50/60Hz Power: 100W Working Temperature: -20~45°C Color Temperature: 2700K~6500K Luminous Flux: 8500LM Light Efficiency: 85LM/W Standby Power Consumption: 0.65W | CRI:>80 PF: >0.9 Beam Angle: 160° IP Rate: IP65 RF: 2.4GHz Control Distance: 30m Lifespan: 50000 hours |
FUTT08 (200W)
| Input Voltage: AC100~240V 50/60Hz Power: 200W Working Temperature: -20~45°C Color Temperature: 2700K~6500K Luminous Flux: 17000LM Light Efficiency: 85LM/W Standby Power Consumption: 0.96W | CRI:>80 PF: >0.95 Beam Angle: 160° IP Rate: IP65 RF: 2.4GHz Control Distance: 30m Lifespan: 50000 hours |
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness / Saturation / Speed |
| 1 | Mardi Gras | Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat Tuesday | |
| 8 | Party | |
| 9 | Slow Color Splash |
Connection Diagram

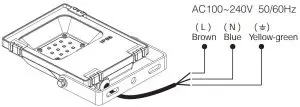

FUTT02 / FUTT03 / FUTT04 / FUTT05 / FUTT07 / FUTT08

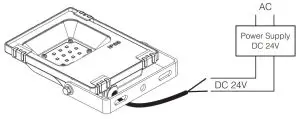

FUTT06
Input Voltage DC 24V, don’t need to distinguish polarity on the connection

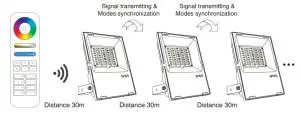

Signal transmitting
One lighting fixture can transmit the signals from the remote control to another lighting fixture within 30m, as long as there is a lighting fixture within 30m, the remote control distance can be limitless.
Modes synchronization
Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within 30m distance.
Link/Unlink
Compatible with these remote controls (Purchased separately)
NOTE:
Lighting can be working after linking with remote; for more details, pls read the remote instruction.
Attention
- When installing the lighting fixtures, pls switch off the power to make sure safety.
- The working power is a high voltage alternating current, so it must be far away from people and must with ground connection.
- As the power is large, the user must choose a suitable power cable when connecting.
- Non-professional users cannot dismantle the lighting fixtures directly, otherwise, it may cause fire and electric shock.
- Please do not use lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
- Users must be correct, strict, and solid to install the lighting fixtures; do not use the lighting fixtures on strenuous vibration areas.
Signal transmitting & Modes synchronization
