Subordinate New Brand
RGB+CCT LED Underground Light (Subordinate Lamp)
Model No.: SYS-RD1 / SYS-RD2
This product has to be connected to the “SYS-T1 Controller” or “SYS-PT1 Controller Box” to fulfill the remote control.
Features
The housing is made of die-cast aluminum and stainless steel; The lens is with high transmittance PC; the light color is smooth, with no diffused lighting and shadow. We adopt silicone seal protection; the waterproof rate is IP68. Connecting with the “SYS-T1 controller” or “SYS-PT1 controller box”, you can wireless control the 16 million color, color temperature, brightness, and saturation. Widely used on the plaza, park, garden, fountain, etc.
 | RGB+CCT 16 Millions of colors to choose |
 | Color temperature 2700K~6500K |
 | Dimmable Saturation control |
 | Waterproof and dustproof grade IP68 |
Dynamic Mode Sheet
| Number | Dynamic Mode…………..Brightness&Speed | |
| 1 | Mardi Gras | Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat Tuesday | |
| 8 | Party | |
| 9 | Slow Color Splash | |
Parameters

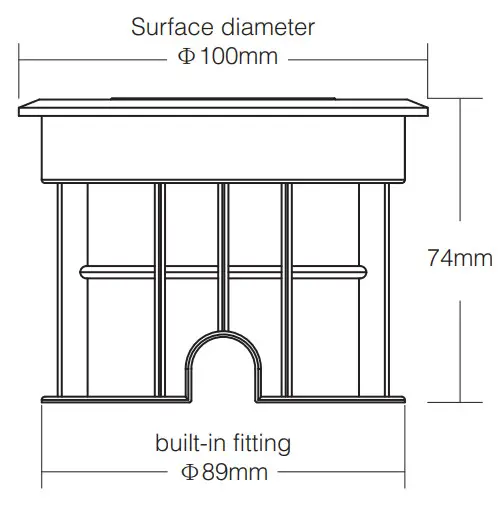

5W RGB+CCT LED Underground Light (Subordinate Lamp)
Model No.: SYS-RD1
Input Voltage: DC24V
Power: 5W
Working Temperature: -20~60 ℃
Color temperature: 2700K~6500K
Luminous Flux: 350LM
Light Efficiency: 70LM/W
CRI: >80
Lifespan: 50000h
Beam AngIe: 30°
IP Rate: IP68
Product Weight: 440g
Housing Material: AIuminum+stalinite

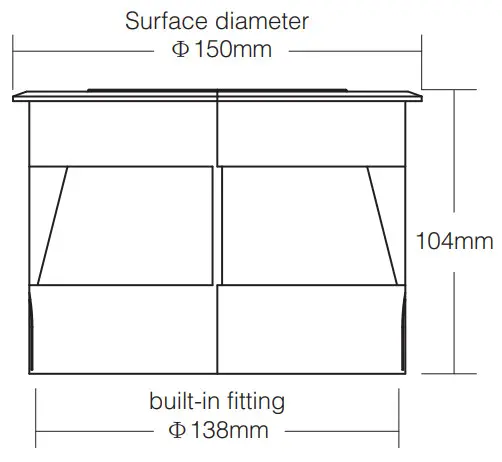

9W RGB+CCT LED Underground Light (Subordinate Lamp)
Model No.: SYS-RD2
Input Voltage: DC24V
Power: 9W
Working Temperature: -20~60 ℃
Color temperature: 2700K~6500K
Luminous Flux: 700LM
Light Efficiency: 80LM/W
CRI: >80
Lifespan: 50000h
Beam angle: 15°
IP Rate: IP68
Product Weight: 950g
Housing Material: AIuminum+stalinite

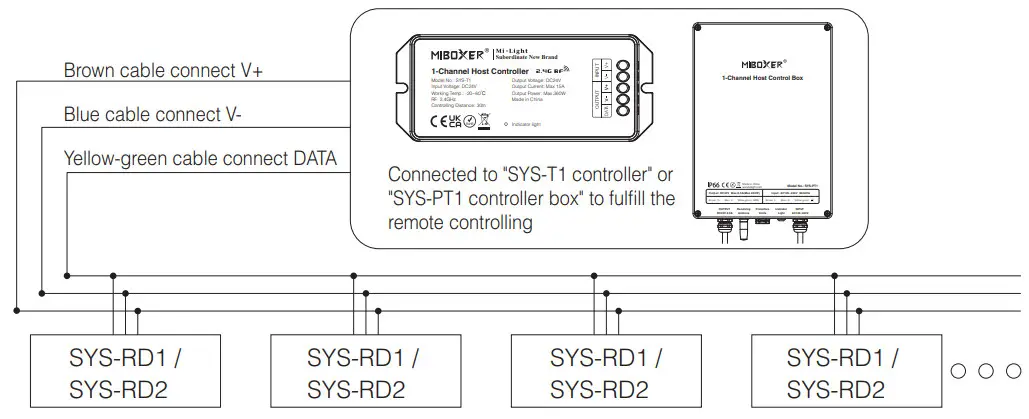

Connection Diagram
Note: The “SYS-T1 Controller” and “SYS-PT1 Controller Box” has to be purchased separately.
Note
When using “SYS-T1 controller” or “SYS-PT1 controller box”, you need to add “SYS-T2 1-channel signal amplifier” or “SYS-PT2 1-channel amplifier box” for below 3 situations.
- Connecting over 50pcs lights.
- Connected cable length over 300m.
- Output power over (SYS-T1: 360W ) / ( SYS-PT1: 220W ).

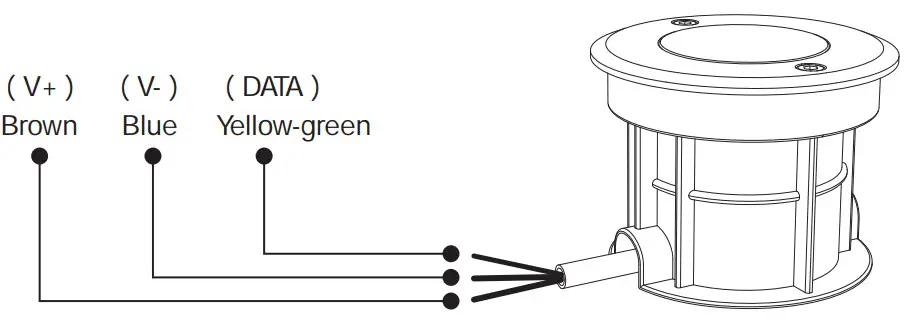

Input: DC24V
Attention
- Please check whether the input voltage is in accordance with the lighting working voltage, and please check the connection of both the cathode and anode.
- The working Voltage is DC24V, the lighting will be damaged if the voltage is higher than 24V.
- Non-professional users cannot dismantle the controller directly, Otherwise, it may damage the light.
Made in China
