Mi-Light
Subordinate New Brand
GU10 RGB+CCT LED Spotlight
Model No.: FUT103
Features
 | RGB+CCT 16 Millions of colors to choose |
 | Color temperature 2700K~6500K |
 | Dim brightness/Saturation |
 | 2.4G RF wireless transmission technology |
 | Signal transmitting & Modes synchronization |
 | Remote control Control distance 30m |
 | Smartphone APP control (2.4GHz gateway is needed) |
 | Support third party voice control (2.4GHz gateway is needed) |

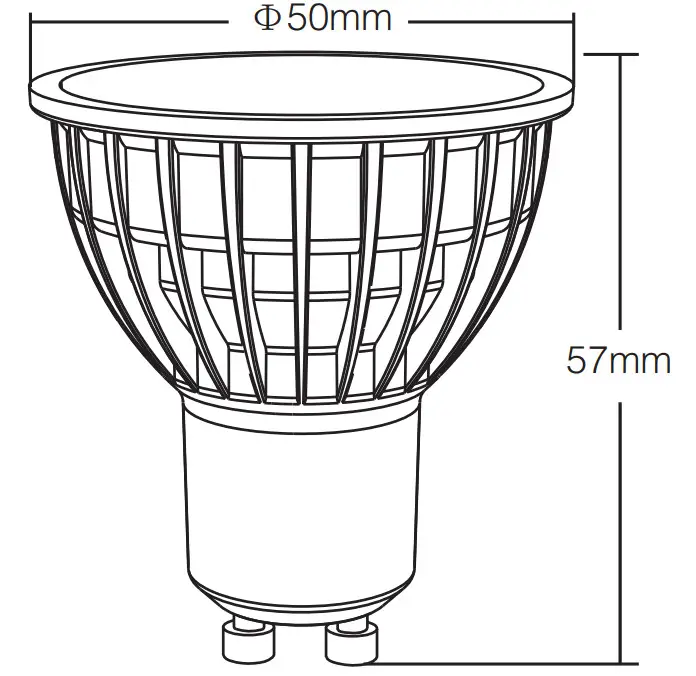

GU10 RGB+CCT LED Spotlight
| Model No.: FUT103 Power: 4W Voltage: 100-240V~ 50/60Hz Rated Current: 0.07A Working Temp.:-10~40°C Color Temp.: 2700K~6500K Luminous Flux: 250LM-280LM | Luminous Efficiency: 70LM/W CRI: >80 PF: 0.55 Lifespan: 50000h Beam Angle: 25° RF: 2.4GHz Control Distance: 30m Product Weight: 42g |
Instructions

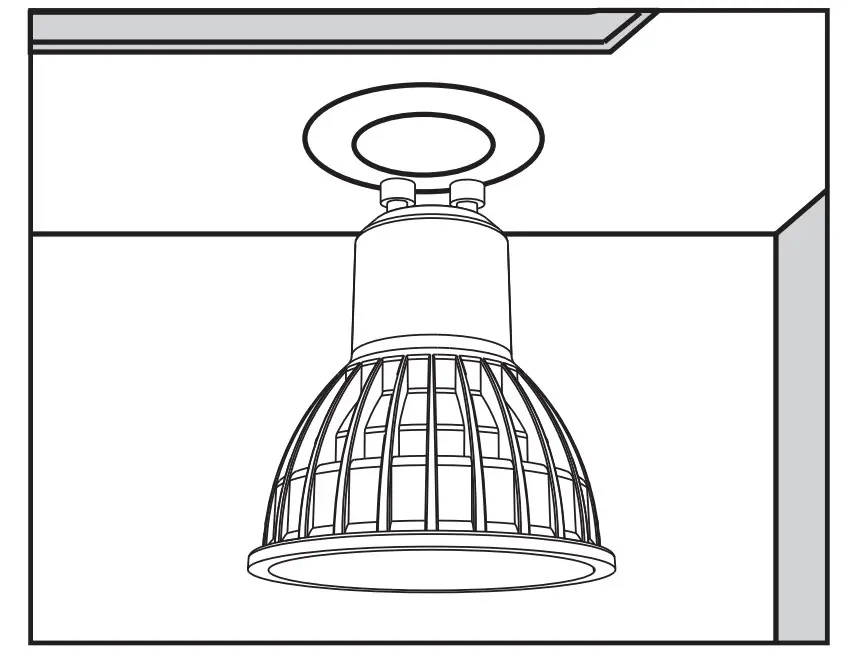

Step 1
Put the light bulb in the suitable lighting fixture.
NOTE:
For lamps with a weight significantly higher than that of the lamps for which they are a replacement, attention should be drawn to the fact that the increased weight may reduce the mechanical stability of certain luminaires and lamp holders and may impair contact-making and lamp retention.
Step 2: Link/Unlink

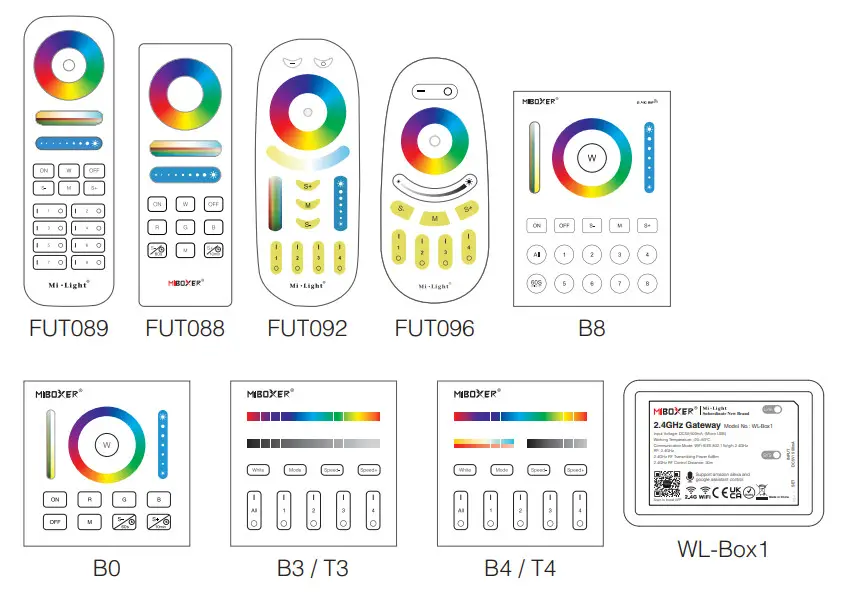

Compatible with these remote controls ( Purchase separately)
NOTE:
Light will work after linking with remote control; for more details, pls read the remote instruction.
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness /Saturation / Speed |
| 1 | Mardi Gras | Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat Tuesday | |
| 8 | Party | |
| 9 | Slow Color Splash |

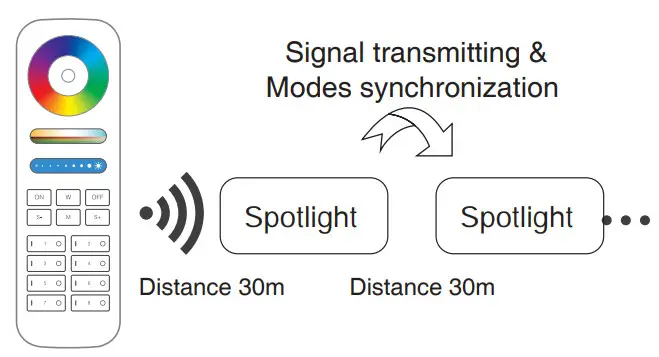

Signal transmitting
One lighting fixture can transmit the signals from the remote control to another lighting fixture within 30m, as long as there is a lighting fixture within 30m, the remote control distance can be limitless.
Modes synchronization
Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within 30m distance.
Attention
- When installing the lighting fixtures, pls switch off the power to make sure safety.
- Please check whether the input voltage supply is in accordance with the lighting fixtures.
- Non-professional users cannot dismantle the lighting fixtures directly, otherwise, it may cause fire and electric shock.
- Please do not use lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
 | Controller can not use in a humid area |
 | Can not connect with a dimmable electric circuit, please use remote to dim lighting |
Made in China
