Nekteck 35 Led Outdoor Solar Powered Spotlights User Manual

USER MANUAL
OUTDOOR SOLAR
POWERED SPOTLIGHTS

	Water Proof
	Heat Resistance

Light Sensor / Light Detection

35 LED

INTRODUCTION

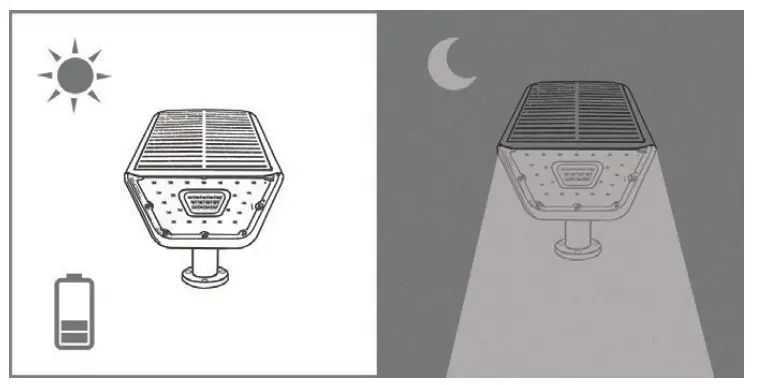

The solar panel auto detects light which is why it doesn’t turn on during the daytime. Once it starts charging, the conversion of solar light or energy to electricity takes place. The energy gets stored in the battery. Operating hours depend on the quality of sunlight and the number of charging hours. During nighttime or when the surrounding is dark, the unit will turn itself on.
The Solar Spotlight has two modes and you can switch to the dim light mode or bright light mode by pressing the back button.
The unit is multifunctional. It can be used as a lawn light or a wall light.

INSTALLATION

Choose dim mode or bright mode using the back button. Then install the solar product in an area where it gets direct sunlight, please make sure there is NO shadow or obstruction above the solar panel.
Ground Inserted

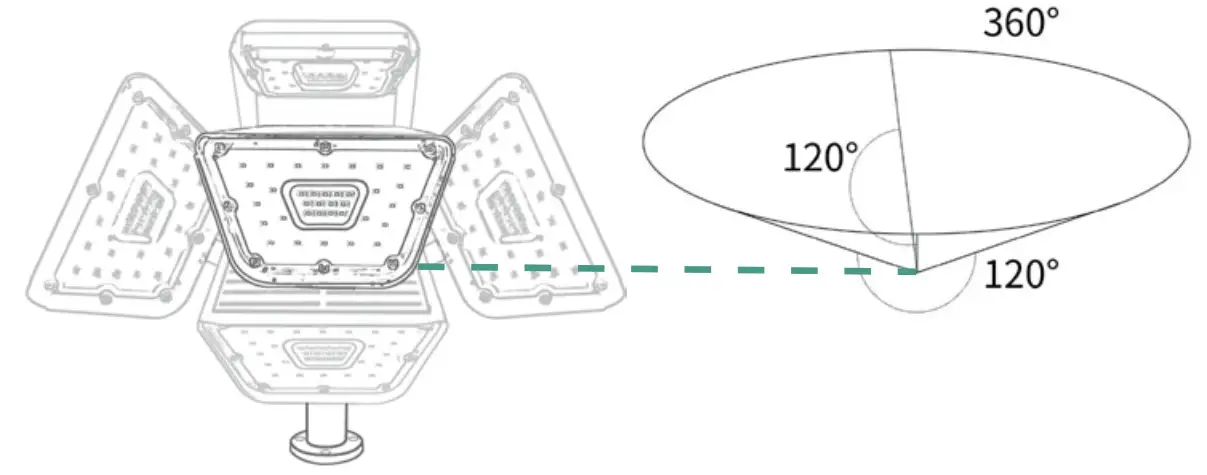

1. Connect the ground stake to the spotlight and adjust the solar panel and LED light angle loosening and tightening the knob screw to get enough sunlight.
2. Insert the whole light into the ground vertically.

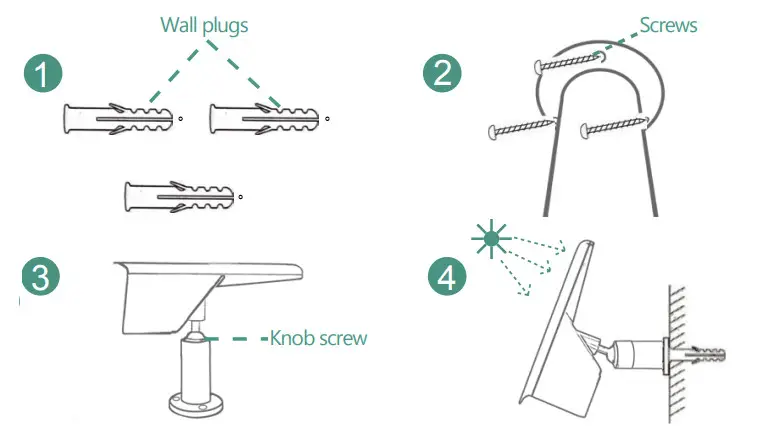

Wall Mounted

1. Using a drill bit, punch three holes on a wall where you will install the unit. It should be exposed to sunlight.
2. Insert the included wall plugs into the holes.
3. Insert and twist the screws into the screw holes of light’s holder and fix it to the wall.
4. Adjust the knob screw to get the perfect position or angle of the light and the solar panel.

OPERATION

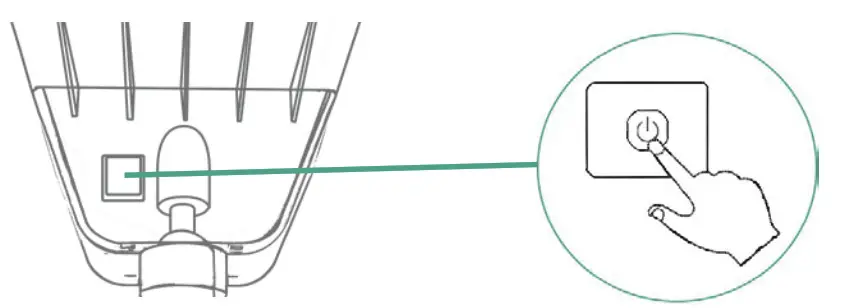

The soar-powered spotlight default mode is OFF. Press the back button to switch to your preferred mode when using the spotlight.

1. Low Light Mode: Press the button once then the spotlight will change to the Low Light mode. In this mode, the spotlight will charge under the sunlight and it will automatically light up dim light in darkness or at night.
2. High Light Mode: From the Low Light mode, press the button once again and the spotlight will charge under the sunlight and it will automatically light up bright light in darkness or at night.
3. OFF Mode: From the High Light Mode, press the button once again and the spotlight will power off.

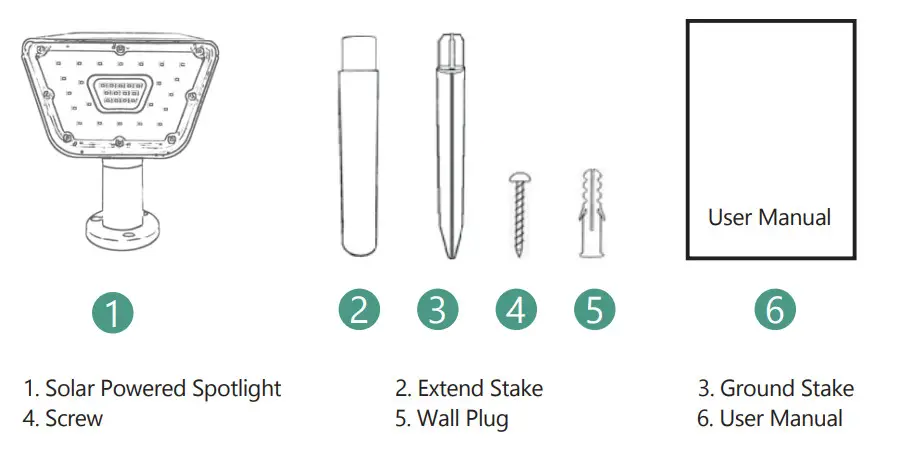

WHAT’S IN BOX ( PACKAGE INCLUSIONS )

NOTE

• It is recommended to charge the spotlight under direct sunlight for 1-2 days before using it to make sure the spotlight has enough power.

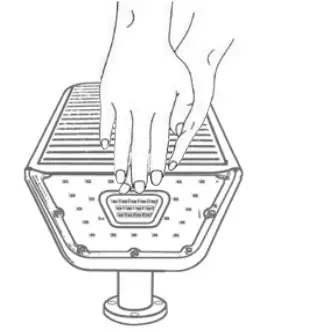

• To assess if the product functions or operates well, please turn it on by pressing the back button, then cover the solar panel with your hand or any dark cloth during the day.  You may also bring it in a dark to test the light or change the settings (dark or bright mode)

• Please make sure to install the solar product in an area where there is enough direct sunlight.
  Avoid shadow or obstruction above the solar panel.
• When the switch is at the “LOW” state, light intensity is weaker. When the switch is at the “High” state, the light intensity is stronger.
• Charge the solar product by placing it under direct sunshine for at least 8 hours.
• Illumination time after fully charged: about 8 hours at “HIGH” level, 16 hours at “LOW” level.

MAINTENANCE

1. Keep the solar panel clean.
2. Do not disassemble the product by yourself. This may damage the product.
3. Keep the product away from fire, water or anything that could affect the performance of the lights.

SPECIFICATIONS

Solar panel: 5V 2W Battery: 3.7V 2200mAh
LED: 35pcs, 2835 type
Waterproof level: IP65

LIGHT MODES

OFF: No light
HIGH: Bright light mode
LOW: Dim light mode

WARRANTY

For questions or issues with the product, please contact [email protected]

http://www.nekteck.com
Nekteck, Inc
Web: www.nekteck.com
E-mail: [email protected]
