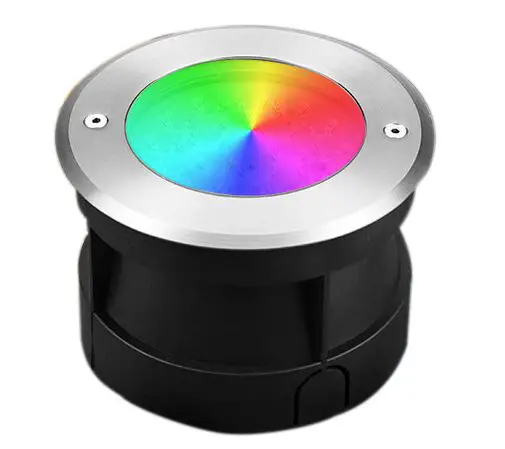

MiBOXER RD-9L 9W RGB+CCT LED Underground Light
9W RGB+CCT LED Underground Light (LoRa 433MHz)
Model No.: RD-9L

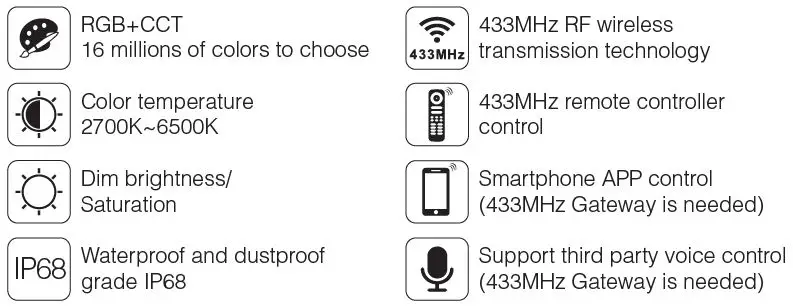

Product Features
We use LoRa modem technology to fulfill the super long-distance controlling. It’s controlled by our 433MHz remote control or 433MHz Gateway for smartphone control. The lamp is with Red, Green, blue, cool white and warm white LED chips to fulfill the color changing, brightness dimming and dynamic mode controlling. Easy operation.
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness & Speed |
| 1 | Mardi gras |
Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat tuesday | |
| 8 | Party | |
| 9 | Slow color splash |
Parameters
Model No.: RD-9L
Input: AC12V / DC12V~24V
Power: 9W
Working Temperature: -20~45°C Color Temperature: 2700K~6500K Luminous Flux: 600LM
Light Efficiency: 70LM/W
CRI: >80
Lifespan: 50000h
Beam AngIe: 15°
IP Rate: IP68
RF: 433MHz (LoRa spread spectrum)

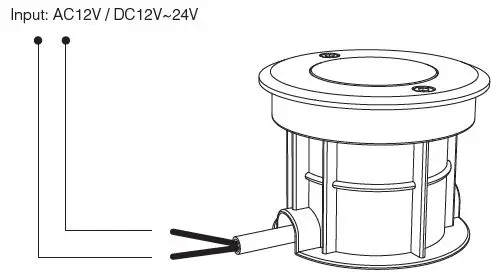

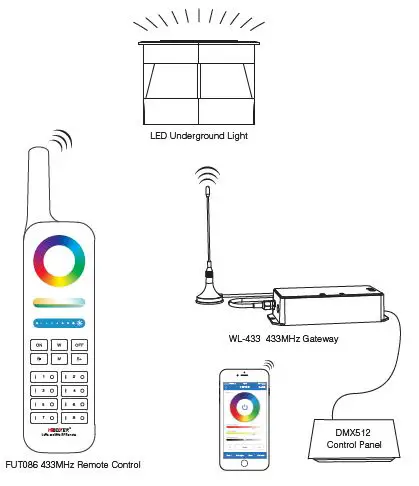

Connection Diagram
Input: AC12V / DC12V~24V
Link/Unlink
Compatible with “FUT086 remote control” and “WL-433 433MHz gateway” (Purchased separately)
Warning
Lighting can be working after linking with remote; for more details, pls read the remote instruction.
Switch-OFF to change color instruction
| Switch OFF(for 5 seconds); Switch-ON again | Switch-OFF (For 5-10 seconds); Switch ON again | Switch-OFF ( for over 10 seconds); Switch ON again |
| Switch the colors and dynamic modes in turn | ||
| 1. Static red 9. Mardi gras 2. Static green 10. Automatic color change 3. Static blue 11. Sam 4. Static yellow 12. Gemstone 5. Static cyan 13. Twilight 6. Static purple 14. American 7. Static cool white 15. Fat tuesday 8. Static warm white 16. Party 17. Slow color splash |
Static red |
Status before Switch OFF |
Attention
- Please check whether the input voltage supply is in accordance with the lighting fixtures, and please check the connection of both the cathode and anode.
- The working voltage is DC24V, the light will be damaged if the voltage is higher than DC24.
- Non-professional user cannot dismantle the light directly, otherwise it may damage the it.
- The working temperature is -20~45°C.
- Please do not use light around the mental area and high magnetic field, otherwise, the control distance willbe affected seriously.
