Mi-light
Subordinate New Brand
40W RGB+CCT Panel Light
Model No: FUTL01 / FUTL02
Features
40W RGB+CCT Panel Light is made of Aluminum Alloy+LGP+diffuser plate. It’s with full-sealed design with anti-moisture and anti-mosquito. Beam angle is 160 degree; The light is smooth without flickering,flare and dark space. Widely used on hotel, restaurant, exhibition center and office, etc.
Parameters
 | 16 Million colors to choose |
 | Color temperature 2700K~6500K |
 | Dim brightness/ Saturation |
 | Beam Angle 160° |
 | 2.4G RF wireless transmission technology |
 | Remote control Control distance 30m |
 | Smartphone APP control (2.4GHz gateway is needed) |
 | Support third party voice control (2.4GHz gateway is needed) |
Parameters
| Model No.: FUTL01 / FUTL02 input Voltage: AC180~240V 50/60Hz Power: 40W Working Temperature: -20~60°C Color Temperature: 2700K~6500K Luminous Flux: 2800LM Light Efficiency: 70LM/W | UGR: <19 CRI: >80 PF: >0.9 Lifespan: 50000h Beam angle: 160° RF: 2.4GHz Remote Control Distance: 30M |

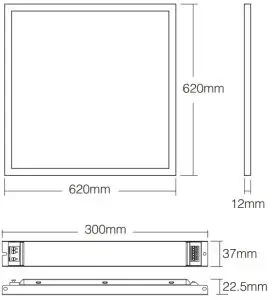

Product Size:
Model No: FUTL01
Product Weight: 3.05kg
Model No: FUTL02
Product Weight: 3.37kg
Connection Diagram
Link/Unlink
Compatible with these remote controls (Purchased separately)
Lighting can be working after linking with remote; for more details, pls, read the remote instruction.
Dynamic Mode Sheet
Number | Dynamic Mode | Brightness | Speed | Saturation |
| 1 | Colors gradual change | Adjustable | Adjustable | Adjustable |
| 2 | White light Gradual change | Unadjustable | ||
| 3 | RGB gradual change | Adjustable | ||
| 4 | Seven colors jump to change | |||
| 5 | Jump to change randomly | |||
| 6 | Red light gradual change +Flash 3 times | |||
| 7 | Greenlight gradual change +Flash 3 times | |||
| 8 | Blue light gradual change +Flash 3 times | |||
| 9 | White light gradual change +Flash 3 times | Unadjustable |

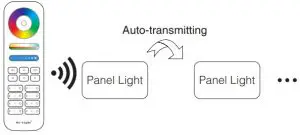

Auto-transmitting Diagram
One panel light can transmit the signals from the remote control to another panel light within 30m, as long as there is a panel light within 30m, the remote control distance can be limitless.

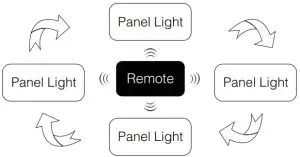

Auto-synchronization function
Different panel lights can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode and with the same speed, and within 30m distance.
Attention
- Please read the instructions carefully, and make sure the environment is suitable for the installation.
- The product is only for indoor use.
- Please don’t install the lighting fixtures on the areas with hot steam and corrosive gas.
- Please do not use the lighting fixtures in the place with widely range metal area or strong electromagnetic waves nearby, otherwise, the remote distance will be seriously affected.
- A non-specialized person does not dismantle the lighting fixtures, otherwise, it will damage the lighting fixtures.
Maintenance Considerations
- Please switch off the power before cleaning the lighting fixtures
- Please clean the lighting fixtures with a dry duster cloth; do not use chemical and corrosive materials to clean the lighting fixtures.
Made in China
