Mi-Light
Subordinate New Brand
18W RGB+CCT LED Linear Light
Model No.: LL1-18
Features
The case is made of PC material. Lampshade and lamp body are integrally formed, with anti-fire, waterproof, dustproof, anti-corrosive, and anti-UV function.
The appearance is simple and stylish.
 | RGB colors to choose |
 | Color temperature 2700K~6500K |
 | Dim brightness/Saturation |
 | Waterproof and dustproof grade IP66 |
 | Beam angle 140° |
 | 2.4GHz RF Remote control Control distance 30m |
 | Smartphone APP control (2.4GHz gateway is needed) |
 | Support third party voice control (2.4GHz gateway is needed) |
 | Signal transmitting & Modes synchronization |

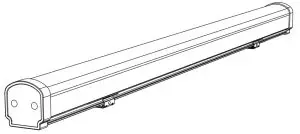

Parameters
| Model No.: LL1-18 Input Voltage: AC100~240V 50/60Hz Color Temp.: 2700K~6500K Luminous Flux: 1900LM Luminous Efficiency: 105LM/W CRI: >80 | Working Temp.: -20~45°C Beam Angle: 140° RF: 2.4GHz Control Distance: 30m IP Rate: IP66 Made in China |
 |  |

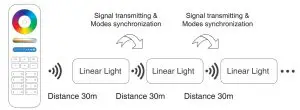

Signal transmitting
One lighting fixture can transmit the signals from the remote control to another lighting fixture within 30m, as long as there is a lighting fixture within 30m, the remote control distance can be limitless.
Modes synchronization
The different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within 30m distance.
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness /Saturation / Speed |
| 1 | Mardi gras | Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat Tuesday | |
| 8 | Party | |
| 9 | Slow color splash |
Connection Diagram

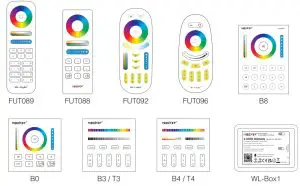

Link/Unlink
Compatible with these remote controls (Purchased separately)
Lighting can be working after linking with remote; for more details, pls read the remote instruction.
Attention
- When installation, Please switch off the power, and switch on power after assuring the correct wiring.
- The light is with waterproof and damp-proof design. The waterproof rate is IP66; it can be working normally in the rain, but cannot work underwater.
- The working temperature is -20~45°C, please do not install the light on the area over 45°C to assure the lifespan.
Signal transmitting & Modes synchronization
