Miboxer Futc08 6w Rgb+cct Led Garden Light (dc24v) User Guide

6W RGB+CCT LED Garden Light (DC24V)
Model No.: FUTC08

Features

	RGB+CCT 16 Millions of colors to choose		Smartphone APP control (2.4GHz gateway is needed)
	Dim brightness/ Saturation		Support third party voice control (2.4GHz gateway is needed)
	Dim brightness/ Saturation		Waterproof and dustproof grade IP66
	2.4G RF wireless transmission technology		Signal transmitting & Modes synchronization
	Remote control Control distance 30m		Beam angle 25° Illumination distance more than 10m

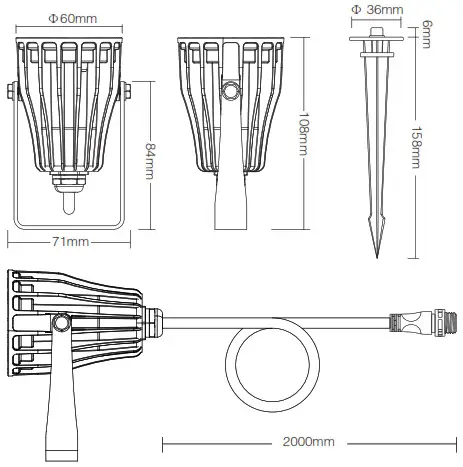

Parameters

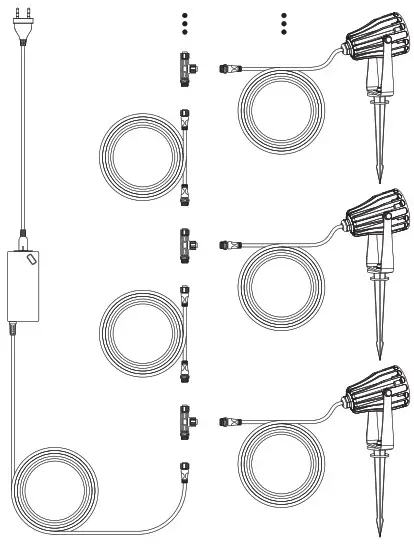

Connection Diagram

Link/Unlink

Compatible with these remote controls (Purchased separately)

NOTE:
Lighting can be working after linking with remote; for more details, pls read the remote instruction.

Signal transmitting

One garden light can transmit the signals from the remote control to another garden light within 30m, as long as there is a garden light within 30m, the remote control distance can be limitless.

Modes synchronization

Different garden light can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.

Dynamic Mode Sheet

Attention

1. When install the lighting fixtures, pls switch off the power to make sure the safety.
2. Please check whether the input voltage supply is in accordance with the lighting fixtures.
3. Non-professional user cannot dismantle the lighting fixtures directly, otherwise it may damage the lighting fixtures.
4. Please do not use lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
5. Users must be correct, strict and solid to install the lighting fixtures; do not use the lighting fixtures on strenuous vibration area.
6. The lighting fixtures will be heating on working, pls do not cover the lighting housing.

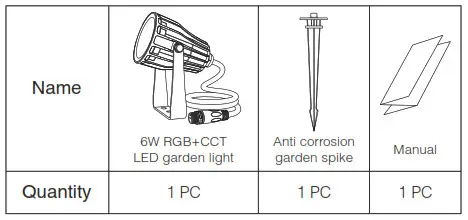

Packing list

Made in China
