MIBOXER FUTC01 RGB+CCT Smart LED Garden Light
Features
- RGB+CCT
- 16 Millions of colors to choose
- Color temperature
- 2700K~6500K
- Dim brightness/
- Saturation
- 2.4G RF wireless transmission technology
- Signal transmitting &
- Modes synchronization
- Remote control
- Control distance 30m
- Smartphone APP control
- (2.4GHz gateway is needed)
- Support third party voice control (2.4GHz gateway is needed)
- Waterproof and dustproof grade IP66
IP Rate: IP66

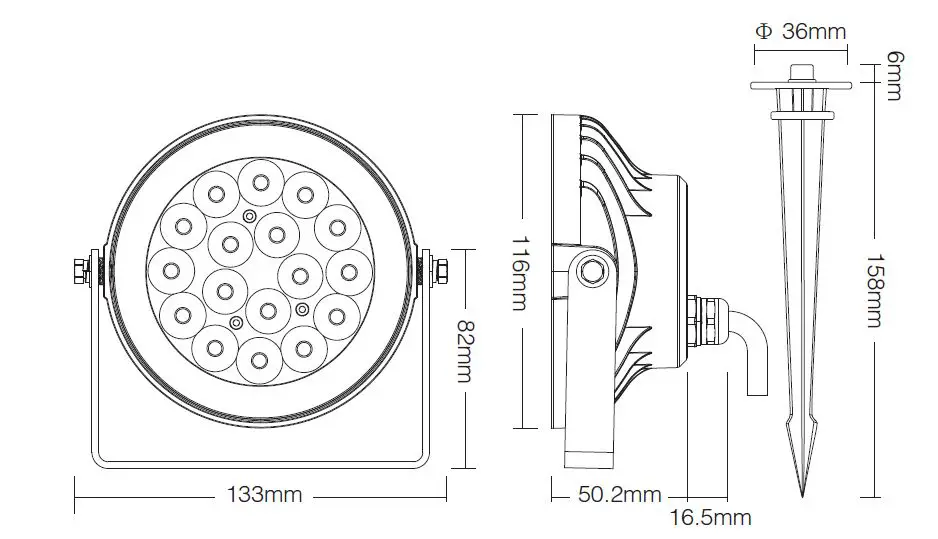

RGB+CCT Smart LED Garden Light
Model No.:
- FUTC01
- FUTC02
- FUTC03
- FUTC05
- FUTC09
Parameters
| Model No. | FUTC01 | FUTC02 |
| Input Voltage | DC 24V | 100-240V~ 50/60Hz |
| Rated Current | 0.41A | 0.18A |
| Power | 9W | 9W |
| PF | —— | >0.5 |
| Working Temp. | -20~45°C | -20~45°C |
| Color Temp. | 2700K~6500K | 2700K~6500K |
| CRI | >80 | >80 |
| Luminous Flux | 900LM | 900LM |
| Light Efficiency | 100LM/W | 100LM/W |
| Lifespan | 50000 hours | 50000 hours |
| Beam Angle | 15° | 15° |
| Illumination Distance | >10m | >10m |
| IP Rate | IP66 | IP66 |
| RF | 2.4GHz | 2.4GHz |
| Control Distance | 30m | 30m |
| Model No. | FUTC03 |
| Input Voltage | 100-240V~ 50/60Hz |
| Rated Current | 0.26A |
| Power | 15W |
| PF | >0.5 |
| Working Temp. | -20~45°C |
| Color Temp. | 2700K~6500K |
| CRI | >80 |
| Luminous Flux | 1500LM |
| Light Efficiency | 100LM/W |
| Lifespan | 50000 hours |
| Beam Angle | 15° |
| Illumination Distance | >10m |
| IP Rate | IP66 |
| RF | 2.4GHz |
| Control Distance | 30m |
| Model No. | FUTC05 |
| Input Voltage | 100-240V~ 50/60Hz |
| Rated Current | 0.42A |
| Power | 25W |
| PF | >0.5 |
| Working Temp. | -20~45°C |
| Color Temp. | 2700K~6500K |
| CRI | >80 |
| Luminous Flux | 2100LM |
| Light Efficiency | 85LM/W |
| Lifespan | 50000 hours |
| Beam Angle | 15° |
| Illumination Distance | >15m |
| IP Rate | IP66 |
| RF | 2.4GHz |
| Control Distance | 30m |
| Model No. | FUTC09 |
| Input Voltage | 100-240V~ 50/60Hz |
| Rated Current | 0.35A |
| Power | 18W |
| PF | >0.5 |
| Working Temp. | -20~45°C |
| Color Temp. | 2700K~6500K |
| CRI | >80 |
| Luminous Flux | 1500LM |
| Light Efficiency | 85LM/W |
| Lifespan | 50000 hours |
| Beam Angle | 25° |
| IP Rate | IP66 |
| RF | 2.4GHz |
| Control Distance | 30m |

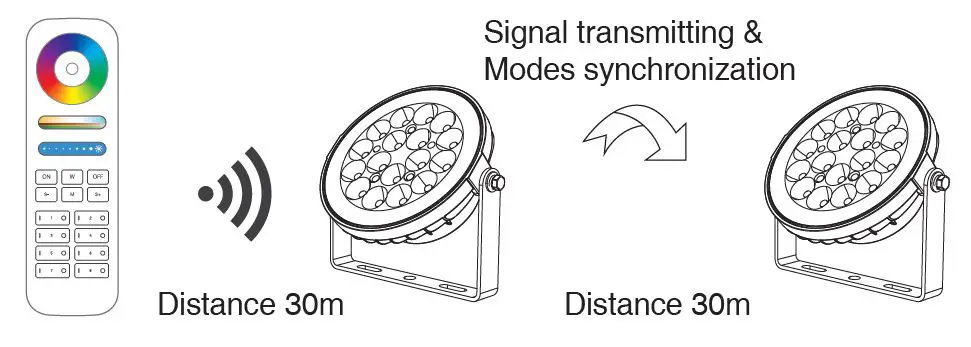

Signal transmitting
One lighting fixture can transmit the signals from the remote control to another lighting fixture within 30m, as long as there is a lighting fixture within 30m, the remote control distance can be limitless.
Modes synchronization
Different lighting fixture can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.
Connection diagram

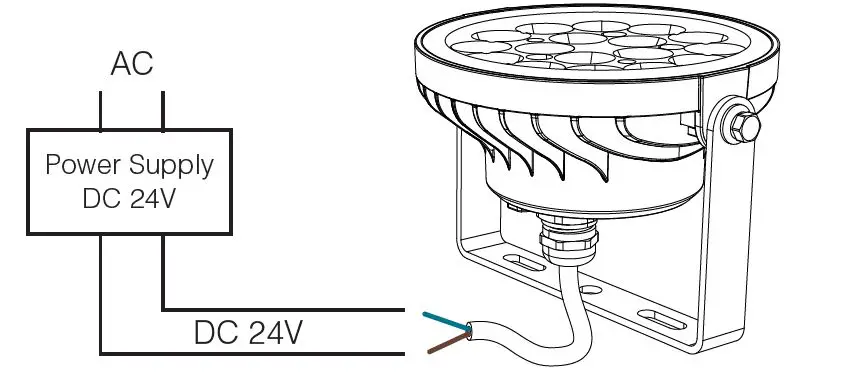

FUTC01
Input Voltage DC 24V, don’t need to distinguish polarity on the connection

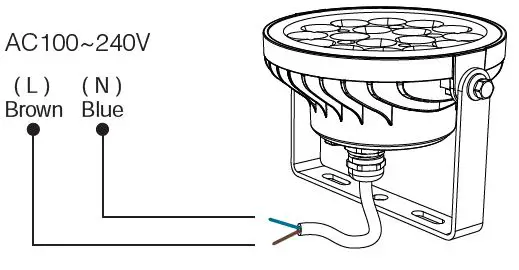

FUTC02

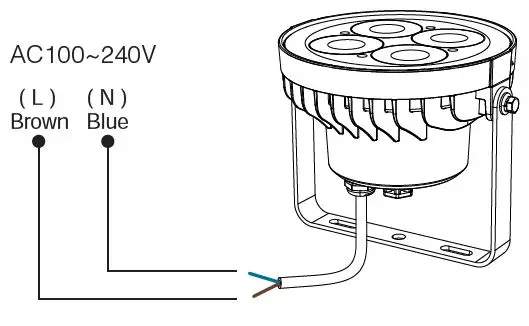

FUTC03 / FUTC05
FUTC09
Link/Unlink

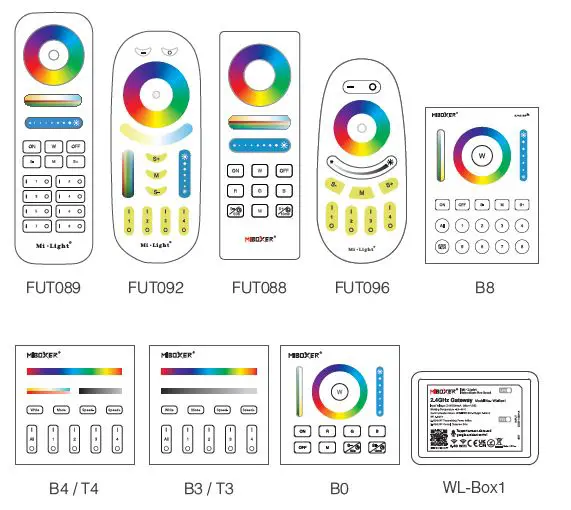

Compatible with these remote controls (Purchased separately)
NOTE:
Light will work after linking with remote control; for more details, pls read the remote instruction.
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness / Saturation / Speed |
| 1 | Mardi Gras | Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat Tuesday | |
| 8 | Party | |
| 9 | Slow Color Splash |
Attention
- When install the lighting fixtures, pls switch off the power to make sure the safty.
- Please check whether the input voltage supply is in accordance with the lighting fixtures, and please check the connection of both the cathode and anode.
- Non-professional user cannot dismantle the lighting fixtures directly, otherwise, it may cause fire and electric shock.
- Please do not use lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
- Users must be correct, strict and solid to install the lighting fixtures; do not use the lighting fixtures on strenuous vibration area.
- The lighting fixtures will be heating on working, pls do not cover the lighting housing.
