RGB LED Controller (Model No.: FUT037S)
RGBW LED Controller (Model No.: FUT038S)

Features

The controller adopts the widely used 2.4GHz wireless technology with the features of low power consumption, long signal transmitting, and strong anti-interference, etc. The controller has an auto-transmitting and auto-synchronizing function. Widely used on the controlling of hotel lighting and home lighting.

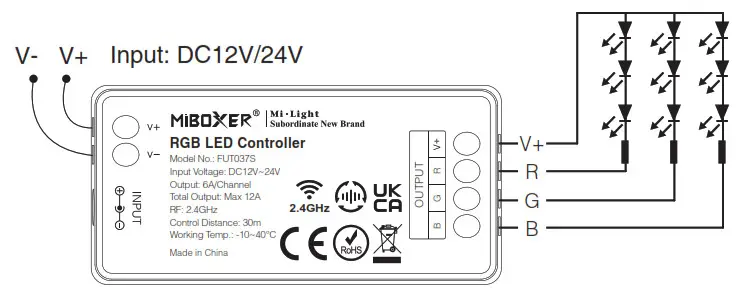

RGB LED Controller
Model No.: FUT037S
Working Voltage: DC12V~24V
Output: 6A/Channel
Total Output: Max 12A
Output Connection: Common anode
RF: 2.4GHz
Max Controlling Distance: 30m
Working Temperature: -10~40°C

	16 Million colors to choose
	Mix Red, Green, and Blue light to adjust color temperature
	Dim brightness/saturation
	2.4G RF wireless transmission technology
	Remote control Control distance 30m
	Smartphone APP control (2.4GHz gateway is needed)
	Support third party voice control (2.4GHz gateway is needed)

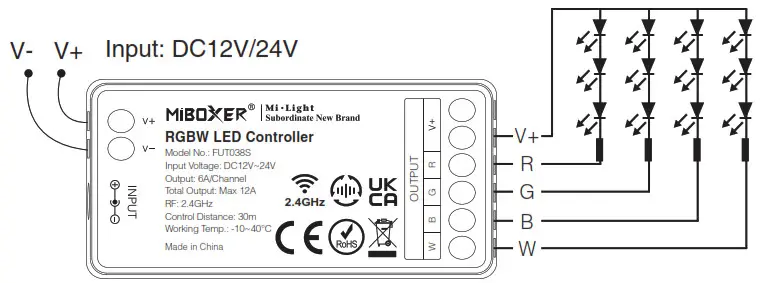

RGBW LED Controller
Model No.: FUT038S
Working Voltage: DC12V~24V
Output: 6A/Channel
Total Output: Max 12A
Output Connection: Common anode
RF: 2.4GHz
Max Controlling Distance: 30m
Working Temperature: -10~40°C

	16 Million colors to choose
	Dim brightness /saturation
	2.4G RF wireless transmission technology
	Remote control Control distance 30m
	Smartphone APP control (2.4GHz gateway is needed)
	Support third party voice control (2.4GHz gateway is needed)

Dynamic mode table 1 (default)

Dynamic mode table 2 (need to switch manually)

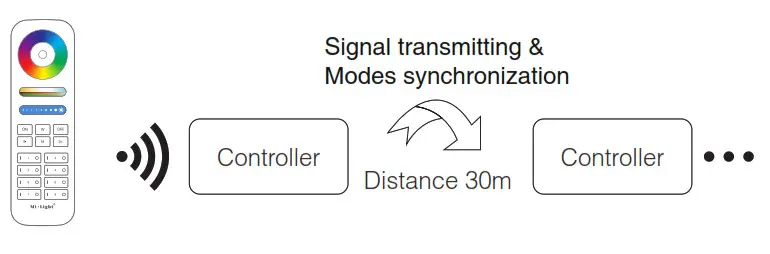

Signal transmitting

One strip controller can transmit the signals from the remote control to another controller within 30m, as long as there is a strip controller within 30m, the remote control distance can be limitless.

Modes synchronization

Different controllers can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within 30m distance.
The same dynamic mode, the same speed can be synchronized.

Link/Unlink

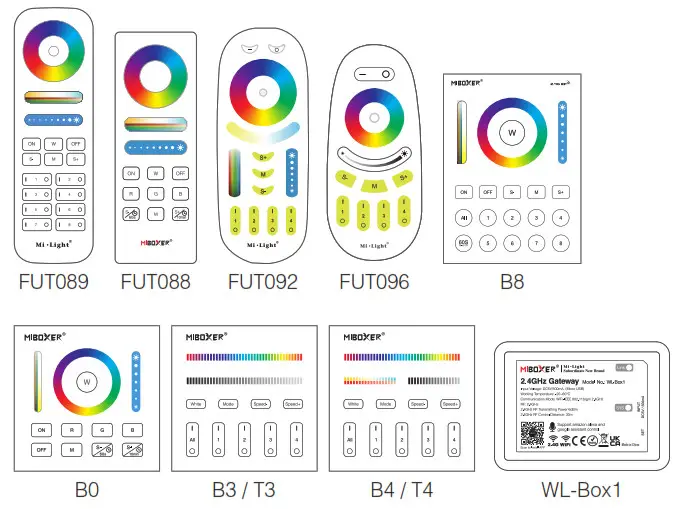

Compatible with these remote controls (Purchase separately)

Light will work after linking with remote control; for more details, pls read the remote instruction.

PWM high frequency / low-frequency switching

Switch to high frequency (8KHz): on the condition of turning on the light

1. Short press the “OFF” button of the remote control once;
2. Short press the “ON” button 5 times within 3 seconds, the white light blinks 2 times quickly, indicating successfully.

Switch to low frequency (500Hz): on the condition of turning off the light

1. Short press the “ON” button of the remote control once;
2. Short press the “OFF” button 5 times within 3 seconds, the white light blinks 2 times slowly, indicating successfully.

Dynamic mode table selection

Select dynamic mode table 1: The controller is powered off for 10 seconds and then powered on. Within 3 seconds, press the ” S+ ” button 5 times, the blue light blink 3 times slowly, indicating successfully.
Select dynamic mode table 2: The controller is powered off for 10 seconds and then powered on. Within 3 seconds, press the ” S- ” key 5 times, and the yellow light blink 3 times slowly, indicating successfully.

Attention

1. Please check whether the voltage of the power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise, the controller will be broken.
2. Please don’t connect wires with power on. Please turn on again only when it is in the right connection and no short circuit.
3. Please do not use the controller in a place with a widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.

Controller can not use in a humid area
