Dual White LED Controller (Model No.: FUT035S)
Single Color LED Controller (Model No.: FUT036S)

Features

The controller adopts the widely used 2.4GHz wireless technology with the features of low power consumption, long signal transmitting, and strong anti-interference, etc. The controller has auto-transmitting and auto-synchronizing functions. Widely used on the controlling of hotel lighting and home lighting.

Dual White LED Controller

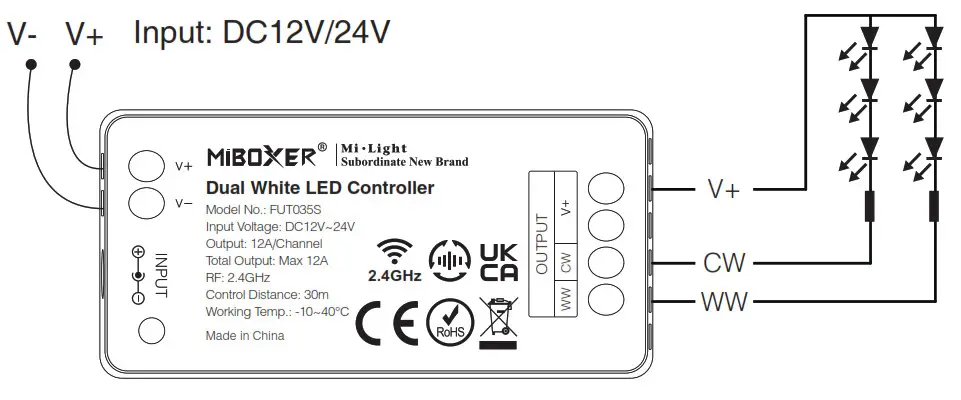

Model No.: FUT035S

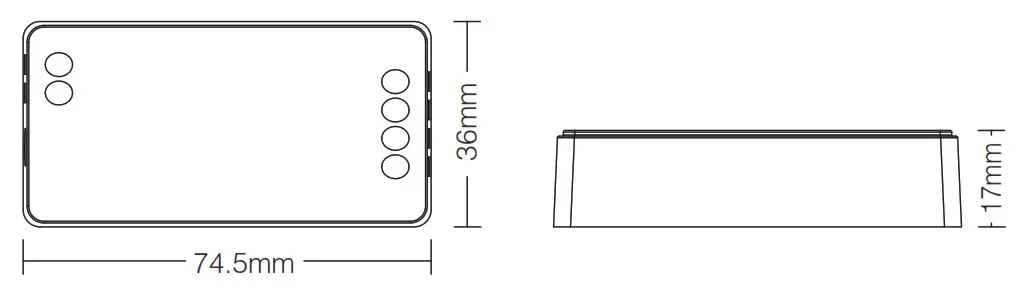

Working Voltage: DC12V~24V
Output: 12A/Channel
Total Output: Max 12A
Output Connection: Common anode
RF: 2.4GHz
Max Controlling Distance: 30m
Working Temperature: -10~40°C

Single Color LED Controller

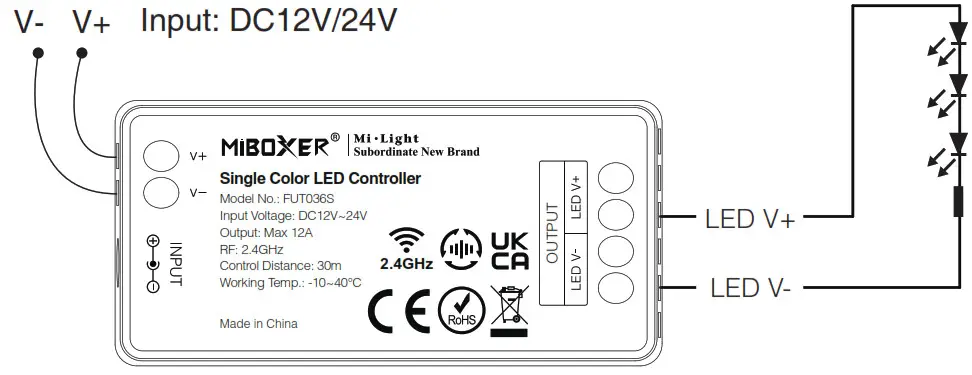

Model No.: FUT036S
Working Voltage: DC12V~24V
Output: Max 12A
Output Connection: Common anode
RF: 2.4GHz
Max Controlling Distance: 30m
Working Temperature: -10~40°C

Signal transmitting

One strip controller can transmit the signals from the remote control to another controller within 30m, as long as there is a strip controller within 30m, the remote control distance can be limitless.

Link/Unlink

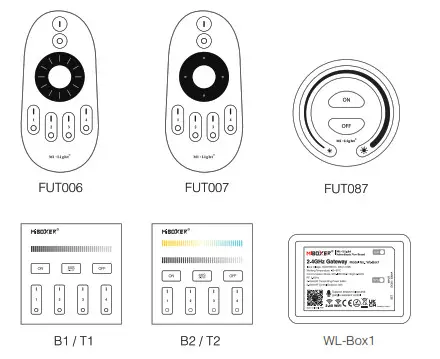

Compatible with these remote controls (Purchase separately)

 Light will work after linking with remote control; for more details, pls read the remote instruction.

PWM high frequency / low-frequency switching

Switch to high frequency (8KHz): on the condition of turning on the light

1. Short press the “OFF” button of the remote control once;
2. Short press the “ON” button 5 times within 3 seconds, the white light blinks 2 times quickly, indicating successfully.

Switch to low frequency (500Hz): on the condition of turning off the light

1. Short press the “ON” button of the remote control once;
2. Short press the “OFF” button 5 times within 3 seconds, the white light blinks 2 times slowly, indicating successfully.

Attention

1.  Please check whether the voltage of the power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise, the controller will be broken.
2. Please don’t connect wires with power on. Please turn on again only when it is in the right connection and no short circuit.
3. Please do not use the controller in a place with a wide range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.

Controller can not use in a humid area
Made in China
