Miboxer Fut038w Rgbw Led Controller User Manual

Mi-Light
Subordinate New Brand

Features

This product uses Wi-Fi + Bluetooth + 2.4 GHz wireless transmission technology, low power consumption, strong anti-interference ability. When Wi-Fi is disconnected, Bluetooth or remote can also directly connect and control equipment at close range.

RGBW LED Controller (FUT038W)

	16 Millions of colors to choose
	Dim brightness / Saturation / White mode
	2.4G RF wireless transmission technology
	WiFi wireless control support long-range control
	Auto-transmitting & Synchronization (only for remote control dimming)
	Device sharing
	Tap-to-Run & automation
	Timing setting / countdown turn on / off LED light
	Do not disturb mode
	Remote control Control distance 30m
	Smartphone app control
	Support third party voice control
	Group control
	Biorhythm
	Support music rhythm
	Sleep / wakeup plan
	Support scene customization

Dynamic Mode Table Selection (only for remote)
Select dynamic mode table 1: Turn power off for 10 seconds and then power on. Within 3 seconds, press the ” S+ ” button 5 times. The blue light should blink 3 times slowly, indicating
a successful switch.
Select dynamic mode table 2: Turn power off for 10 seconds and then power on. Within 3 seconds, press the ” S- ” button 5 times. The yellow light blink 3 times slowly, indicating a successful switch.

Dynamic Mode Table 1 (default)

Dynamic mode table 2 (need to switch manually)

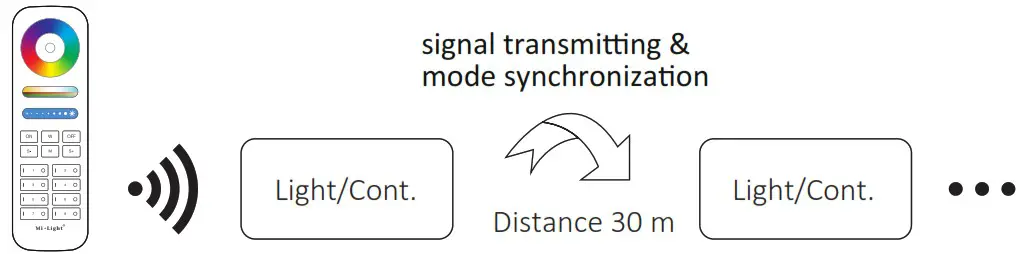

Auto-Transmitting & Synchronization (only for remote control)

1. Signal Transmitting
One light/controller can transmit the signals from the remote control to another light/controller within 30 m.

2. Modes synchronization
Different lights can synchronize when they are within transmitting distance provided they are using the same mode and speed.

Pairing / Unpairing Remote

Pairing Instructions

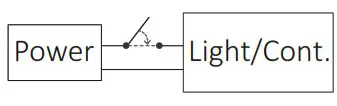

1 Switch off light or controller for 10 seconds. Then, switch light or controller on.	2 Press desired zone “|” button 3 times within 3 seconds of applying power.	3 Connected lights blink 3 times slowly to indicate pairing is successful.

If light does not blink slowly, then the pairing process failed. Switch off controller and follow steps again.

Unpairing Instructions

1 Switch off light or controller for 10 seconds. Then, switch light or controller on.	2 Press zone “|” button 5 times within 3 seconds of applying power.	3 Connected lights blink 10 times quickly to indicate unpairing is successful.

If light does not blink quickly, then the unpairing process failed. Switch off controller and follow steps again.

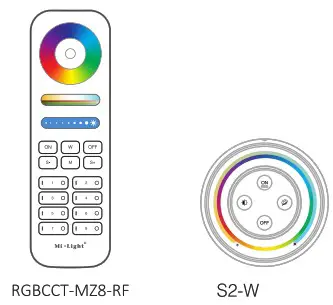

Compatible with these remote controls (purchased separately)

Smartphone App Control

1. Download and install [MiBoxer Smart] Search for [MiBoxer Smart] in Apple or Google store or scan following QR code to download and install the app.
   Click ” Register ” button to create account when using it for the first time.
   https://miboxer.com/app/2.html
2. Network Configuration
   (1) Connect controller to power supply.
   (2) Confirm indicator light is flashing quickly (2 flashes per second), If indicator light isn’t in this state, there are two ways to enter it:
   ● Long press ” SET ” key until indicator light starts flashing quickly.
   ● Power controller off and on 3 times.
   (3) Connect phone with 2.4 GHz Wi-Fi network.

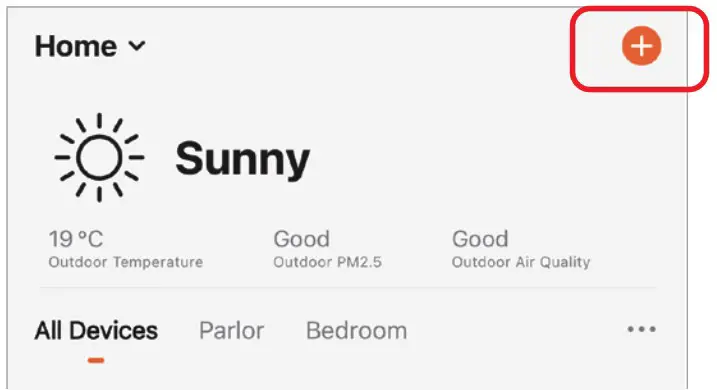

   (4) Open homepage of app and click ” + ” button at the upper right corner of page.
   MiBoxer Smart app:

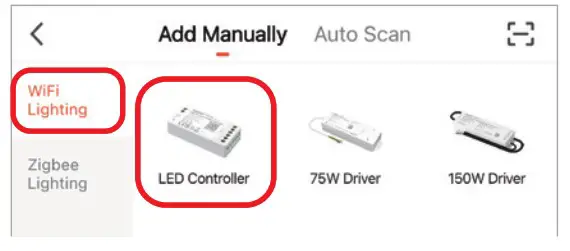

   (5) Click ” WiFi Lighting ” on the left side of page and then click ” LED Controller ”
   (6) Follow app prompts to complete configuration.

Scan QR code to watch video instruction

Smartphone app control (FUT035W-FUT039W video)	Third party voice control
https://miboxer.com/light/video/wifi_2.html	https://miboxer.com/light/video/voice_2.html

Attention

1. Please check whether the voltage of the power supply matches the controller and light, and please check the connec· on of both the cathode and anode before applying power.
2. Ensure supply power is off before performing any installation or wiring procedures.
3. Using the light/controller in the place with metal or concrete structures or electromagnetic interference will cause issues with communication and communication range.

Made in China
