Mi-Light
Subordinate New Brand
Features
Product adopt the widely used 2.4GHz wireless technology with the features of low power consumption, long signal transformation, and strong an-interference, etc. This product has auto-transmuting and auto-synchronizing functions. Widely used on the controlling of hotel lighting and home lighting.
 | 16 Millions of colors to choose |  | emote control Control distance 30m |
 | Color temperature adjustable |  | Smartphone app control (2.4GHz gateway is needed) |
 | Dim brightness / Saturation |  | Support third party voice control (2.4GHz gateway is needed) |
 | 2.4G RF wireless transmission technology |  | Signal transmitng & Modes synchronization |
 | DMX512 controllable (DMX512 LED transmiter is needed) |
Dynamic mode table selection
Select dynamic mode table 1: The light is powered off for 10 seconds and then powered on. Within 3 seconds, press the ” S+ ” button 5 times, the blue light blinks 3 times slowly, indicating successfully.
Select dynamic mode table 2: The light is powered off for 10 seconds and then powered on. Within 3 seconds, press the ” S- ” button 5 times, and the yellow light blink 3 times slowly, indicating successfully.
Dynamic mode table 1 (default)
| Number | Dynamic Mode | Brightness / Saturation / Speed |
| 1 | Mardi Gras | Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat Tuesday | |
| 8 | Party | |
| 9 | Slow Color Splash |
Dynamic mode table 2 (need to switch manually)
| Number | Dynamic Mode | Brightness / Saturation / Speed |
| 1 | Colors gradual change | Adjustable |
| 2 | White light Gradual change | |
| 3 | RGB gradual change | |
| 4 | Seven colors jump to change | |
| 5 | Jump to change randomly | |
| 6 | Red light gradual change +Flash 3 times | |
| 7 | Greenlight gradual change +Flash 3 times | |
| 8 | Blue light gradual change +Flash 3 times | |
| 9 | White light gradual change +Flash 3 times |
Linking Code / Unlinking Code Instructions
Linking Code Instructions
 |  |  |
| Switch off light, after 10 seconds then switch on again. | Short press ” I ” button 3 times within 3 seconds when light on. | Lights blink 3 times slowly means linking is done successfully. |
Linking failed if light is not blinking slowly, Please follow above steps again.
(Note: Light that have linked can’t link again)
Unlinking Code Instructions
| | |

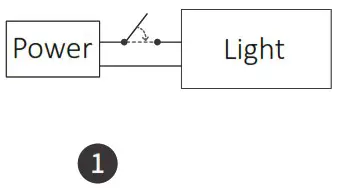

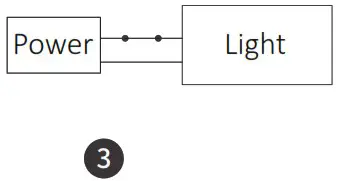

| Switch off light, after 10 seconds then switch on again. | Short press ” I ” button 5 times within 3 seconds when light on. | Lights blink 10 times quickly means linking is done successfully. |
Unlinking failed if light is not blinking quickly, Please follow above steps again.
(Note: Light haven’t linked that don’t need to unlink)
DMX512 LED Transmitter Link /Unlink
Compatible with DMX512 LED Transmitter (Purchase separately)

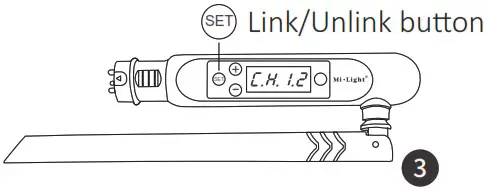

1. Choose the zone for the light by pressing “ + ” or “ – ” (e.g. “CH12” means zone 12)
 |  |  |

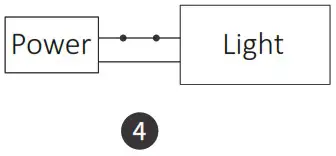

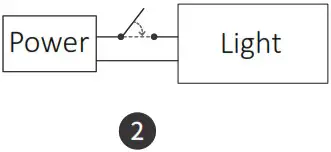

| Link Switch off the light, after 10 seconds switch on again | When the light is on, short press ”  ” 3 times within 3seconds | The light blink slowly 3 times, means the linking is done successfully |
| Unlink Switch off the light, after 10 seconds switch on again | When the light is on, short press ” ” 5 times within 3seconds | The light blink quickly 10 times, means the unlinking is done successfully |
If the link or unlink failed, please follow the above steps again.

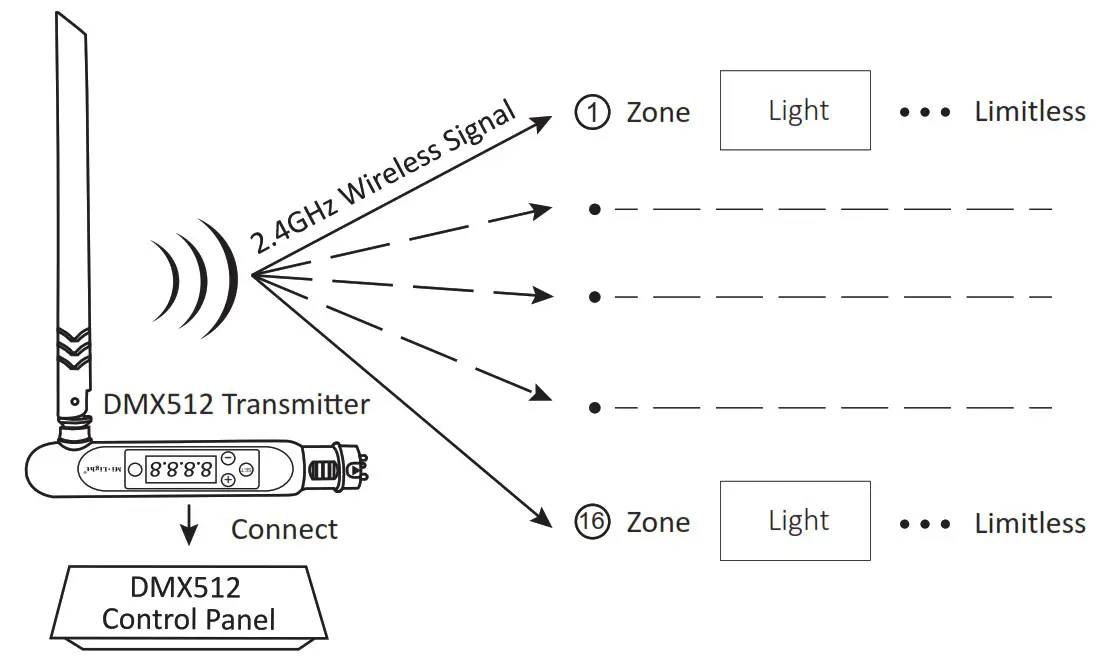

DMX512 LED Transmitter Connection Diagram

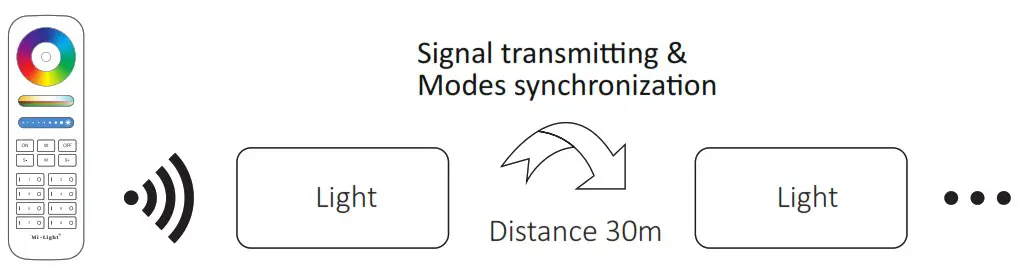

Signal transmitting
One light can transmit the signals from the remote control to another light within 30m, as long as there is a light within 30m, the remote control distance can be limitless.
Modes synchronization
Different lights can work synchronously when they are started at different times, light by the same remote, under same dynamic mode, and within 30m distance. The same dynamic mode, the same speed can be synchronized.
The mode of “Do Not Disturb”
It can be activated or turned off via remote control
Turn on “Do not disturb” (wide using in the area which have power failure frequently to save energy)
Press “OFF” button three times within three seconds and press “ON” button three times, Activated successfully once led light flashes four times quickly.
Attention: Do not disturb mode is acvated
- When the light is OFF status (For example: Use app or remote to turn off light)
The light is OFF status once you turn off power and turn on again. (User must turn off and turn on power twice times to activate light or use APP / remote to activate light) - When the light is ON status
The light is ON status once you turn off and turn on power one time.
Turn off “Do not disturb”
Press “ON” button three times within three seconds and press “OFF” button three times, closed successfully once led light flashes four mes slowly.
Attention: The light will be always “ON” status if you turn on and turn off power once user closed “Do not Disturb” mode.
Scan QR code to watch video instruction
 |  |
| https://miboxer.com/light/video/voice_2.html | https://miboxer.com/light/video/wifi_2.html |
Attention
- Please check whether the voltage of the power supply is in accordance with the light, and please check the connection of both the cathode and anode, otherwise the light will be broken.
- Please don’t connect wires with power on. Please turn on again only when it is in right connection and no short circuit.
- Non-professional user cannot dismantle the lighting fixtures directly.
- Please do not use the light in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.

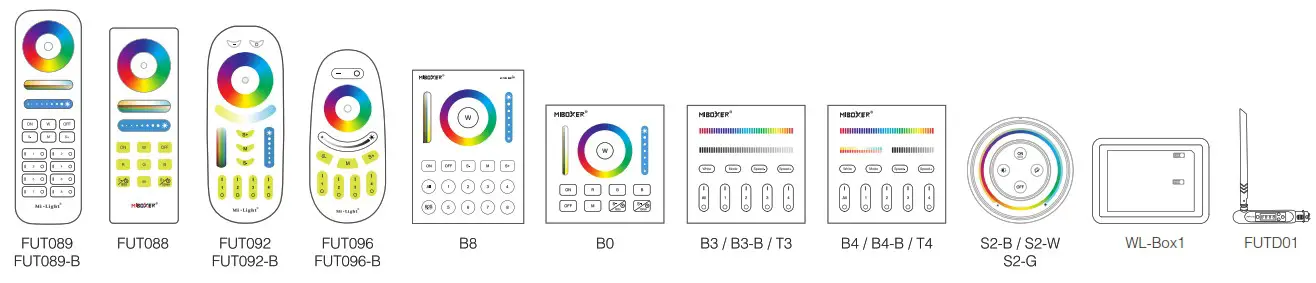

Compatible with these remote controls (Purchased separately)
