Subordinate New Brand
FUT037 RGB LED Strip Controller
FUT038 RGBW LED Strip Controller
Product Features
 | 16 Million of colors to choose |
 | 2.4GHz RF, remote control Control distance 30m |
 | Smartphone APP control (2.4GHz gateway is needed) |
 | Dim brightness/ Saturation |
| Support third party voice control (2.4GHz gateway is needed) |
Technical Parameters
Model No.: FUT037 / FUT038
Input voltage: DC12V-24V
Output: Max. 6A/Channel
Total output: Max. 10A
Working Temperature: -20~60°C
RF: 2.4GHz
Control distance: 30m
Output connection: Common anode
Mode list
M1. Fade in adn fade out Here different colors fade into each other
M2. Strobe white
Just white color flashes up
M3. RGBW fade in fade out
This program fades in and fades out the color red, green, blue and white one after another
M4. Color flash
In this program, red, green, blue, white yellow purple flashes to change
M5. Disco
Different colors strobe and flash to change
M6. Red color ramp up and flash
In this program, red color brightens from 0%-100% and shuts down, then flashes three times
M7. Green color ramp up and flash
In this program, green color brightens from 0%-100% and shuts down, then flashes three times
M8. Blue color ramp up and flash
In this program, blue color brightens from 0%-100% and shuts down, then flashes three times
M9. Color change+flash
Here several colors fade into each other and then flash randomly
Note: The colors can be dimming under any mode, the speed of any mode can be adjustable. For RGB LED strip light, the white is mixed with red, green and blue, so the white is not pure.

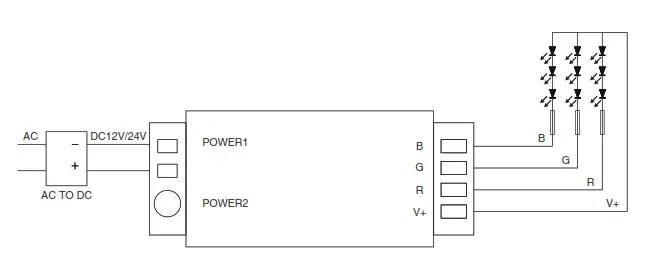

Connection diagram
FUT037 RGB
Connection diagram

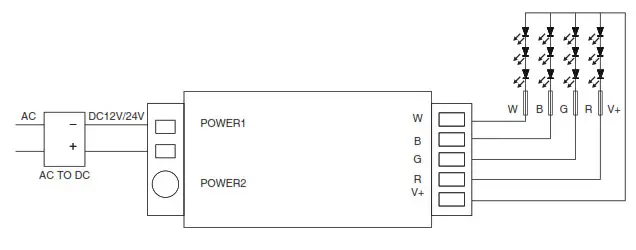

FUT038 RGBW
Connection diagram

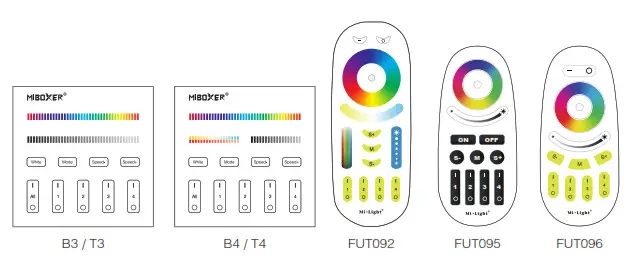

Compatible Remote
NOTE:
Lighting can be working after linking with remote; for more details, pls read the remote instruction.
Attention:
- Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise, the controller will be broken.
- Please don’t connect wires with power on. Please switch on again only when it is in the right connection and no short circuit.
- Please do not use the controller in a place with a wide range of metal areas or strong electromagnetic waves nearby, otherwise, the remote distance will be seriously affected.
Made in China
