Miboxer Fut037m 2.4 Ghz Rgb Led Strip Controller Instruction Manual

Mi • Light
Subordinate New Brand

1. Features

Product adopt the widely used 2.4GHz wireless technology with the features of low power consumption, long signal transmitting and strong anti-interference, etc. This product has auto-transmitting and auto-synchronizing function. Widely used on the controlling of hotel lighting and home lighting.

RGB LED Light

16 Millions of colors to choose
Mix Red, Green and Blue light to adjust color temperature
Dim brightness / Saturation
2.4G RF wireless transmission technology
Remote control Control distance 30m
Smartphone app control (2.4GHz gateway is needed)
Support third party voice control (2.4GHz gateway is needed)
Signal transmitting & Modes synchronization

RGBW LED Light

16 Millions of colors to choose
Dim brightness / Saturation / White mode
2.4G RF wireless transmission technology
Signal transmitting & Modes synchronization
Remote control Control distance 30m
Smartphone app control (2.4GHz gateway is needed)
Support third party voice control (2.4GHz gateway is needed)

2. Dynamic mode table selection

Select dynamic mode table 1: The light is powered off for 10 seconds and then powered on. Within 3 seconds, press the ” S+ ” button 5 times, the blue light blink 3 times slowly, indicating successfully.

Select dynamic mode table 2: The light is powered off for 10 seconds and then powered on. Within 3 seconds, press the ” S- ” button 5 times, and the yellow light blink 3 times slowly, indicating successfully.

Dynamic mode table 1 (default)

Dynamic mode table 2 (need to switch manually)

3. Linking Code / Unlinking Code Instructions

Linking Code Instructions

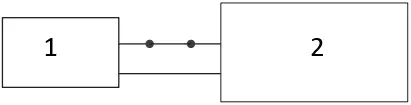

1. Power
2. Light

1 Switch off light, after 10 seconds then switch on again.

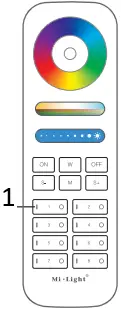

1. Link / Unlink button

2 Short press ” I ” button 3 times within 3 seconds when light on.

1. Power
2. Light

3 Lights blink 3 times slowly means linking is done successfully.

Linking failed if light is not blinking slowly, Please follow above steps again.
(Note: Light that have linked can’t link again)

Unlinking Code Instructions

1. Power
2. Light

1 Switch off light, after 10 seconds then switch on again.

1. Link / Unlink button

2 Short press ” I ” button 5 times within 3 seconds when light on.

1. Power
2. Light

3 Lights blink 10 times quickly means unlinking is done successfully.

Unlinking failed if light is not blinking quickly, Please follow above steps again.
(Note: Light haven’t linked that don’t need to unlink)

4. Signal transmitting

One light can transmit the signals from the remote control to another light within 30m, as long as there is a light within 30m, the remote control distance can be limitless.

5. Modes synchronization

Different lights can work synchronously when they are started at different times, light by the same remote, under same dynamic mode and within 30m distance.

The same dynamic mode, the same speed can be synchronized.

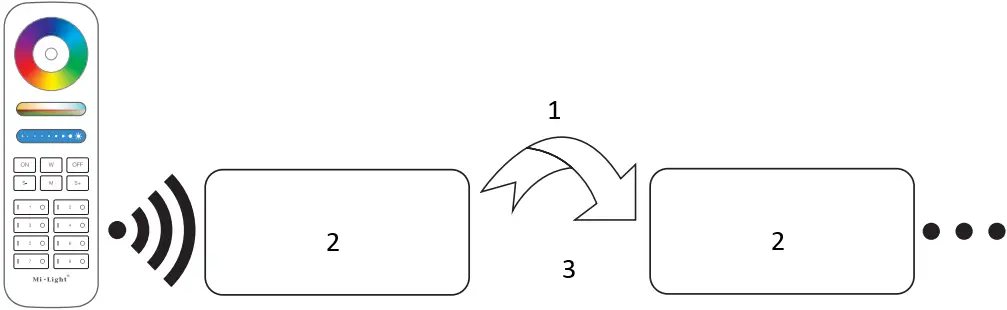

1. Signal transmitting & Modes synchronization
2. Light
3. Distance 30m

6. The mode of “Do Not Disturb”

It can be activated or turned off via remote control

Turn on “Do not disturb” (wide using in the area which have power failure frequently to save energy)

Press “OFF” button three times within three seconds and press “ON” button three times, Activated successfully once led light flashes four times quickly.

Attention: Do not disturb mode is activated

1. When the light is OFF status (For example: Use app or remote to turn off light)
   The light is OFF status once you turn off power and turn on again. (User must turn off and turn on power twice times to activate light or use APP / remote to activate light)
2. When the light is ON status
   The light is ON status once you turn off and turn on power one me.

Turn off “Do not disturb”
Press “ON” button three times within three seconds and press “OFF” button three times, closed successfully once led light flashes four times slowly.

Attention: The light will be always “ON” status if you turn on and turn off power once user closed “Do not Disturb” mode.

7. Scan QR code to watch video instruction

Smartphone app control (WL-Box1 video)

Third party voice control

8. Attention

1. Please check whether the voltage of the power supply is in accordance with the light, and please check the connection of both the cathode and anode, otherwise the light will be broken.
2. Please don’t connect wires with power on. Please turn on again only when it is in right connection and no short circuit.
3. Non-professional user cannot dismantle the lighting fixtures directly.
4. Please do not use the light in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.

Compatible with these remote controls (Purchased separately)

FUT089
FUT089-B

FUT088

FUT092
FUT092-B

FUT096
FUT096-B

B8

B0

B3 / B3-B / T3

B4 / B4-B / T4

S2-B / S2-W
S2-G

WL-Box1

Made in China

Light can not use in humid area
