RGB+CCT LED Garden Light ( DMX512&RDM )
Model No.: D5-G50 / D5-G100

Features

1. Accord with DMX512 standard protocol.
2. Digital Display, Set DMX initial address through the button.
3. Support RDM function.
4. 16 million colors to change, color temperature, and brightness adjustable.
5. IP65 waterproof rated

	RGB colors to choose
	Color temperature
	Brightness control
	Support RDM function
	Beam angle 25°
	Waterproof and dustproof grade IP65

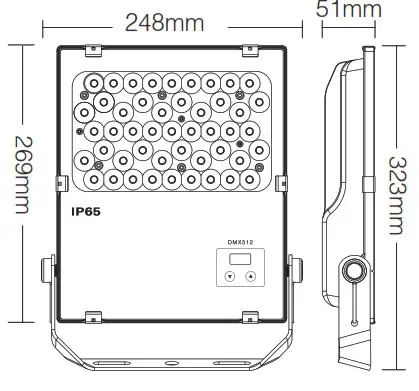

Parameter

50W RGB+CCT LED Garden Light ( DMX512&RDM )
Model No.: D5-G50
Input Voltage: AC100~240V 50/60Hz
Power: 50W
Color Temperature: 2700K~6500K
Luminous Flux: 4000LM
Light Efficiency: 80LM/W
CRI: >80 PF: >0.9
Beam Angle: 25°
IP Rate: IP65
Lifespan: 50000 hours
Working Temperature: -20~45°C

100W RGB+CCT LED Garden Light ( DMX512&RDM )

Model No.: D5-G100
Input Voltage: AC100~240V 50/60Hz
Power: 100W
Color Temperature: 2700K~6500K
Luminous Flux: 7500LM
Light Efficiency: 75LM/W
CRI: >80 PF: >0.9
Beam Angle: 25°
IP Rate: IP65
Lifespan: 50000 hours
Working Temperature: -20~45°C

Function Settings

1. Digital Display status description
   Self-locking: Get into locking state when there is no operation over 10 seconds, digital display with low light.
   Unlock Each button press 3 times separately within 3s to unlock.
   The address is always ON: DMX signal valid.
   Address flickering: DMX signal invalid.
2. DMX initial address setting
   Under unlock status, when the digital display shows 001-512( for example ), Short press ▲ button or ▼ button, you can change the DMX initial address; Long press, you can change it quickly.
   For Example Set Initial address to 100

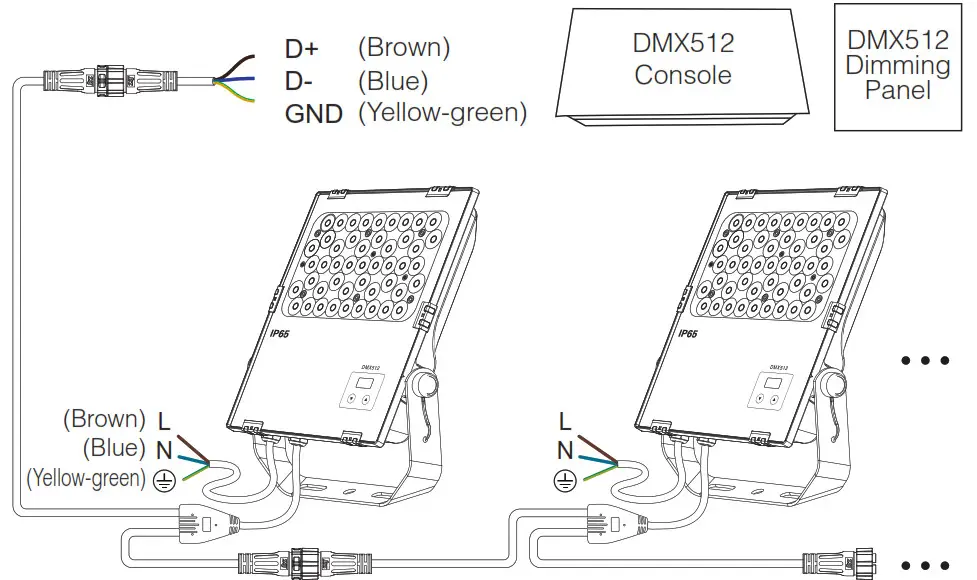

Connection Diagram

Attention: If the DMX garden light is over 32pcs, or using the super long signal cable, you need a DMX signal amplifier. Amplify signal cannot be over 5 times.

Attention

1. This product should be debugged and installed by professionals.
2. Please check whether the input voltage meets the requirements of the product voltage range.
3. Before switching on the power, please ensure that all wiring is correct, so as not to cause damage to the devices.
4. Please do not install the devices in low-lying and easily inundated areas.
5. If a fault has occurred, non-professionals do not repair it without permission, otherwise, the devices will be damaged.
