Miboxer Fut060 Rgb+cct Led Ceiling Downlight Instructions

Mi-Light
Subordinate New Brand
RGB+CCT LED Downlight
Model No.: FUT060-FUT069

Features

	RGB+CCT 16 Millions of colors to choose
	Color temperature 2700~6500K
	Dimmable Saturation control
	2.4G RF wireless transmission technology
	Signal transmitting & Modes synchronization
	Remote control Control distance 30m
	Smartphone APP control (2.4GHz gateway is needed)
	Support third party voice control (2.4GHz gateway is needed)

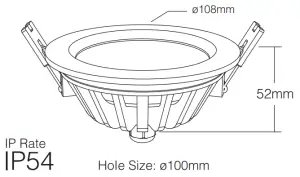

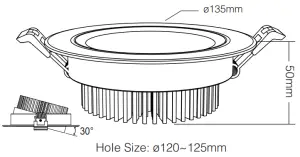

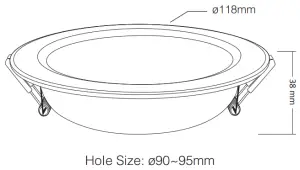

9W RGB+CCT LED CeiIing Spotlight Model No.: FUT062	6W RGB+CCT LED Waterproof Downlight Model No.: FUT063
Input Voltage: AC100~240V 50/60Hz Power: 9W Working Temp.: -20~60°C CRI: >80 PF: >0.5 Color Temperature: 2700K~6500K Luminous Flux: 700LM Light Efficiency: 80LM/W Lifespan: 50000 hours Beam Angle: 15° RF: 2.4GHz Control Distance: 30m MateriaI: ALuminum+PC Cover Product Weight: 320g	Input Voltage: AC100~240V 50/60Hz Power: 6W Working Temp.: -20~60°C CRI: >80 PF: >0.5 Color Temperature: 2700K~6500K Luminous Flux: 500LM Light Efficiency: 80LM/W Lifespan: 50000 hours Beam Angle: 120° RF: 2.4GHz Control Distance: 30m MateriaI: ALuminum+PC Cover Product Weight: 267g

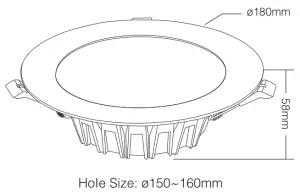

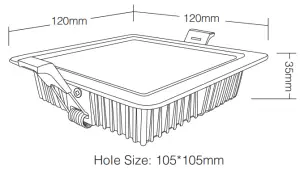

9W RGB+CCT Square LED Downlight Model No.: FUT064	18W RGB+CCT LED Downlight Model No.: FUT065
Input Voltage: AC100~240V 50/60Hz Power: 9W Working Temp.: -20~60°C CRI: >80 PF: >0.5 Color Temperature: 2700K~6500K Luminous Flux: 720LM Light Efficiency: 80LM/W Lifespan: 50000 hours Beam Angle: 120° RF: 2.4GHz Control Distance: 30m MateriaI: ALuminum+PC Cover Product Weight: 240g	Input Voltage: AC100~240V 50/60Hz Power: 18W Working Temp.: -20~60°C CRI: >80 PF: >0.5 Color Temperature: 2700K~6500K Luminous Flux: 1500LM Light Efficiency: 85LM/W Lifespan: 50000 hours Beam Angle: 120° RF: 2.4GHz Control Distance: 30m MateriaI: ALuminum+PC Cover Product Weight: 410g

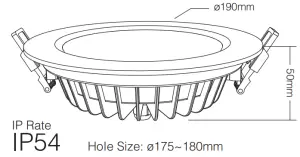

15W RGB+CCT LED Downlight Model No.: FUT069
Input Voltage: AC100~240V 50/60Hz Power: 15W Working Temp.: -20~60°C CRI: >80 PF: >0.5 Color Temperature: 2700K~6500K Luminous Flux: 1200LM Light Efficiency: 80LM/W	Lifespan: 50000 hours Beam Angle: 120° RF: 2.4GHz Control Distance: 30m MateriaI: ALuminum+PC Cover Product Weight: 640g

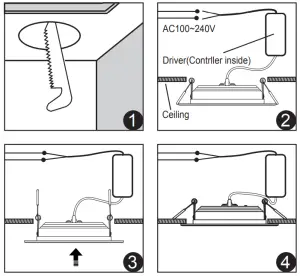

Instructions

1. Please open the hole on the ceiling according of Diagram 1. ( For the size of the hole, please refer to the parameters of the corresponding model. )
2. Connect the driver properly according to the wire connection Diagram 2. And then put the driver and wire into the ceiling from the hole.
3. Push in the two spring elements, make sure that they are deployed and anchored on the back of the ceiling Diagram 3 and 4.


Link/Unlink

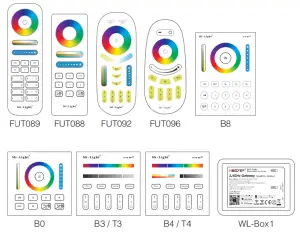

Compatible with these remote controls (Purchased separately)

NOTE:
Lighting can be working after linking with remote; for more details, pls read the remote instruction.

Dynamic Mode Sheet

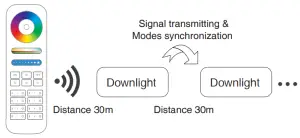

Signal transmitting

One Downlight can transmit the signals from the remote control to another Downlight within 30m, as long as there is a Downlight within 30m, the remote control distance can  be limitless.

Modes synchronization
Different Downlight can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.

Attention

1. When install the lighting fixtures, pls switch off the power to make sure the safty.
2. Please check whether the input voltage supply is in accordance with the lighting fixtures.
3. Non-professional user cannot dismantle the lighting fixtures directly, otherwise, it may cause fire and electric shock.
4. Please do not use lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.

Signal transmitting & Modes synchronization
Made in China
