Subordinate New Brand
Anti-glare RGB+CCT LED Downlight
Model No.: FUT072
Features
 | Deepen the cover Prevent glare effectively |
 | RGB+CCT 16 Million of colors to choose |
 | Color temperature 2700K~6500K |
 | Dim brightness/ Saturation |
 | 2.4G RF wireless transmission technology |
 | Signal transmitting & Modes synchronization |
 | Remote control Control distance 30m |
 | Smartphone APP control (2.4GHz gateway is needed) |
 | Support third party voice control (2.4GHz gateway is needed) |
18W Anti-glare RGB+CCT LED Downlight
Model No.: FUT072
Input Voltage: AC100~240V 50/60Hz
Power: 18W
Working Temp.: -20~60°C
CRI: >80 PF: >0.5
Color Temperature: 2700K~6500K
Luminous Flux: 1200LM
Lifespan: 50000 hours
Beam Angle: 60°
RF: 2.4GHz
Control Distance: 30m’
Instructions

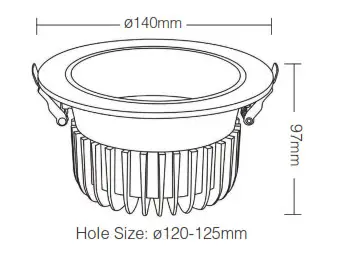

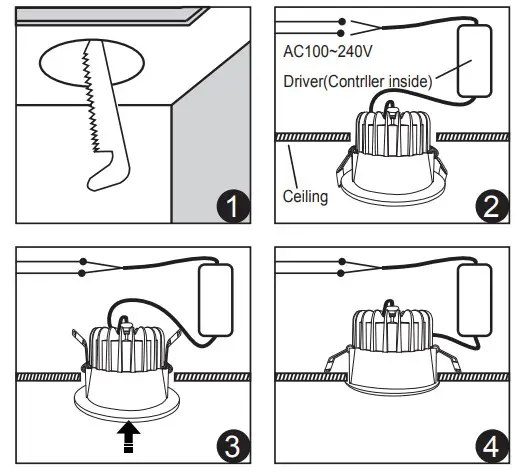

- Please open the hole on the ceiling according to the correct size of Diagram 1.
- Connect the driver properly according to the wire connection Diagram 2. And then put the driver and wire into the ceiling from the hole.
- Push in the two spring elements, make sure that they are deployed and anchored on the back of the ceiling Diagrams 3 and 4.
Link / Unlink

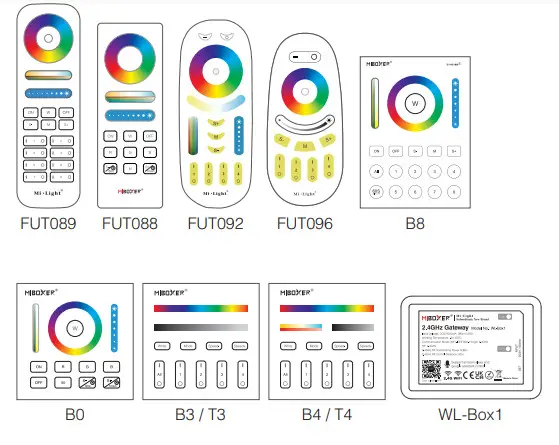

Compatible with these remote controls
(Purchase separately)
NOTE:
Light will work after linking with remote control; for more details, pls read the remote instruction.
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness /Saturation / Speed |
| 1 | Mardi Gras | Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat Tuesday | |
| 8 | Party | |
| 9 | Slow Color Splash |

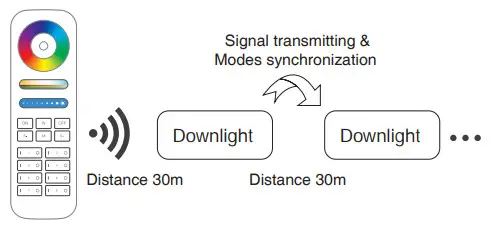

Signal transmitting
One Downlight can transmit the signals from the remote control to another Downlight within 30m, as long as there is a Downlight within 30m, the remote control distance can be limitless.
Modes synchronization
Different Downlight can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within 30m distance.
Attention
- When installing the lighting fixtures, pls switch off the power to make sure safety.
- Please check whether the input voltage supply is in accordance with the lighting fixtures.
- Non-professional user cannot dismantle the lighting fixtures directly, otherwise, it may cause fire and electric shock.
- Please do not use lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
