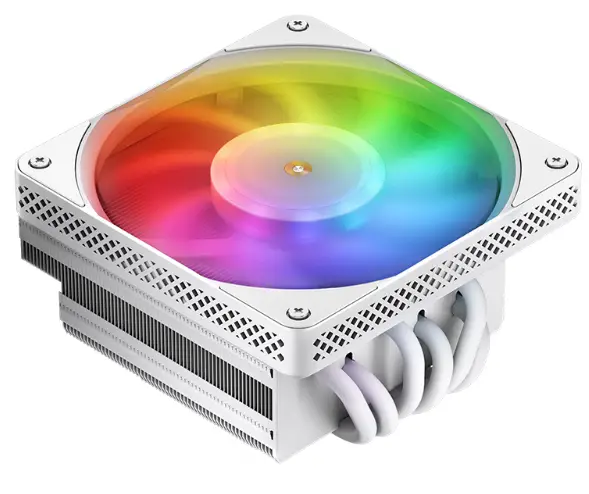

JONSBO HX6200D CPU Cooler

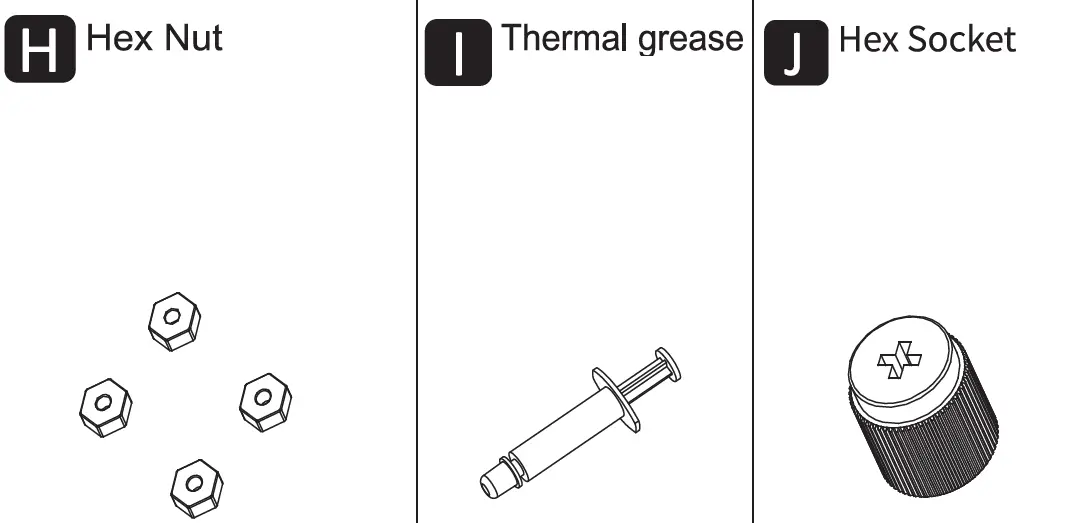

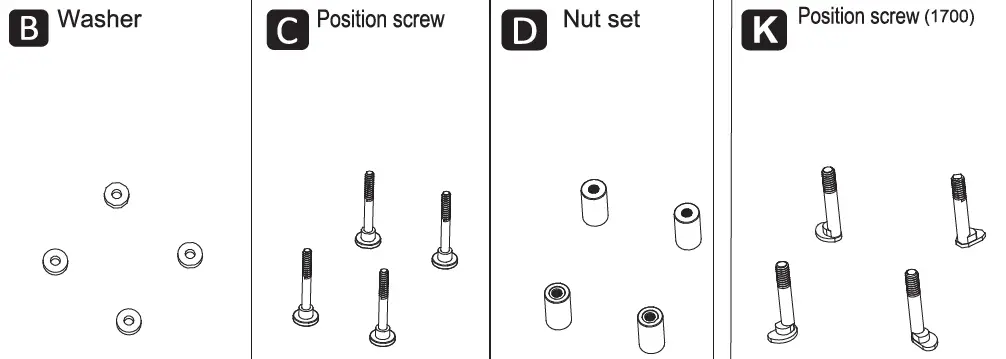

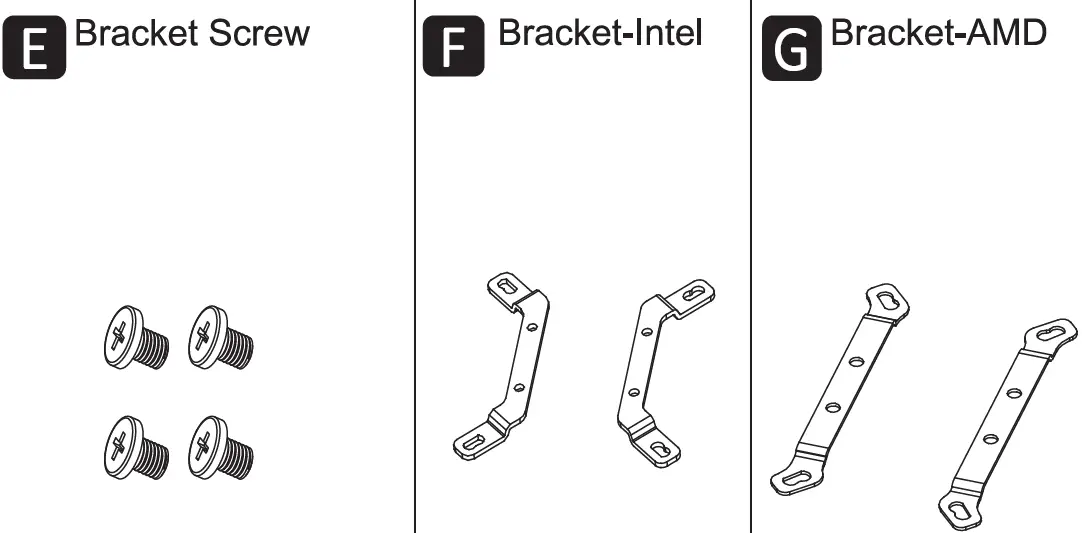

PART LIST

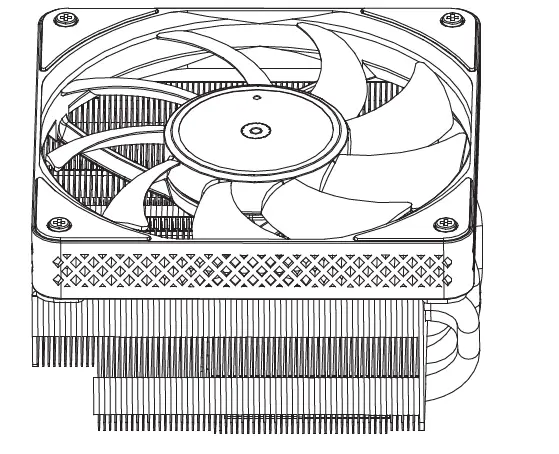

CPU heatsink

Chapter 2 – Intel Installation

                                                                                Step 2

Step 1

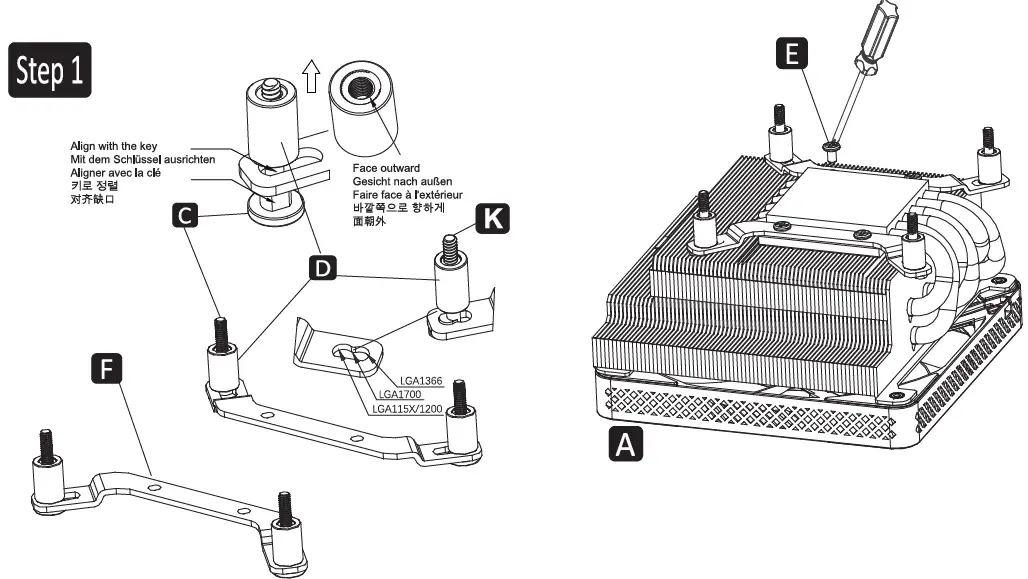

Insert the position screws to corresponding holes of Intel brackets,

Step 2

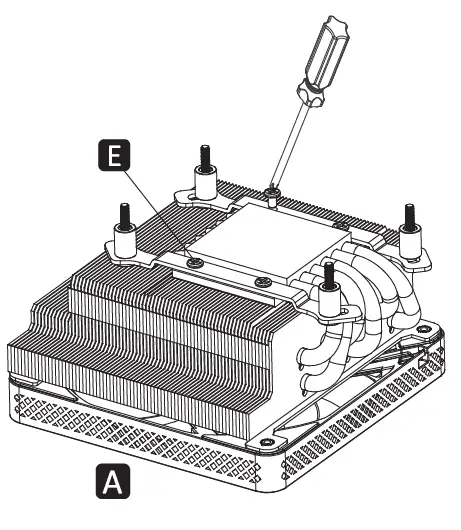

Secure Intel brackets to cooler with bracket screws

STEP 3

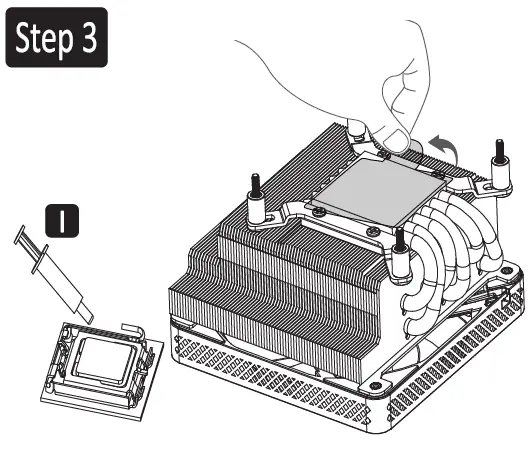

Apply thermal paste on CPU / Remove the protection filmSTEP 4

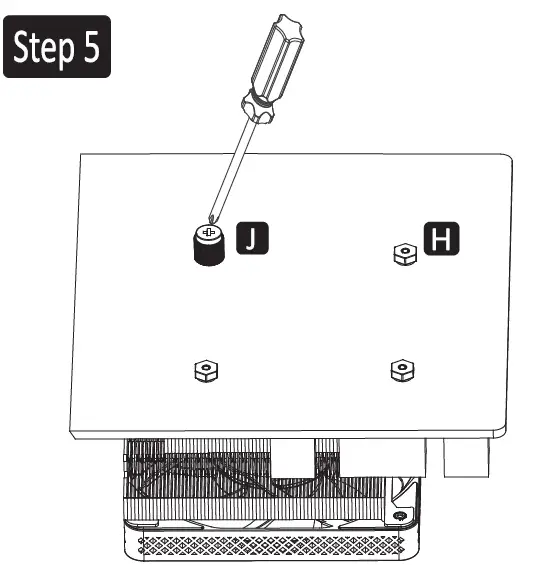

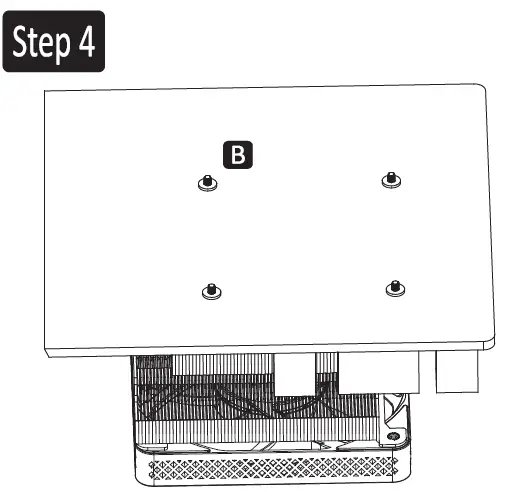

Align CPU cooler mounting holes of MB with positioning screws,

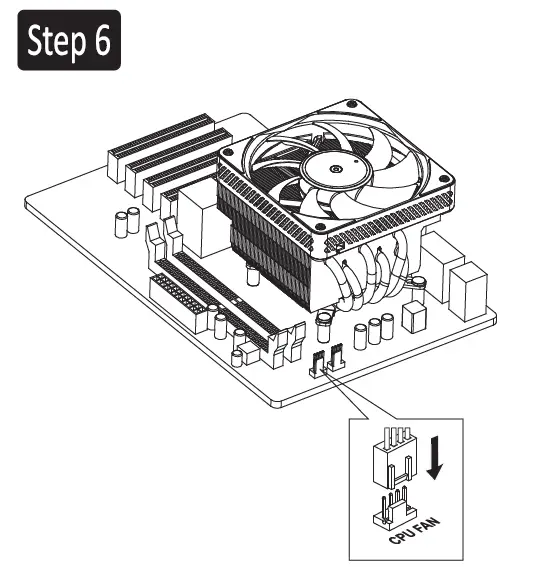

Tighten the nut with hex socket Connect the fan cable to CPU_FAN socket on MB

Chapter 3 -AMD Installation

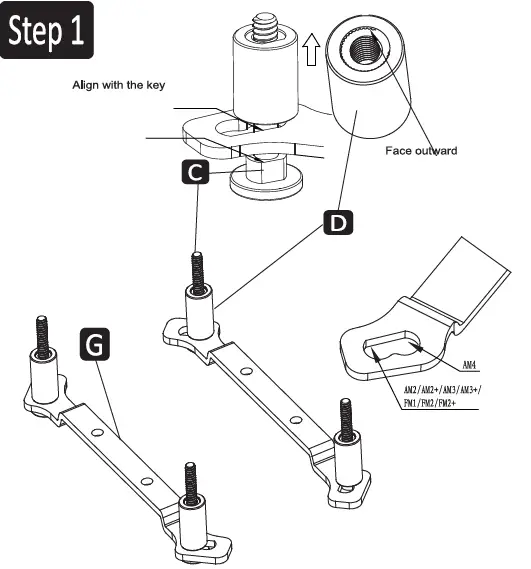

Insert the position screws to corresponding holes of AMO brackets, fixing them with nuts.

STEP 2Secure AMD brackets to cooler with bracket screws

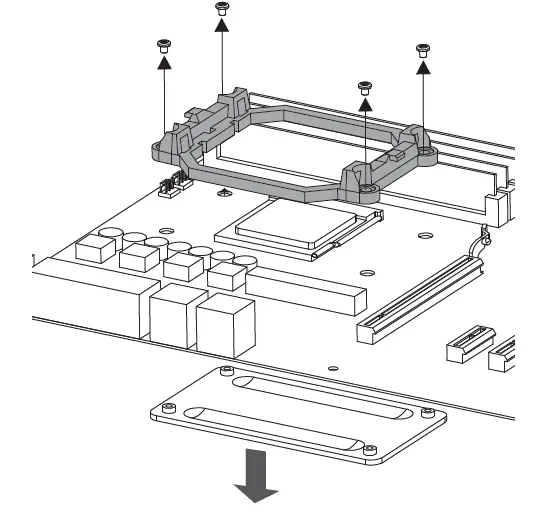

STEP 3Remove the plastic retainers of the AMO retention module

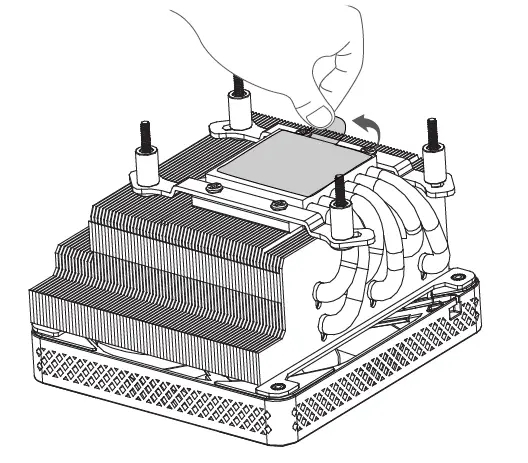

STEP 4Remove the protection film

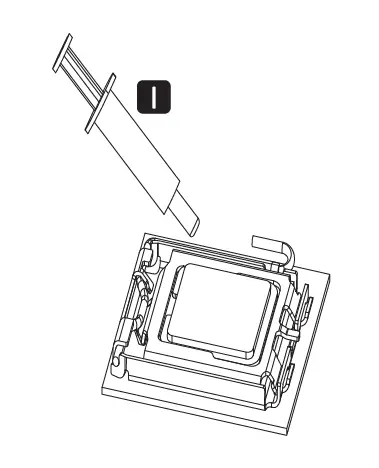

STEP 5 Apply thermal paste on CPU

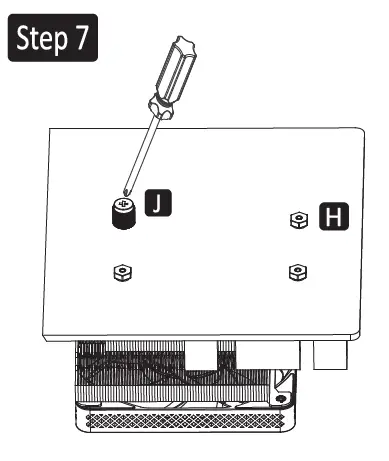

STEP 6Align CPU cooler mounting holes of MB with positioning screws, Tighten the nut with hex socket

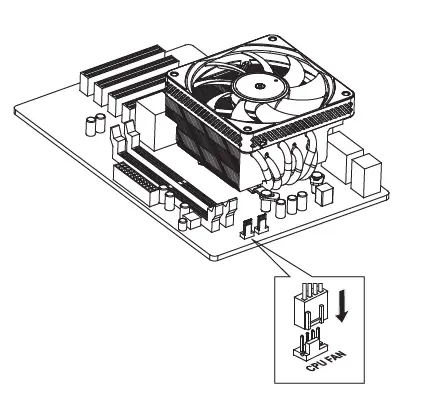

STEP 8 Connect the fan cable to CPU_FAN socket on MB
