Jonsbo Hx7280 2x 140mm Cpu Cooler User Manual

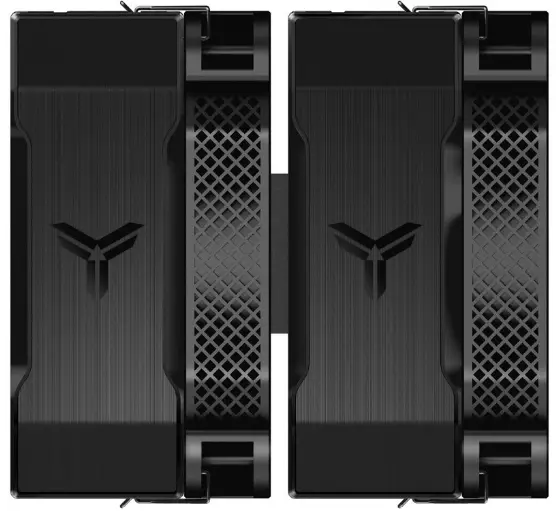

jONSBO HX7280 2X 140mm CPU Cooler User Manual

Part List

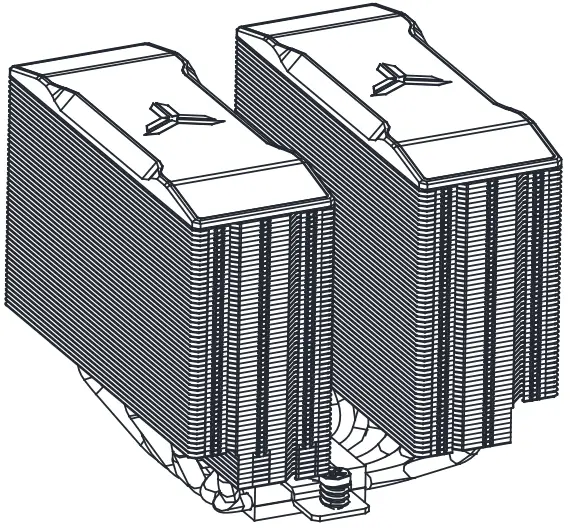

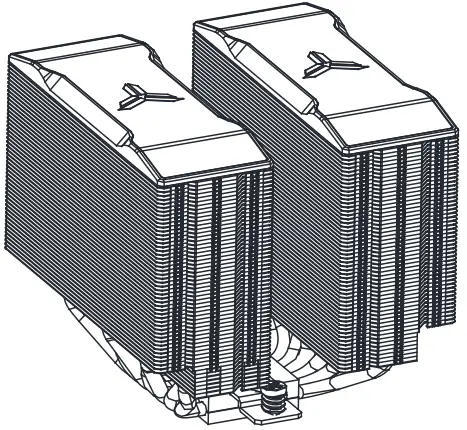

• CPU Cooler

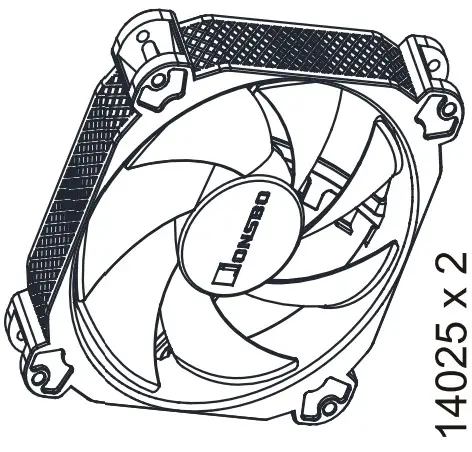

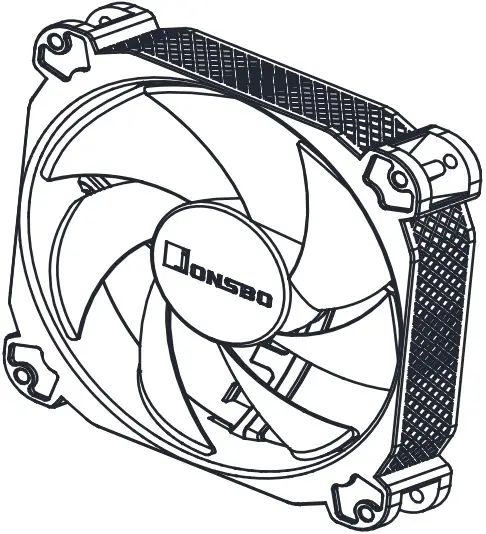

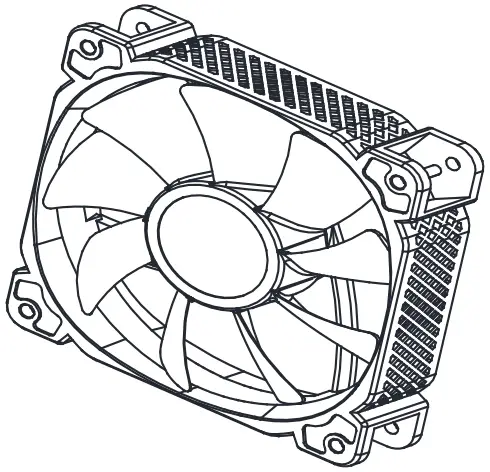

• DC Fan

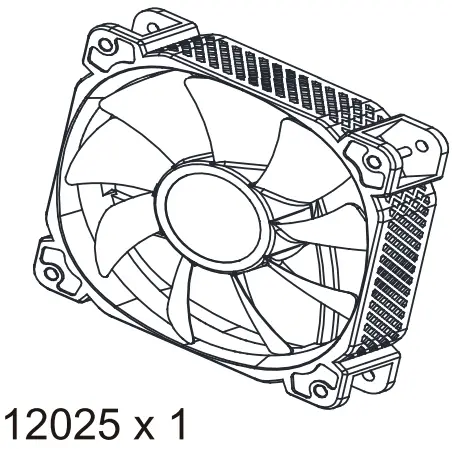

• DC Fan

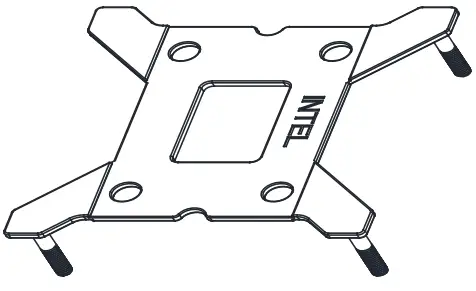

• Back plate -Intel

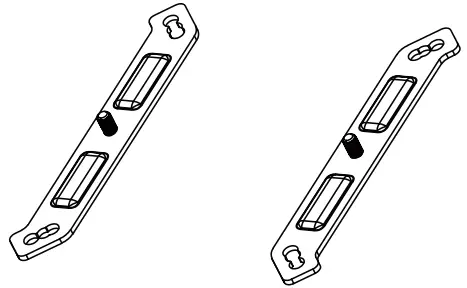

• Intel Mounting bracket x2

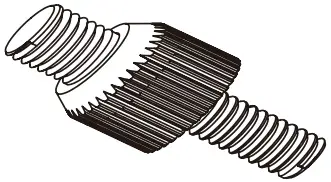

• Spacer

• Intel WA 2011 Screw x4

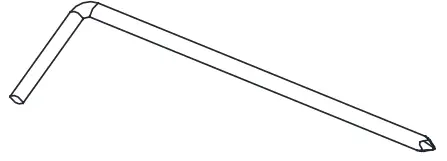

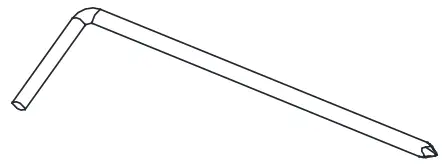

• Wrench screwdriver

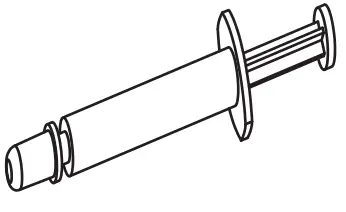

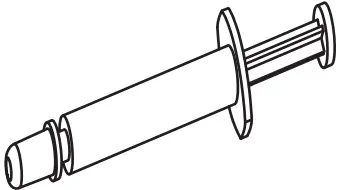

• Thermal Paste

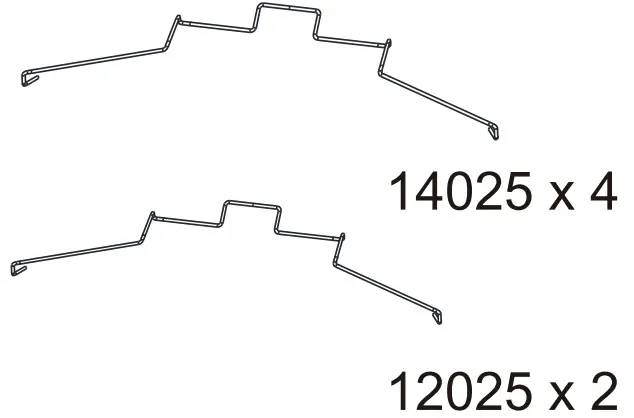

• Fan Clip x4

• Fixing Nut

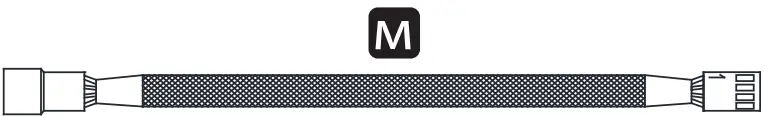

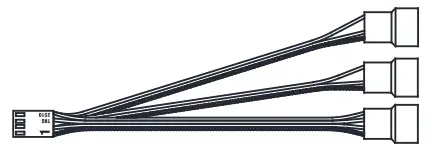

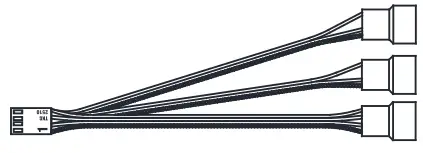

• Split Cable

• Low-Noise adapter


Intel Installation

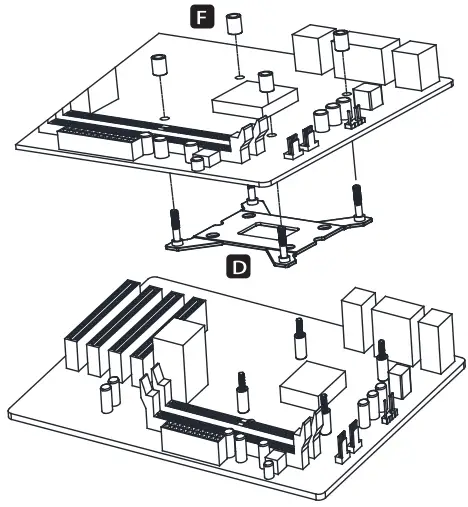

1. Install the backplate to the motherboard and fix it with spacers

2. Install the mounting brackets and secure with fixing nut

   1. Install the LGA2011 screw to CPU Bracket, and secure the mounting bracket with fixing nut.

3. Applying the thermal paste on CPU evenly, and remove the protection film from copper base

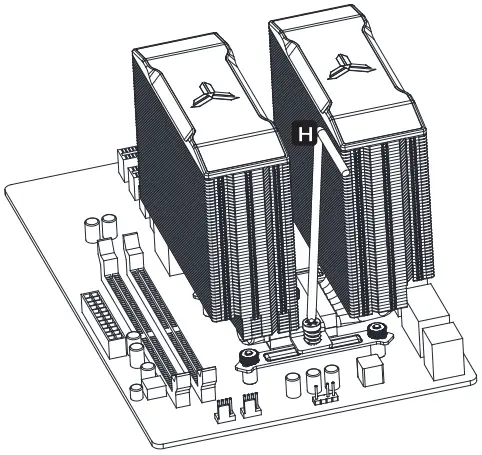

4. Place the cooler on the CPU, and secure the heat sink to the mounting brackets.

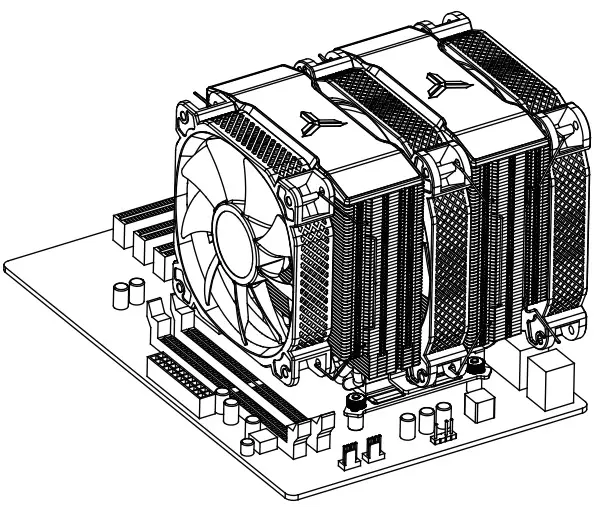

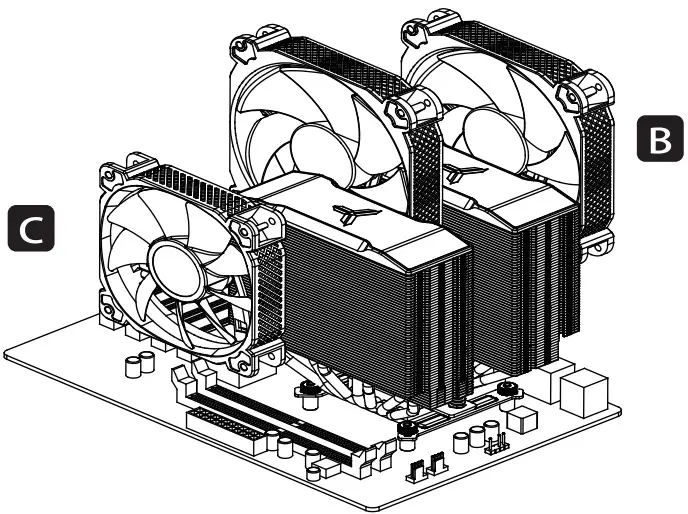

5. Insert the top cover back on cooler, secure the fan with fan clips

   Please follow the hardware configuration, such as the space of the motherboard, the height of the RAM or the width of the case, to select the number of fans and the size of the installed fans, use the specified fan cable clips to fix the fan

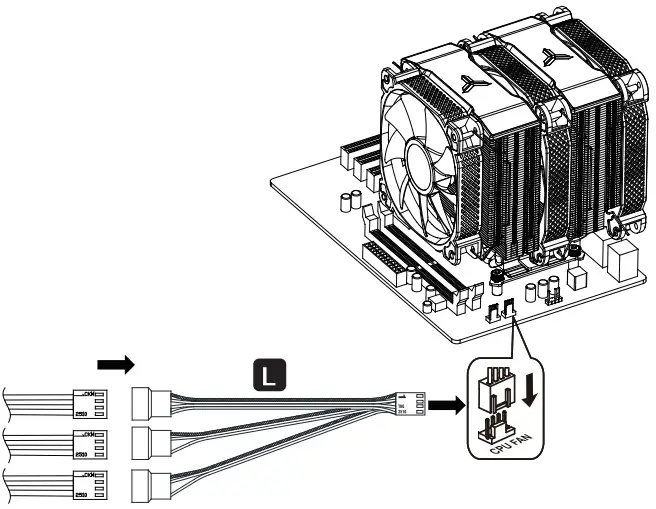

6. Connect fan cables to split cable and to CPU fan socket on the motherboard
   Low-Noise adapter to lower the fan speed


AMD Installation

• CPU Cooler

• DC FAN

• DC Fan

• Bracket Screw x4

• AMD-Mounting Bracket x2

• Spacer

• Wrench Screwdriver

• Thermal Paste

• Fan Clip x4

• Split Cable

• Low-Noise Adapter

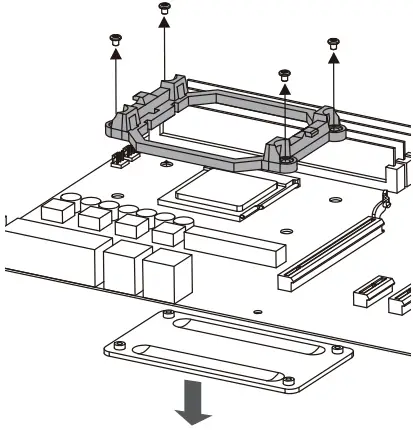

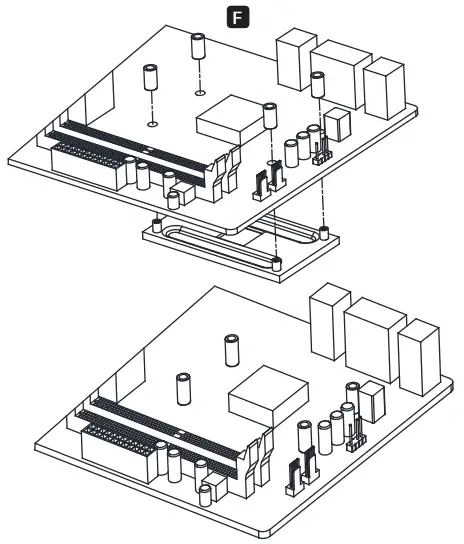

1. Remove the plastic retainer of the AMD retention module, place the existing backplate back to MB

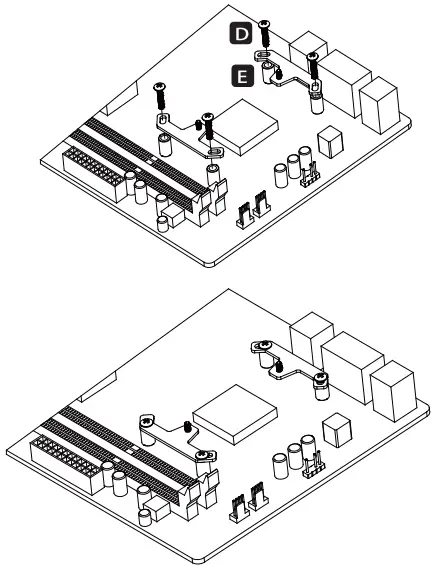

2. Install the spacer to secure the AMD backplate

3. Install the AMD mounting plate and secure with position screw

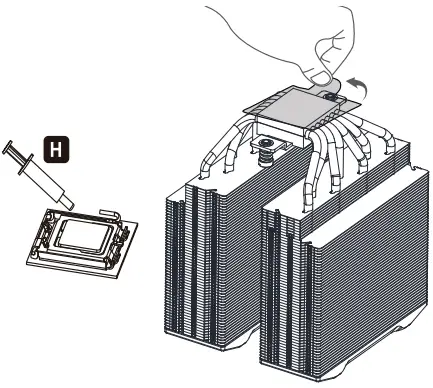

4. Applying the thermal paste on CPU evenly, and remove the protection film from copper base

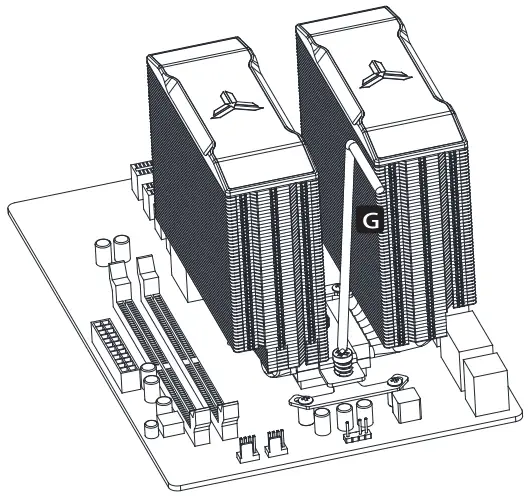

5. Place the cooler on the CPU, and secure the heat sink to the mounting brackets.

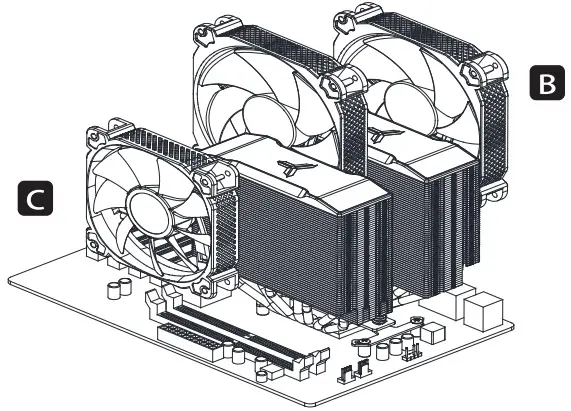

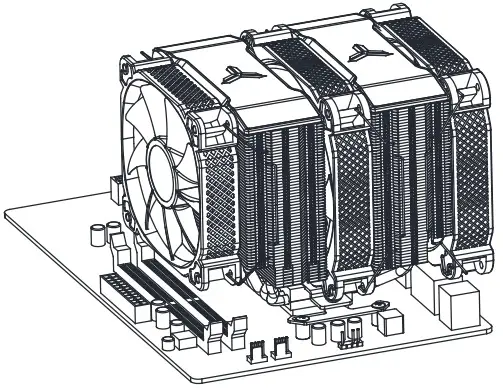

6. Insert the top cover back on cooler, secure the fan with fan clips
   Please follow the hardware configuration, such as the space of the motherboard, the height of the RAM or the width of the case, to select the number of fans and the size of the installed fans, use the specified fan cable clips to fix the fan

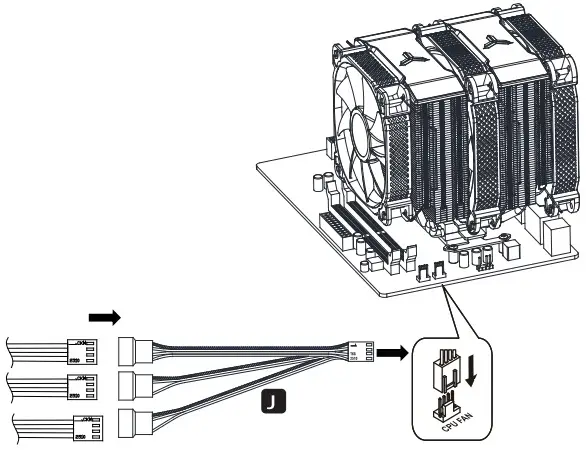

7. Connect fan cables to split cable and to CPU fan socket on the motherboard
   Low-Noise adapter to lower the fan speed
