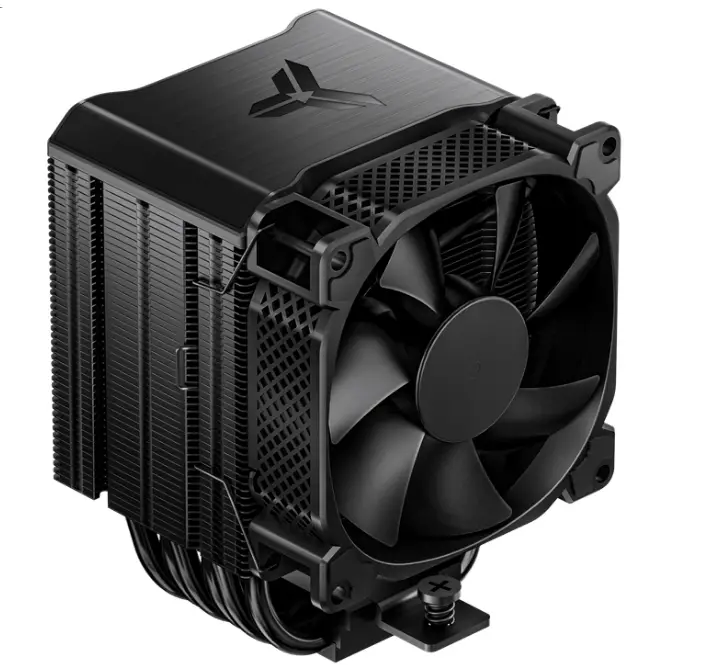

JONSBO HX6210 CPU Cooler
Part List
- CPU Cooler
- Fan
- Backplate -Intel
- Intel Mounting bracket x2
- Intel LGA 2011 Screw x4
- Fixing Nut
- Fan Clip x4
- Spacer
- Thermal Paste
- Wrench screwdriver
Intel Installation

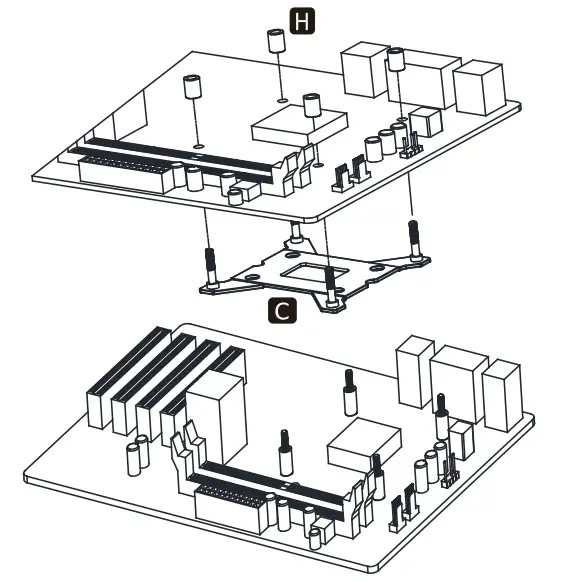

Step1: Install the backplate to the motherboard and fix it with spacers

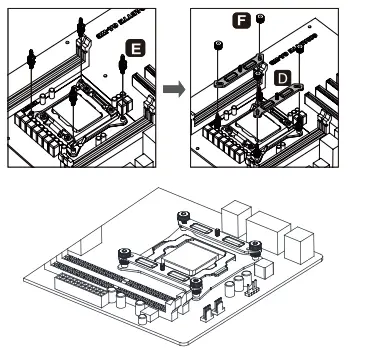

Step2: Install the mounting brackets and secure with a fixing nut
Step2.1
Intel LGA 2011 installation
- Install the LGA2011 screws to the CPU Bracket, and secure the mounting bracket with fixing nut
Step3

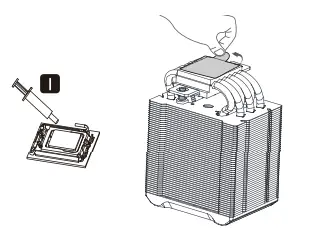

- Applying the thermal paste on CPU evenly, and remove the protection film from copper base
Step4
- Place the cooler on the CPU, remove the magnetic top cover, and secure the hase scraw to the mauntina hracket
Step5

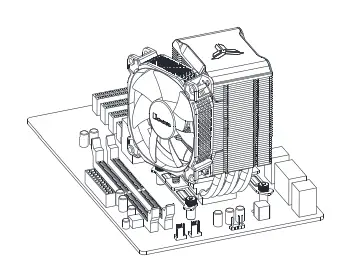

- Insert the top cover back on cooler, secure the fan with fan clips
Step6
- Connect fan and LED cables to CPU FAN socket.
2017 JONSBO SHENZHEN TECHNOLOGY Co., LTD. Al right reserved. Specifications are subject to change without prior notice. Some trademark may be claimed as the property of others.
