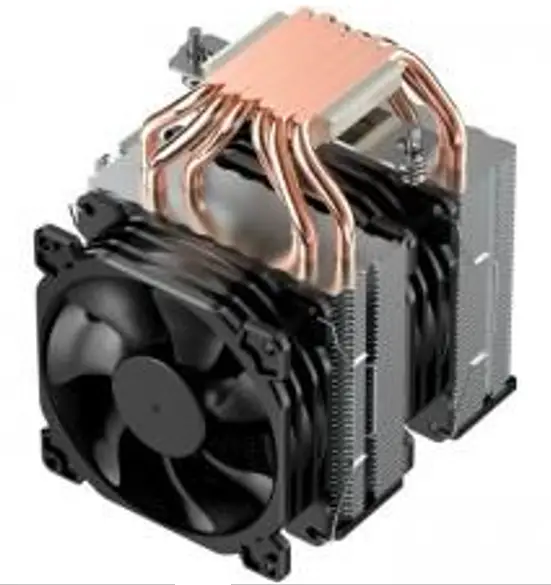

jONSBO CR-2200 CPU Cooler
Part List

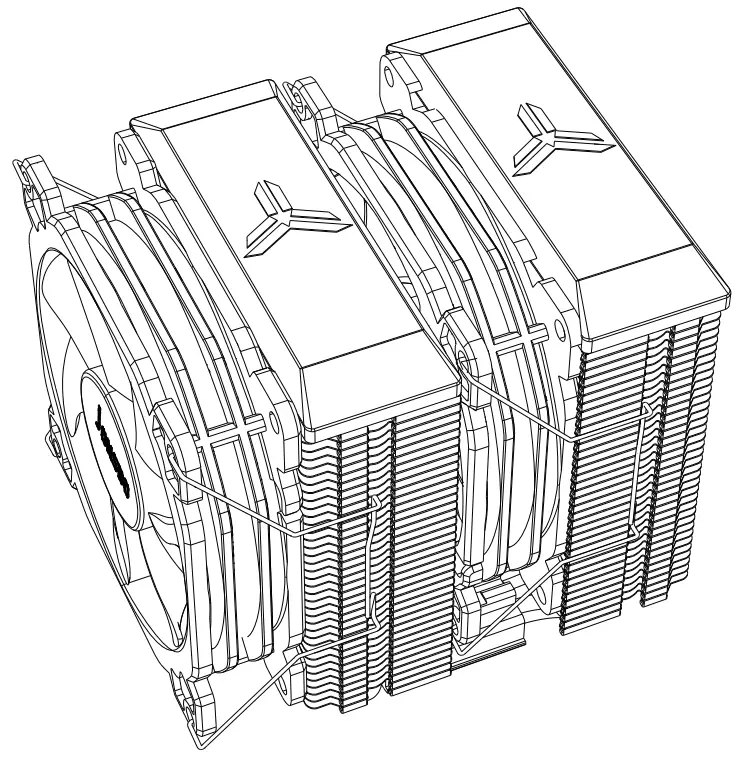

- CPU Cooler

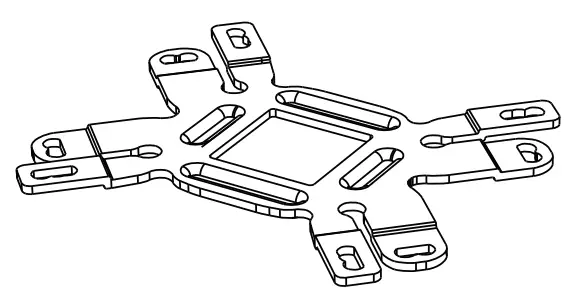

- Backplate

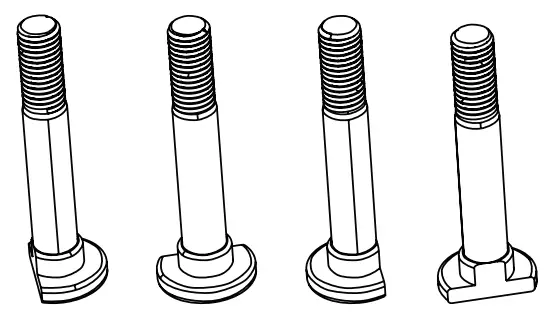

- Screw with Key

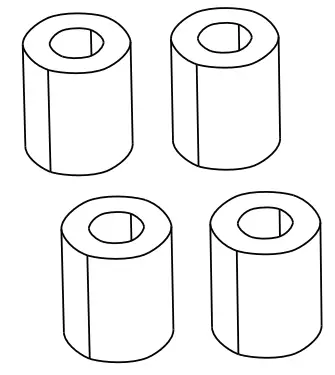

- Standoffs

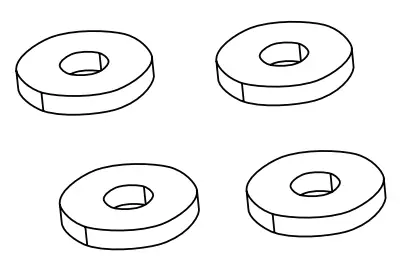

- Washer
- Bracket

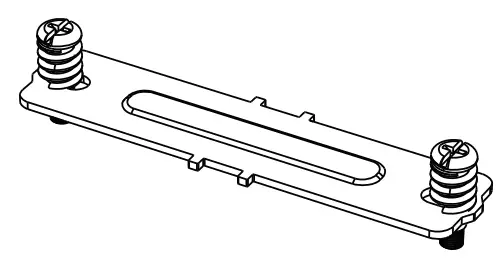

- Mounting Bar

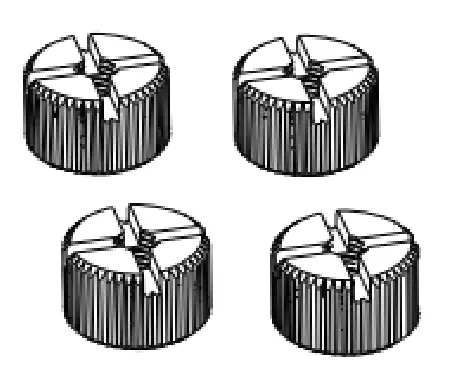

- Thumbscrews

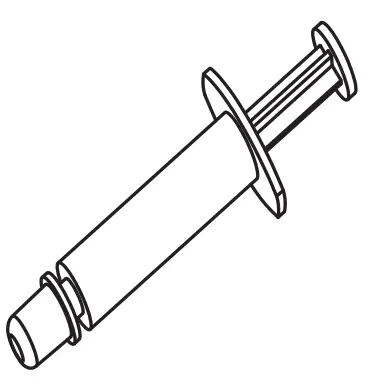

- Thermal Paste
- Insulating Gasket
Intel Installation

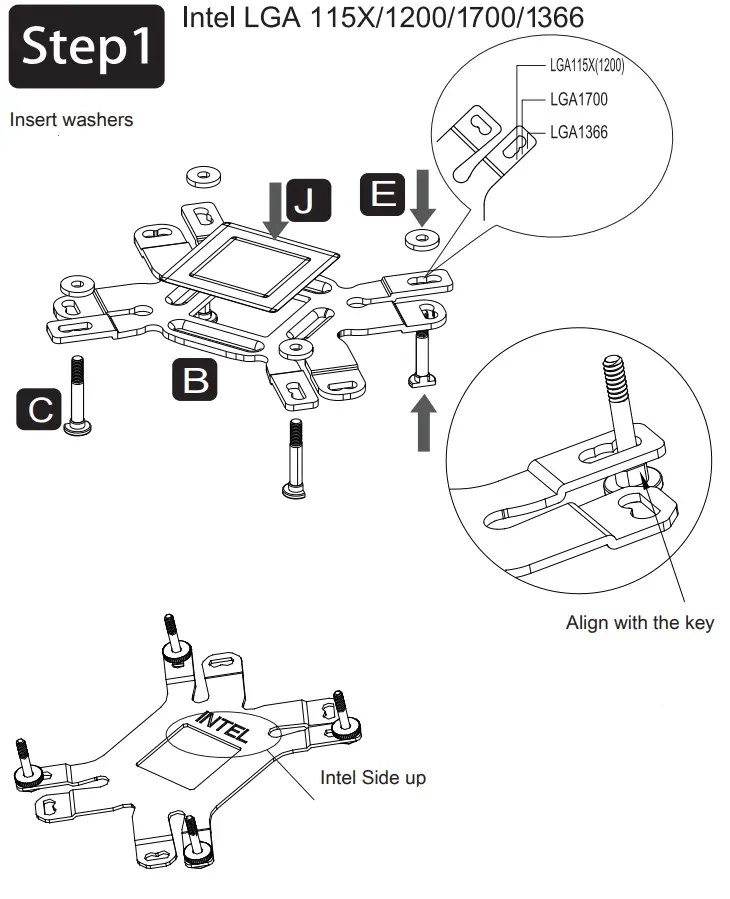

- Prepare the backplate

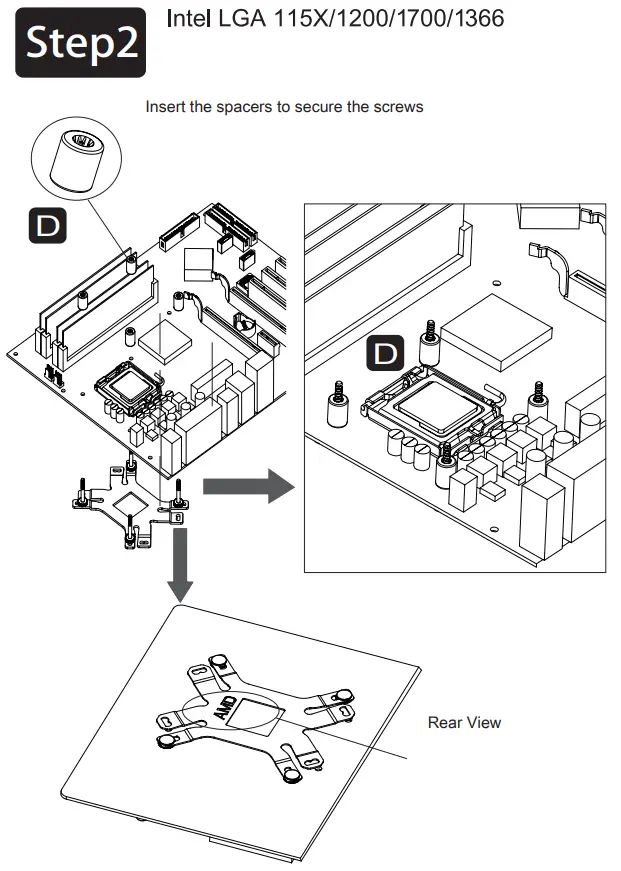

- Mounting the backplate

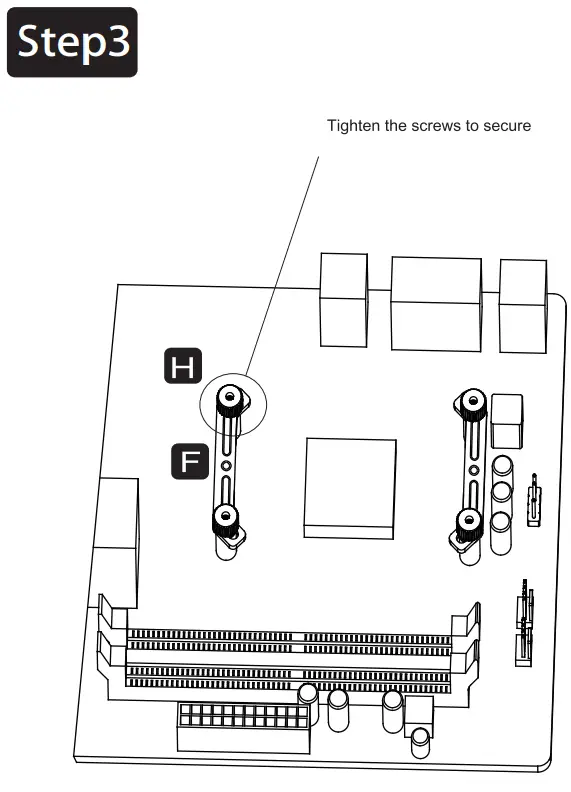

- Installing the Intel bracket

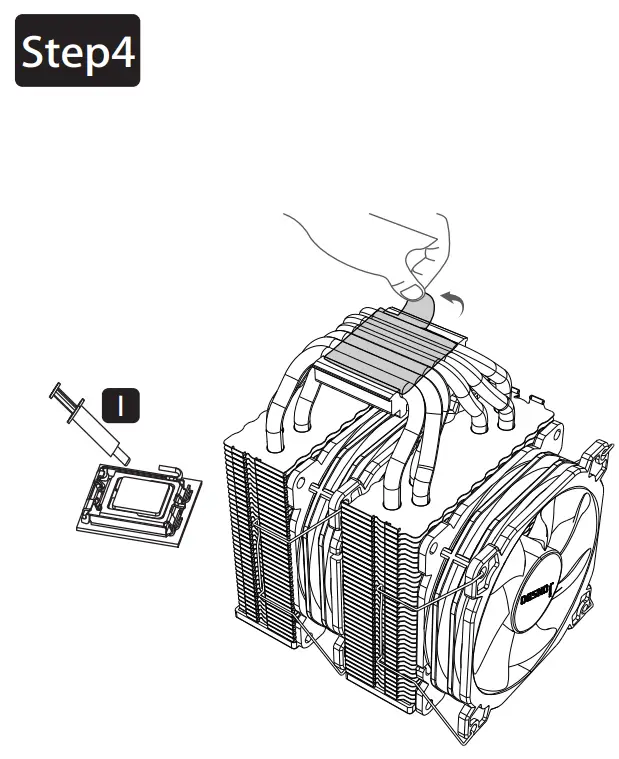

- Applying thermal paste / Remove the protection film
- Install the mounting bar
- Secure the cooler with screwdriver

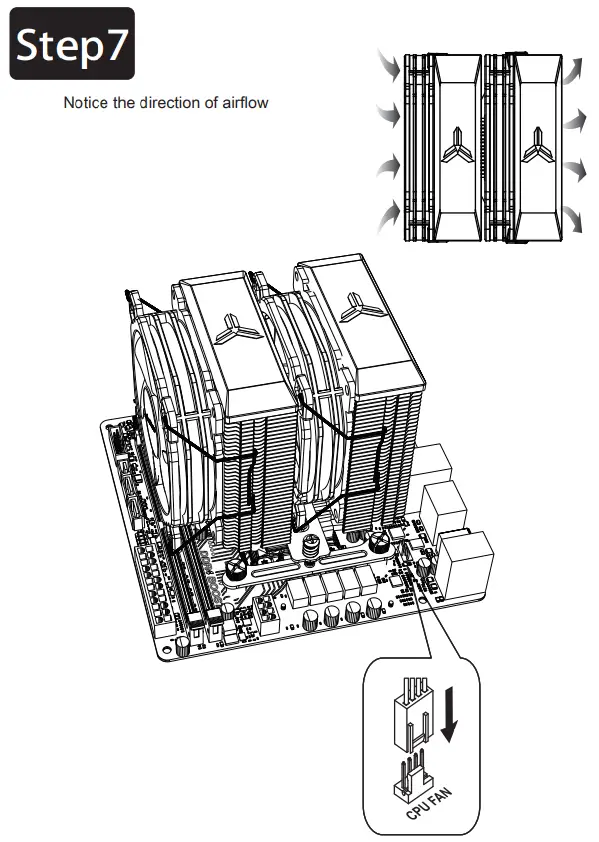

- Connect fan PWM cables to motherboard sockets
AMD Installation

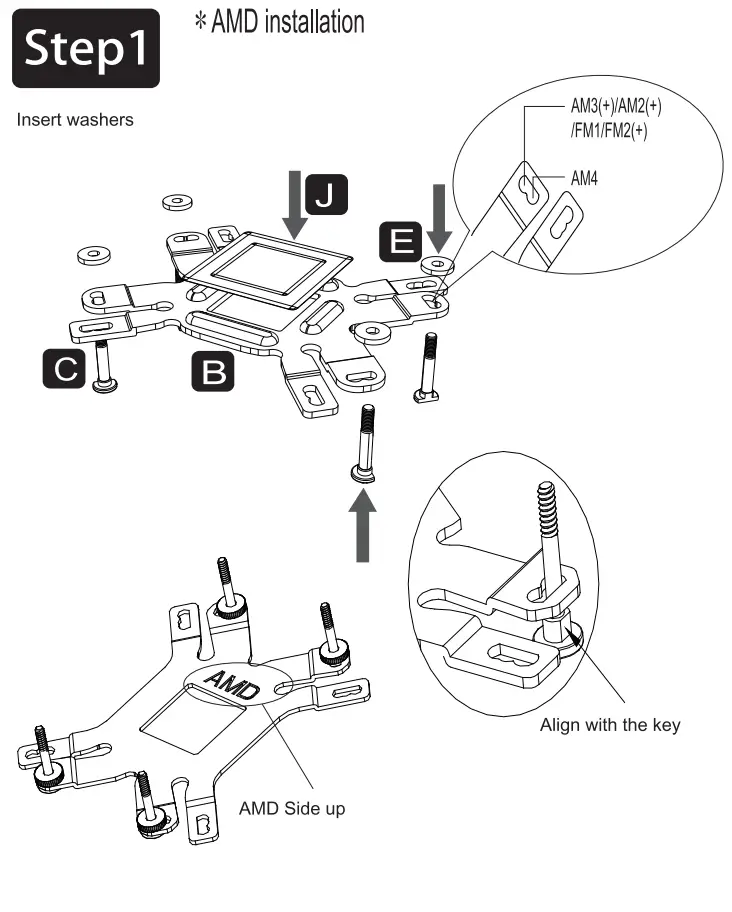

- Prepare the backplate

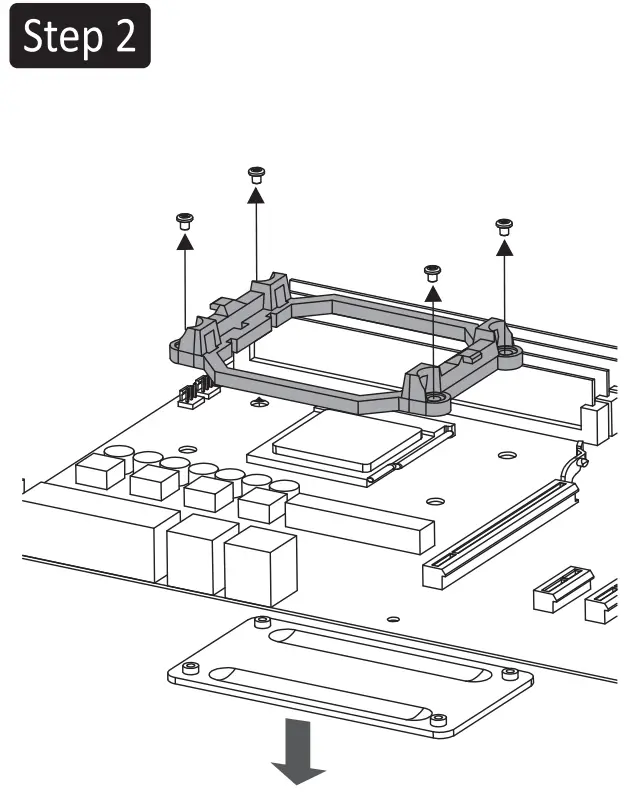

- Remove the plate retainer of the ADM retainer module

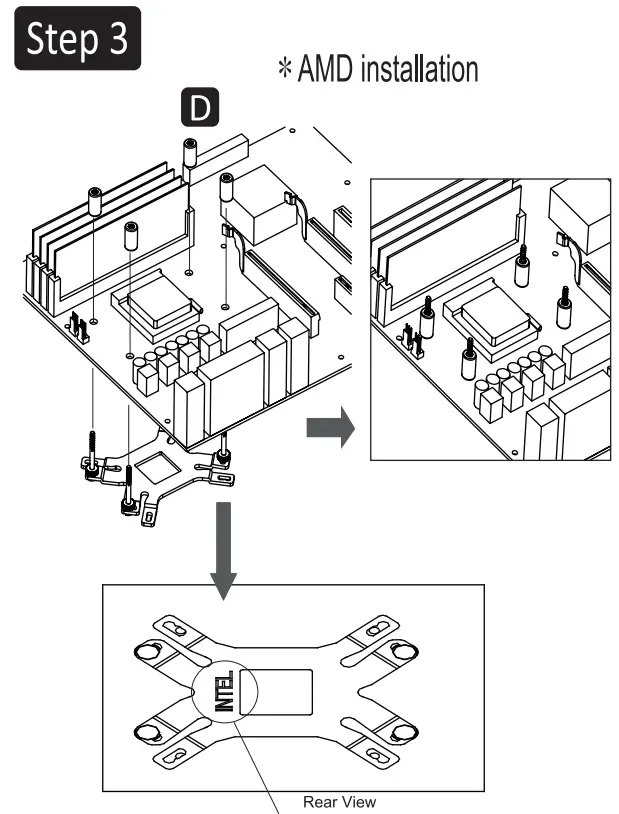

- Mounting the backplate

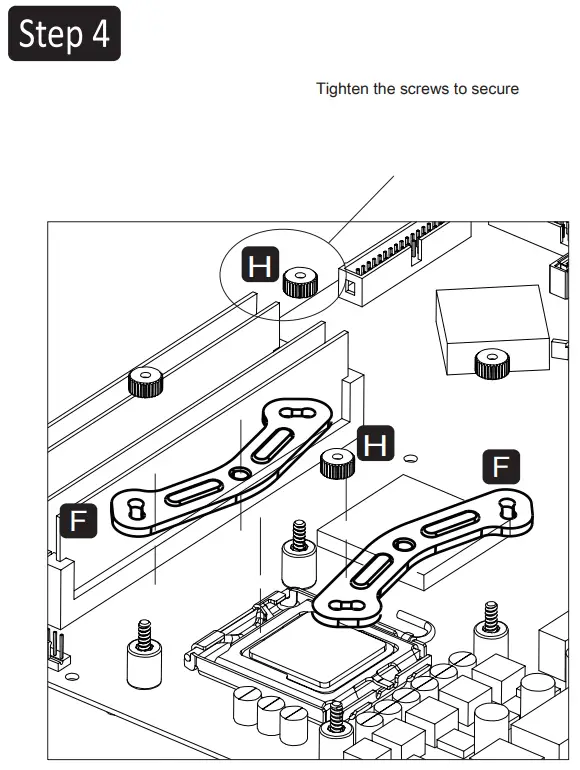

- Installing the ADM bracket

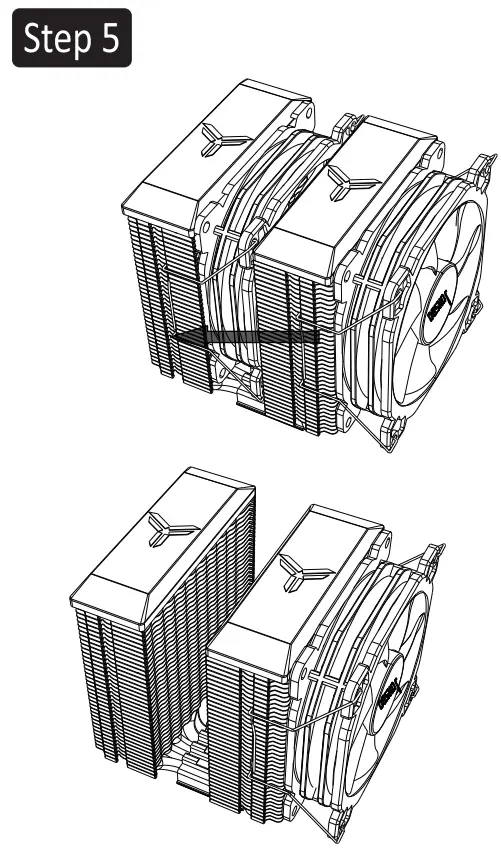

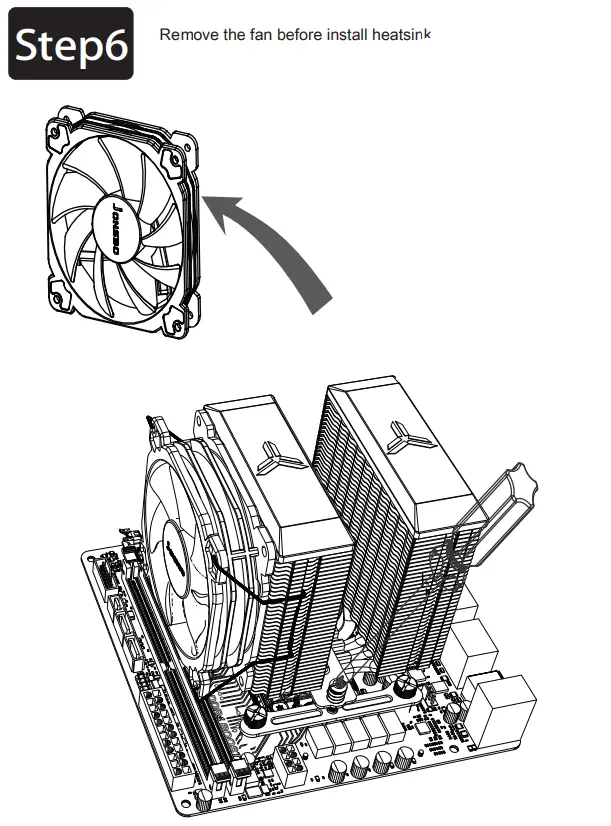

- Remove the fan before installing the heatsink

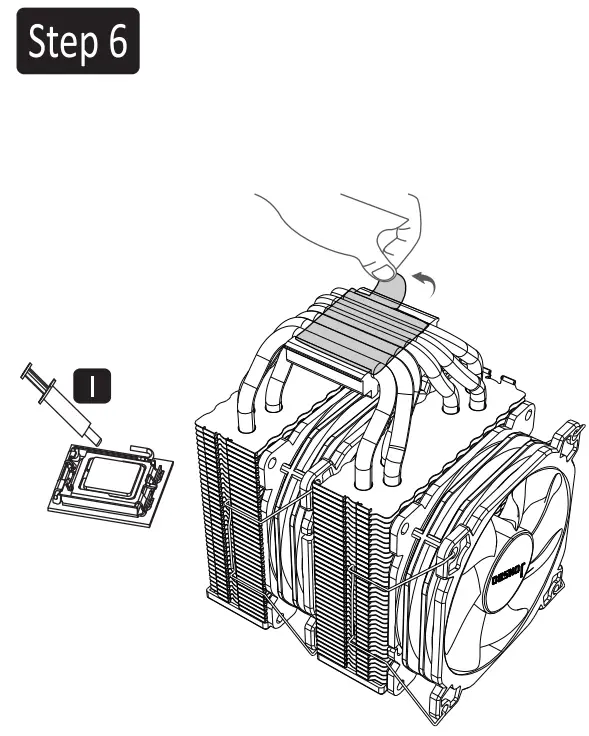

- Apply thermal paste / Remove the protection film

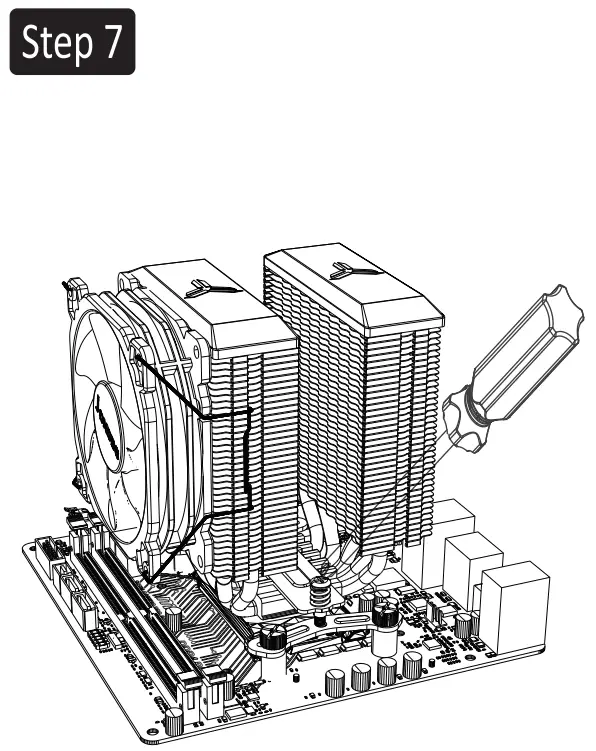

- Secure the cooler with screwdriver

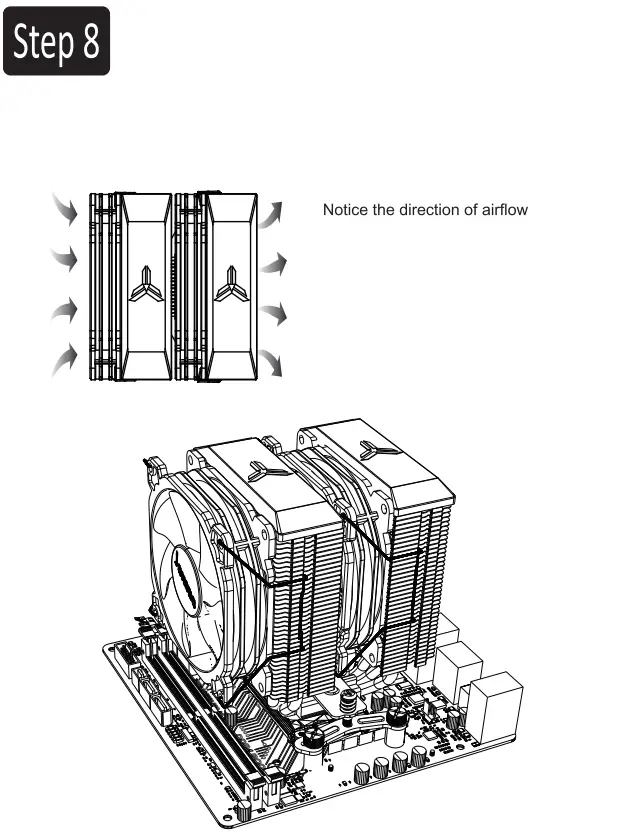

- Mounting the fan to the heatsink

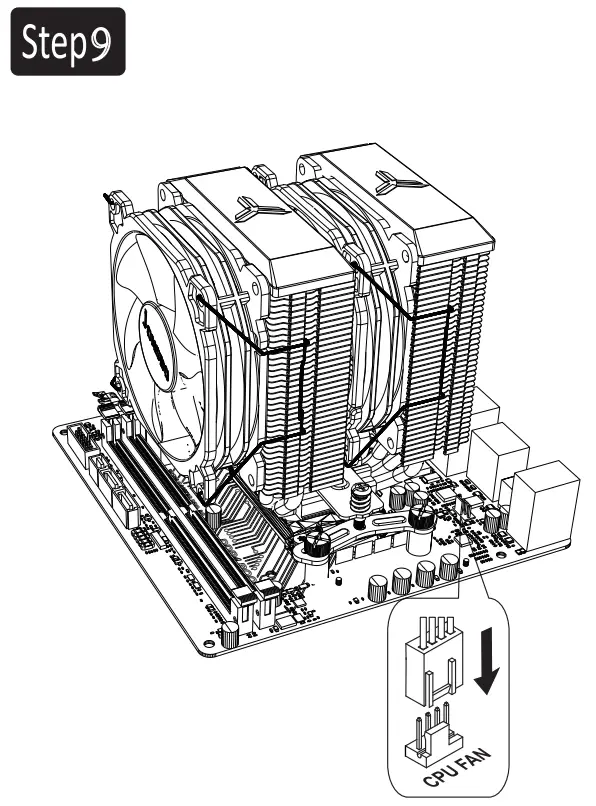

- Connect fan PWM cable to motherboard sockets
