HBIR28/2CH Bluetooth PIR Standalone Motion Sensor
User Manual
HBIR28/2CH Bluetooth PIR Standalone Motion Sensor
PIR Standalone Motion Sensor with
5.0 SIG Mesh

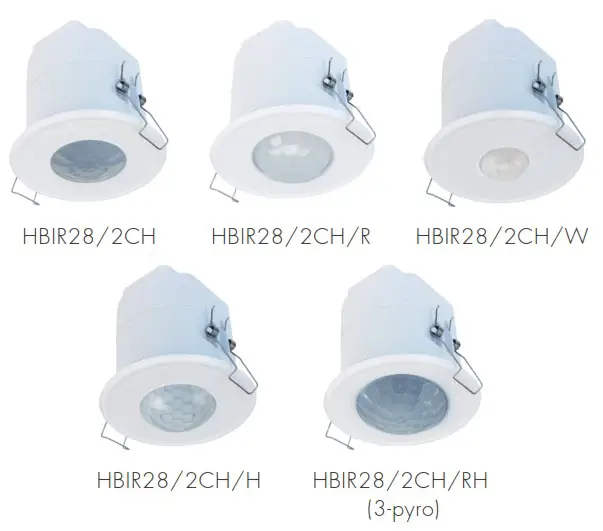

HBIR28/2CH Low-bay
HBIR28/2CH/R Reinforced Low-bay
HBIR28/2CH/W Wide range Low-bay
HBIR28/2CH/H High-bay
HBIR28/2CH/RH Reinforced High-bay

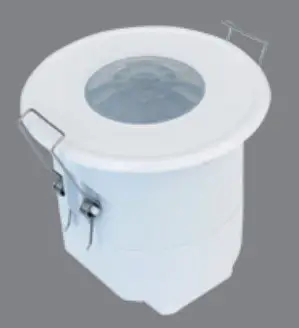

Product Description

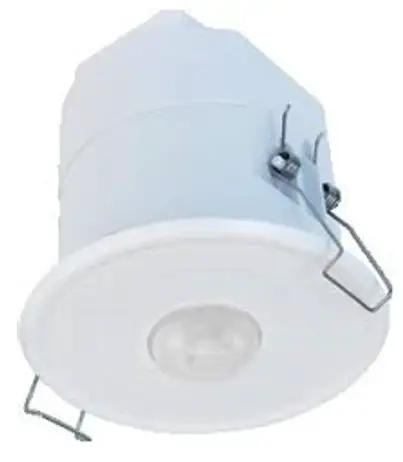

HBIR28/2CH is a Bluetooth PIR standalone motion sensor, On/Off control with two independent relay channel outputs. It has two relays built-in: one is voltage-free contact, which is NO (normally open contact) and NC (normally closed contact) 2-in-1, the other is normally closed relay output. It is ideal for typical indoor applications such as office, classroom, healthcare and other commercial areas. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects (especially for retrofit upgrade projects!). Meanwhile, simple device setup and commissioning can be done via app.
App Features
 | Quick setup mode & advanced setup mode |
 | Web app/platform for project deployment & data analysis |
 | Koolmesh Pro app on iPad for on-site conguration |
 | Floorplan feature to simplify project planning |
 | One-key device replacement |
 | Device social relations check |
 | Remote control via gateway support HBGW01 |
 | Heat map |
 | Dynamic daylight harvest auto-adaptation |
 | Grouping luminaires via mesh network |
 | Scenes |
 | Dusk/Dawn photocell (Twilight function) |
 | Push switch conguration |
 | Detailed motion sensor settings |
 | Schedule |
 | Astro timer (sunrise and sunset) |
 | Power-on status (memory against power loss) |
 | Ofine commissioning |
 | Bulk commissioning (copy and paste settings) |
 | Different permission levels via authority management |
 | Network sharing via QR code or keycode |
 | Interoperability with Hytronik Bluetooth product portfolio |
 | Compatible with EnOcean BLE switches |
 | Internet-of-Things (IoT) featured |
 | Device rmware update over-the-air (OTA) |
 | Continuous development in progress… |
Hardware Features
 | VFC: Volt-free Contact/Dry Contact ON/OFF relay switch: − 24VDC@2A − 250VDC@2A |
 | Freely select NO or NC contact |
 | Two relays built-in |
 | 2 Push inputs for exible manual control |
 | Ceiling/Surface mount box available as accessory |
 | Various PIR lens and blind inserts options |
 | User-friendly design for installation |
 | High bay version available (up to 15m in height) |
 | 5-year warranty |
5.0 SIG mesh
 |  |
| https://apps.apple.com/cn/app/koolmesh/id1483721878 | https://play.google.com/store/apps/details?id=com.koolmesh.sig |
Smortphone app for both iOS & Android platform
https://apps.apple.com/cn/app/koolmesh/id1570378349
Koolmesh Pro app for iPad
http://www.iot.koolmesh.com
Web app/platform: www.iot.koolmesh.com
Fully support EnOcean self-powered switch module PTM215B (HBES01/W & HBES01/B)
Technical Specifications
Bluetooth Transceiver
| Operation frequency | 2.4 GHz – 2.483 GHz |
| Transmission power | 4 dBm |
| Range (Typical indoor) | 10~30m |
| Protocol | 5.0 SIG Mesh |
Sensor Data
| Sensor Model | PIR detection |
| HBIR28/2CH | Installation Height : 6m Detection Range(Ø) :9m |
| HBIR28/2CH/R | Installation Height : 6m Detection Range(Ø) :10m |
| HBIR28/2CH/W | Installation Height : 6m Detection Range(Ø) :18m |
| HBIR28/2CH/H | Installation height：15m (forklift) 12m (person) Detection range (Ø)：24m |
| HBIR28/2CH/RH | Installation height：20m (forklift) 12m (person) Detection range (Ø)：40m |
| Detection angle | 360 |
Input & Output Characteristics
| Operating voltage | 220~240VAC 50/60Hz |
| Load ratings | Channel 1: 400VA Channel 2: 24VDC@2A,250VAC@2A |
| Warming-up | 20s |
Safety & EMC
| EMC standard (EMC) | EN55015, EN61000, EN61547 |
| Safety standard (LVD) | EN60669-1, EN60669-2-1AS/NZS60669-1/-2-1 |
| RED | EN300328, EN301489-1/-17 |
| Certification | CB, CE , EMC, RED, RCM, UKCA |
Environment
| Operation temperature | Ta: -20O C ~ +50OC |
| IP rating | IP20 |

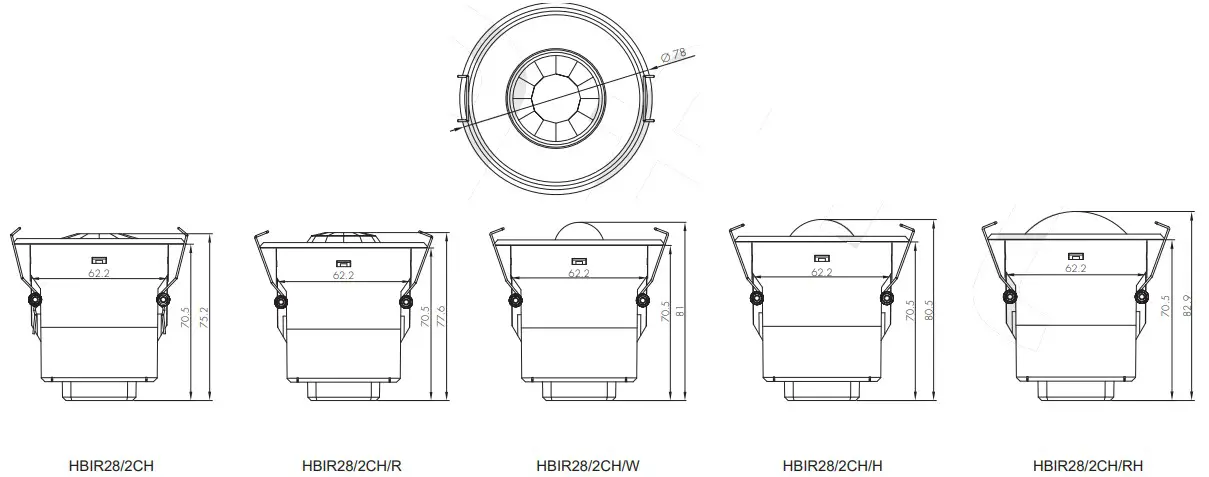

Mechanical Structure & Dimensions

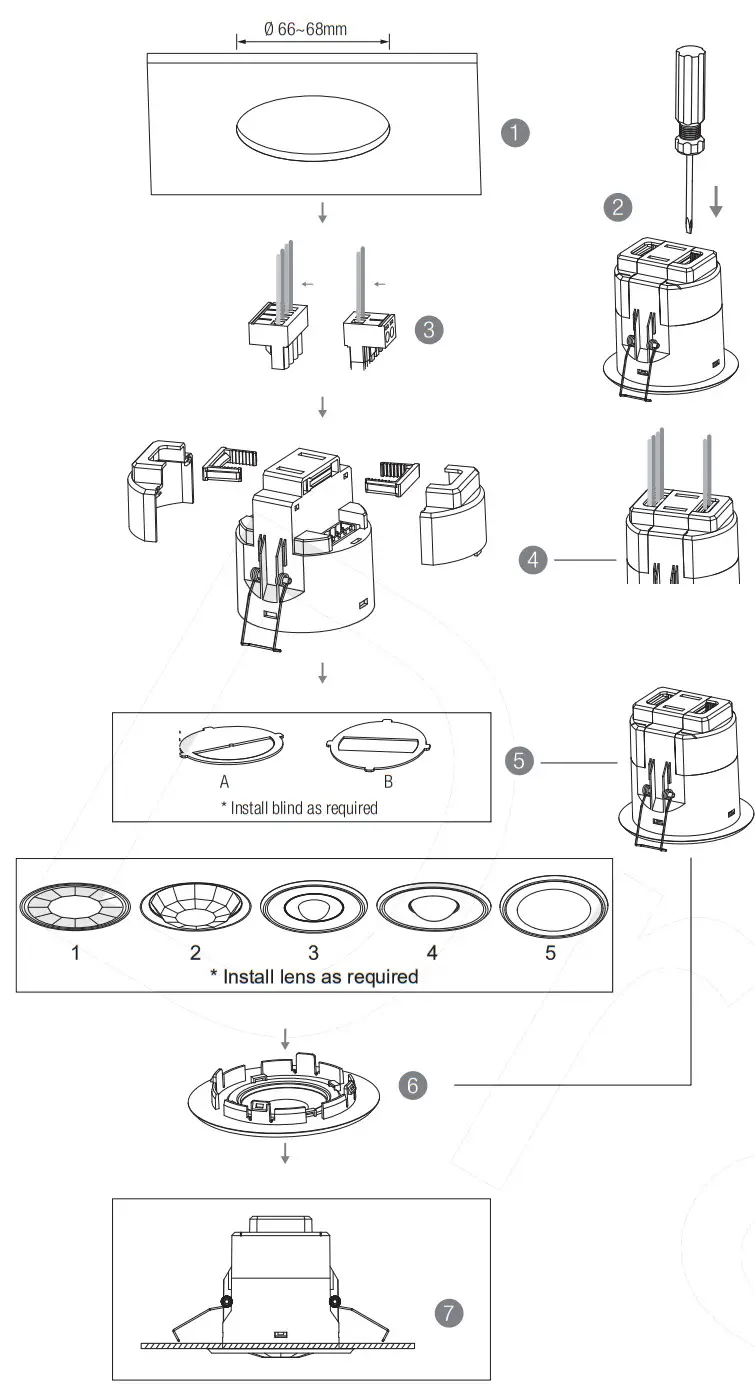

- Ceiling (drill hole Ø 66~68mm)
- Carefully prise off the cable clamps.
- Make connections to the pluggable terminal blocks.
- Insert plug connectors and secure using the provided cable clamps, then clip terminal covers to the base.
- Fit detection blind (if required) and desired lens.
- Clip fascia to body.
- Bend back springs and insert into ceiling.
Wire Preparation
Pluggable screw terminal. It is recommended to make connections to the terminal before fitting to the sensor.

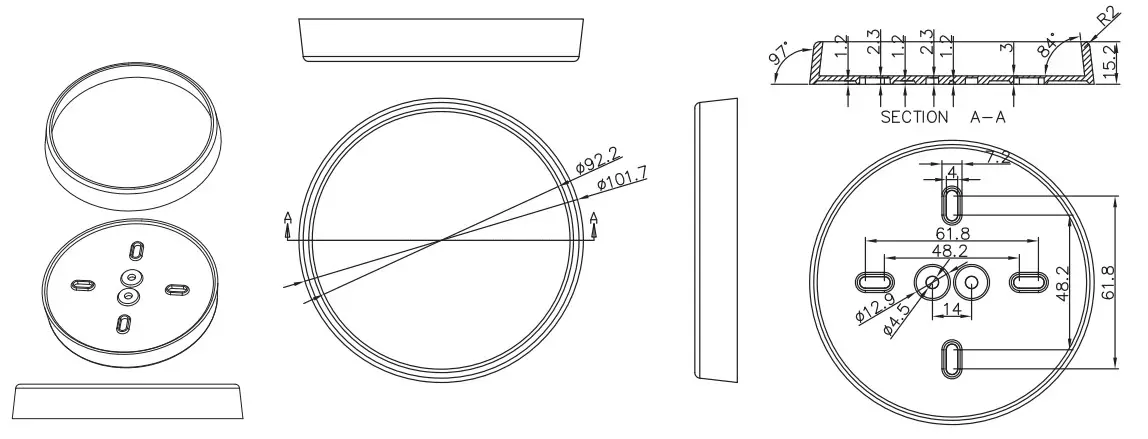

Big and small silicon gasket used to make IP65 degree protection when HIR23/D2 series device mounted into HA03 housing for ceiling mount
small silicon water-proof gasket dimension(size:mm)
big silicon water-proof gasket dimension(size:mm)
Detection Pattern & Optional Accessories
1. HBIR28/2CH (Low-bay)

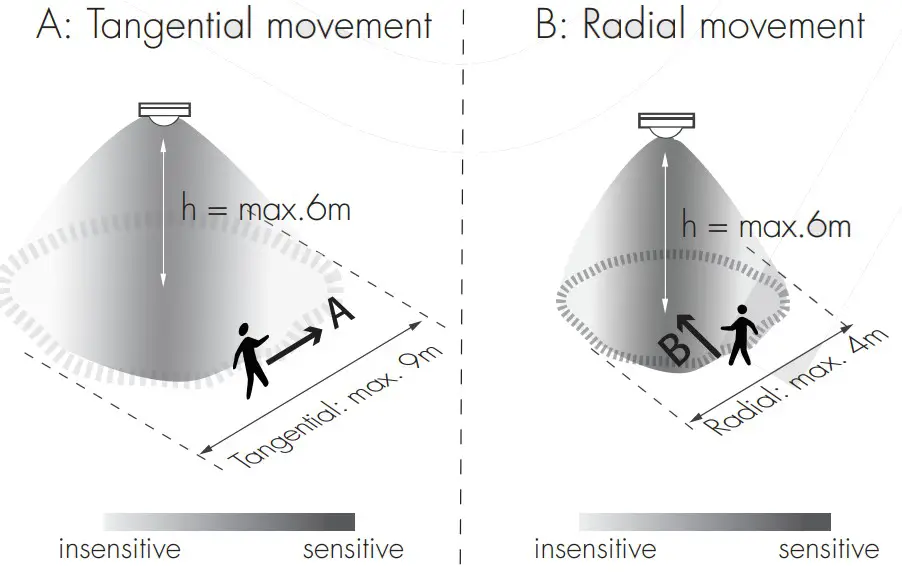

HBIR28/2CH: Low-bay flat lens detection pattern for single person @ Ta = 20OC
(Recommended ceiling mount installation height 2.5m-6m)
| Mount height | Tangential (A) | Radial (B) |
| 2.5m | max 50m2 (0 = 8m) | max 13m2 (0 = 4m) |
| 3m | max 64m’ (0 = 9m) | max 13m’ (0 = 4m) |
| 4m | max 38m2 (0 = 7m) | max 13m2(0 = 4m) |
| 5m | max 38m’ (0 = 7m) | max 13m2(0 = 4m) |
| 6m | max 38m’ (0 = 7m) | max 13m2(0 = 4m) |

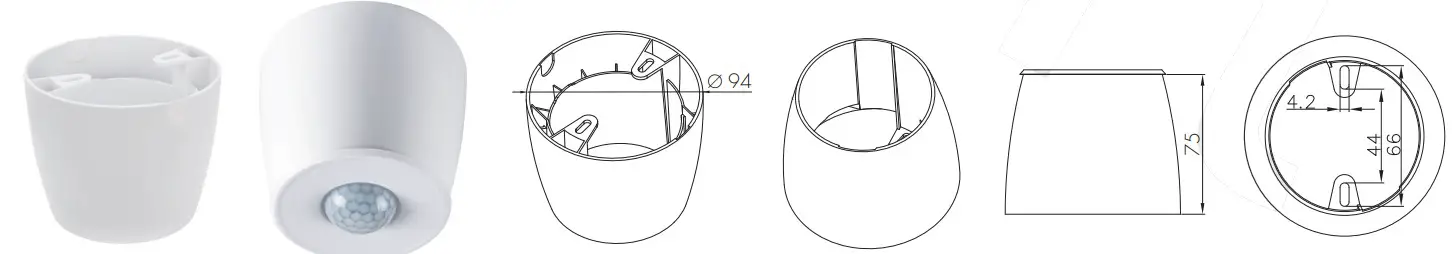

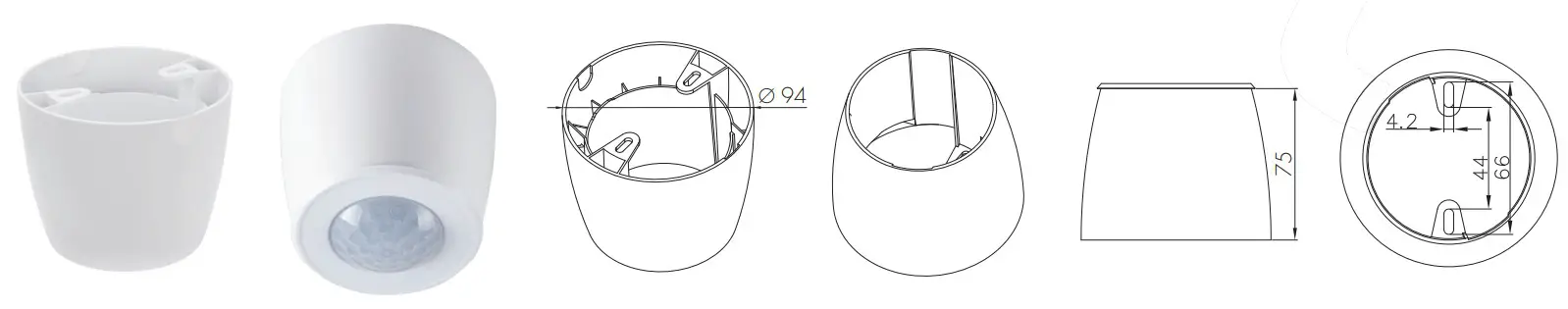

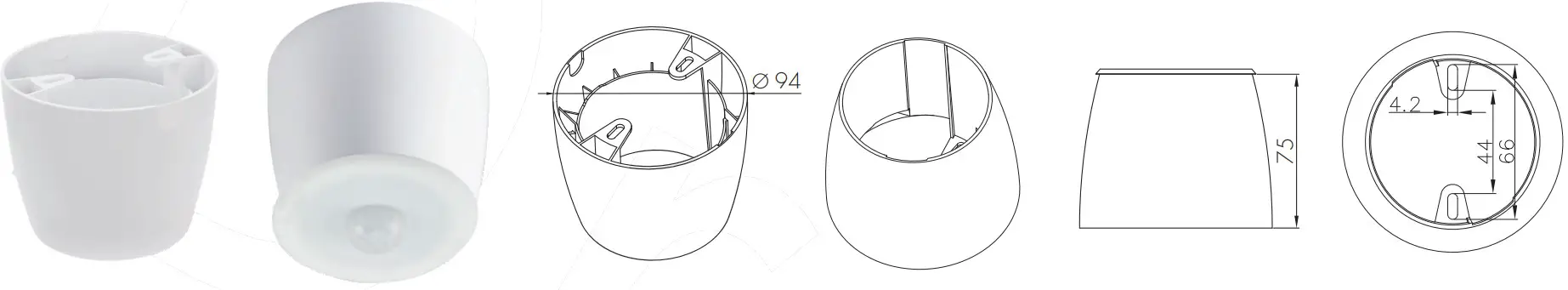

Optional Accessory — Ceiling/Surface Mount Box: HA03

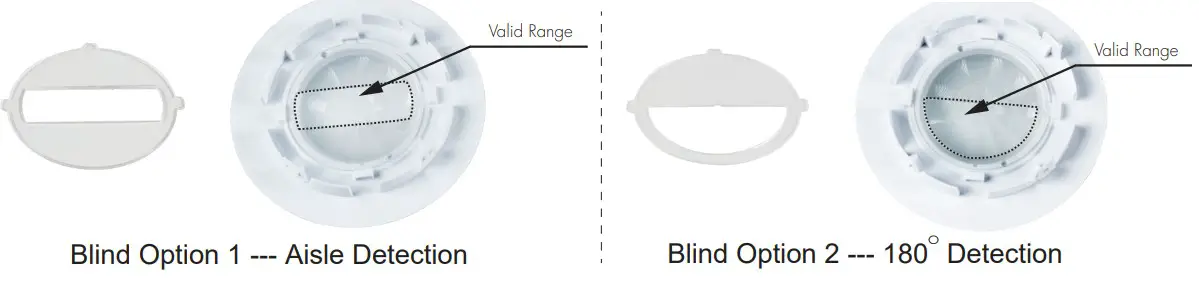

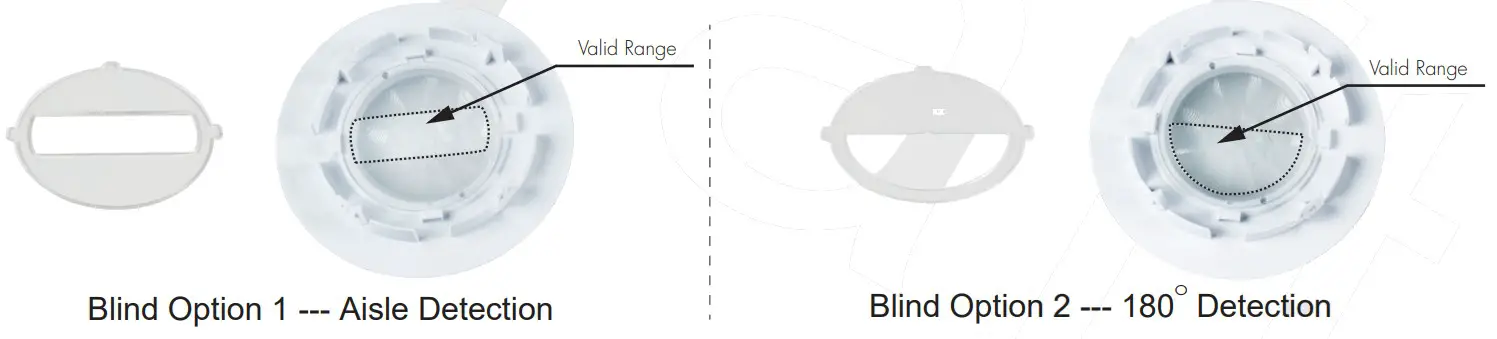

Optional Accessory — Blind Insert for Blocking Certain Detection Angles

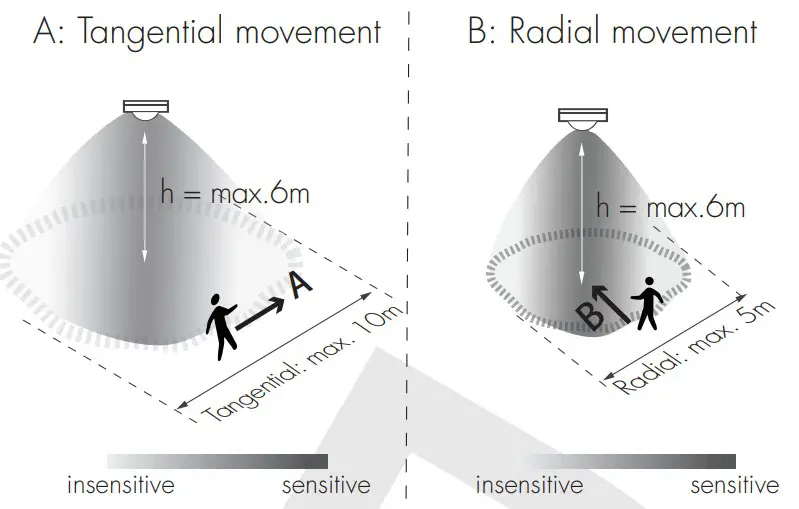

2. HBIR28/2CH/R (Reinforced Low-bay)HBIR28/2CH/R: Low-bay convex lens detection pattern for single person @ Ta = 20OC
(Recommended ceiling mount installation height 2.5m-6m)
| Mount height | Tangential (A) | Radial (B) |
| 2.5m | max 79m2 (Ø = 10m) | max 20m 2 (Ø = 5m) |
| 3m | max 79m 2 (Ø = 10m) | max 20m2 (Ø = 5m) |
| 4m | max 64m2 (Ø = 9m) | max 20m 2 (Ø = 5m) |
| 5m | max 50m2 (Ø = 8m) | max 20m 2 (Ø = 5m) |
| 6m | max 50m 2(Ø = 8m) | max 20m 2 (Ø = 5m) |

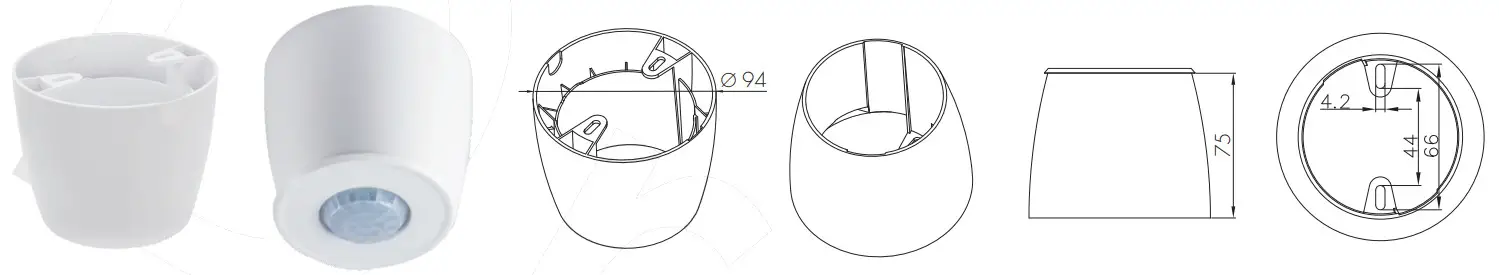

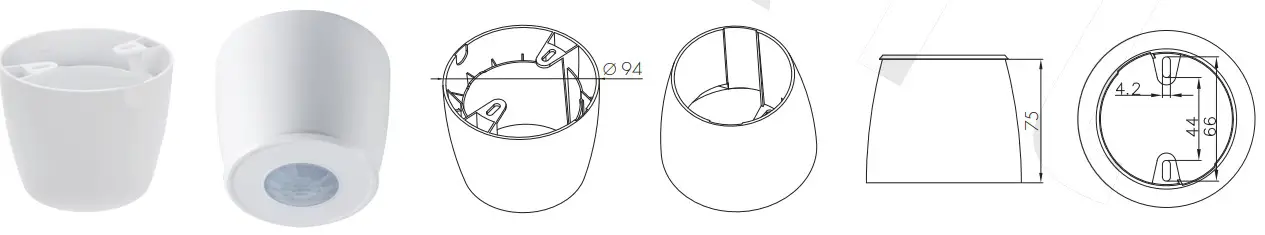

Optional Accessory — Ceiling/Surface Mount Box: HA03
Optional Accessory — Blind Insert for Blocking Certain Detection Angles

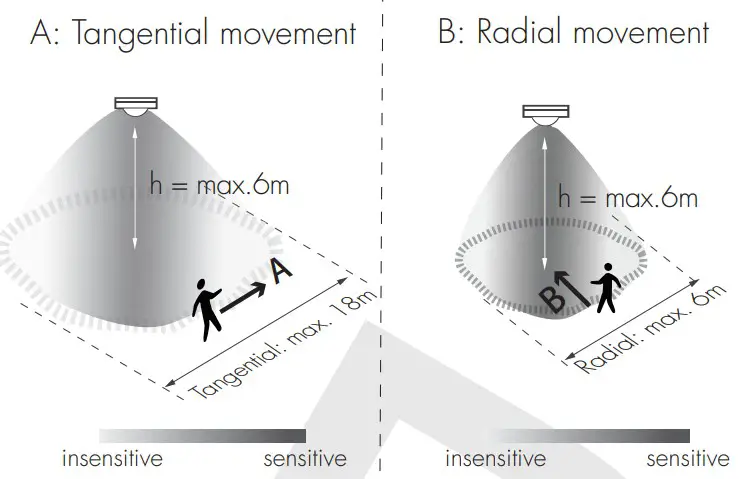

3. HBIR28/2CH/W (Wide range Low-bay)
HBIR28/2CH/W: Low-bay convex lens detection pattern for single person @ Ta = 20OC
(Recommended ceiling mount installation height 2.5m-6m)
| Mount height | Tangential (A) | Radial (B) |
| 2.5m | max 254m2(Ø = 18m) | max 28m2 (Ø = 6m) |
| 3m | max 254m 2 (Ø = 18m) | max 28m2 (Ø = 6m) |
| 4m | max 154m2 (Ø = 14m) | max 28m 2 (Ø = 6m) |
| 5m | max 113m 2(Ø = 12m) | max 28m 2 (Ø = 6m) |
| 6m | max 79m 2 (Ø = 10m) | max 13m 2 (Ø = 4m) |
Optional Accessory — Ceiling/Surface Mount Box: HA03

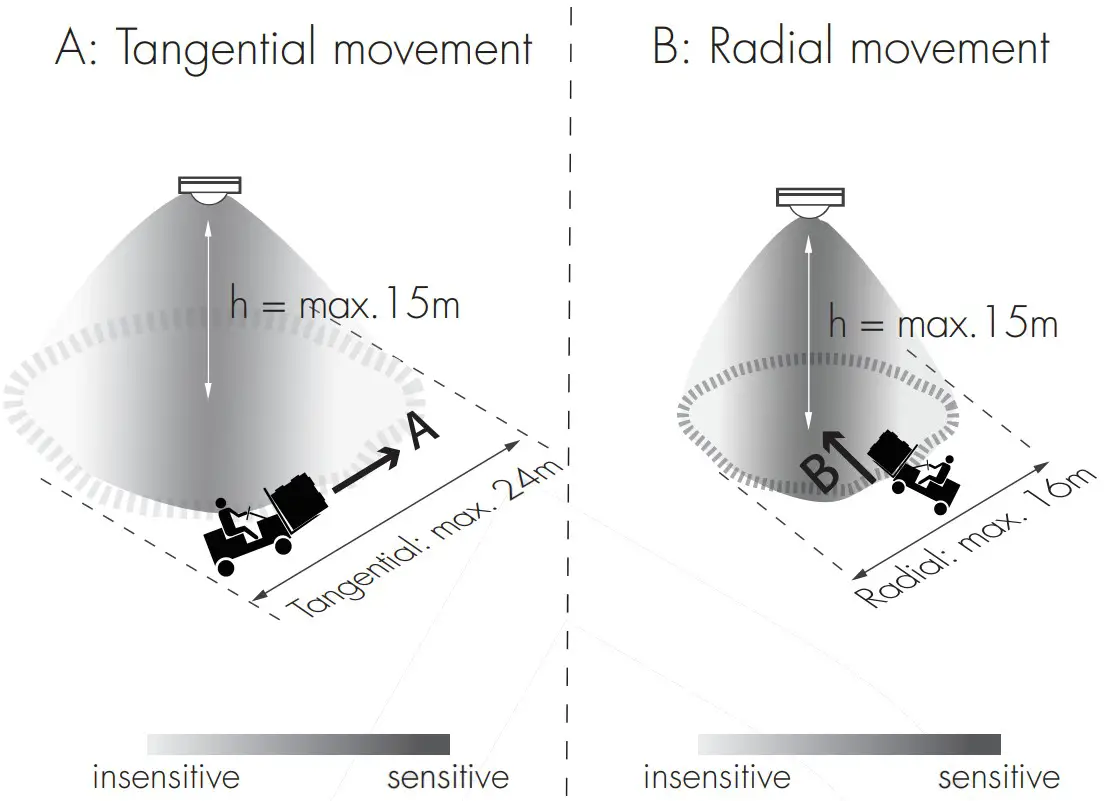

4. HBIR28/2CH/H (High-bay)HBIR28/2CH/H: High-bay lens detection pattern for forklift @ Ta = 20OC
(Recommended ceiling mount installation height 10m-15m)
| Mount height | Tangential (A) | Radial (B) |
| 10m | max 380m2 (Ø = 22m) | max 201m2 (Ø = 16m) |
| 11m | max 452m 2 (Ø = 24m) | max 201m2 (Ø = 16m) |
| 12m | max 452m2 (Ø = 24m) | max 201m 2 (Ø = 16m) |
| 13m | max 452m 2 (Ø = 24m) | max 177m 2 (Ø = 15m) |
| 14m | max 452m 2(Ø = 24m) | max 133m 2 (Ø = 13m) |
| 15m | max 452m 2 (Ø = 24m) | max 113m 2 (Ø = 12m) |

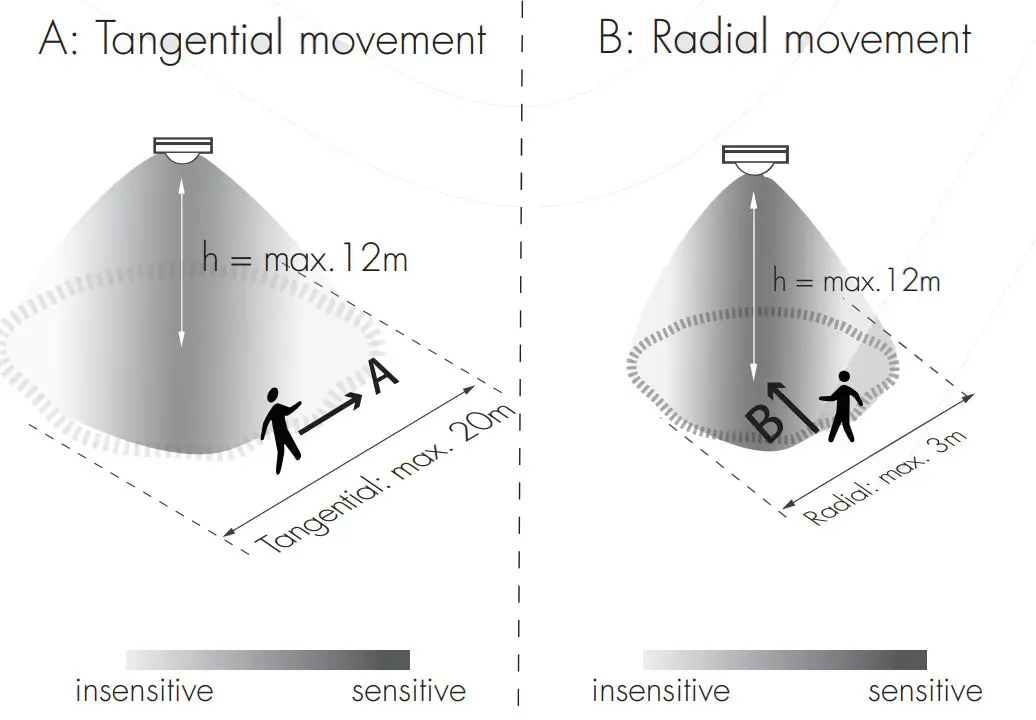

HBIR28/2CH/H: High-bay lens detection pattern for single person @ Ta = 20O C (Recommended ceiling mount installation height 2.5m-12m)
| Mount height | Tangential (A) | Radial (B) |
| 2.5m | max 50m 2 (Ø = 8m) | max 7m 2 (Ø = 3m) |
| 6m | max 104m2 (Ø = 11.5m) | max 7m 2 (Ø = 3m) |
| 8m | max 154m 2 (Ø = 14m) | max 7m 2 (Ø = 3m) |
| 10m | max 227m 2 (Ø = 17m) | max 7m 2 (Ø = 3m) |
| 11m | max 269m 2 (Ø = 18.5m) | max 7m 2 (Ø = 3m) |
| 12m | max 314m 2 (Ø = 20m) | max 7m 2 (Ø = 3m) |
Optional Accessory — Ceiling/Surface Mount Box: HA03

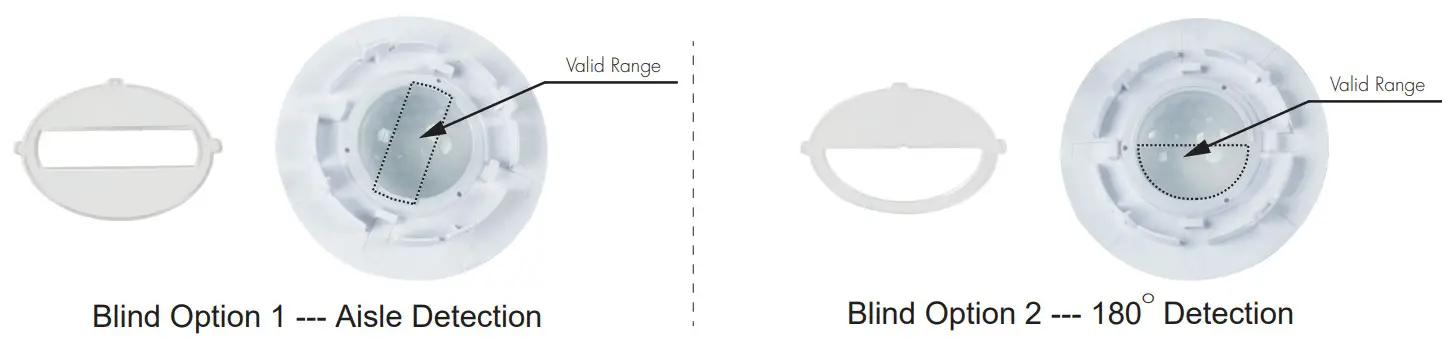

Optional Accessory — Blind Insert for Blocking Certain Detection Angles

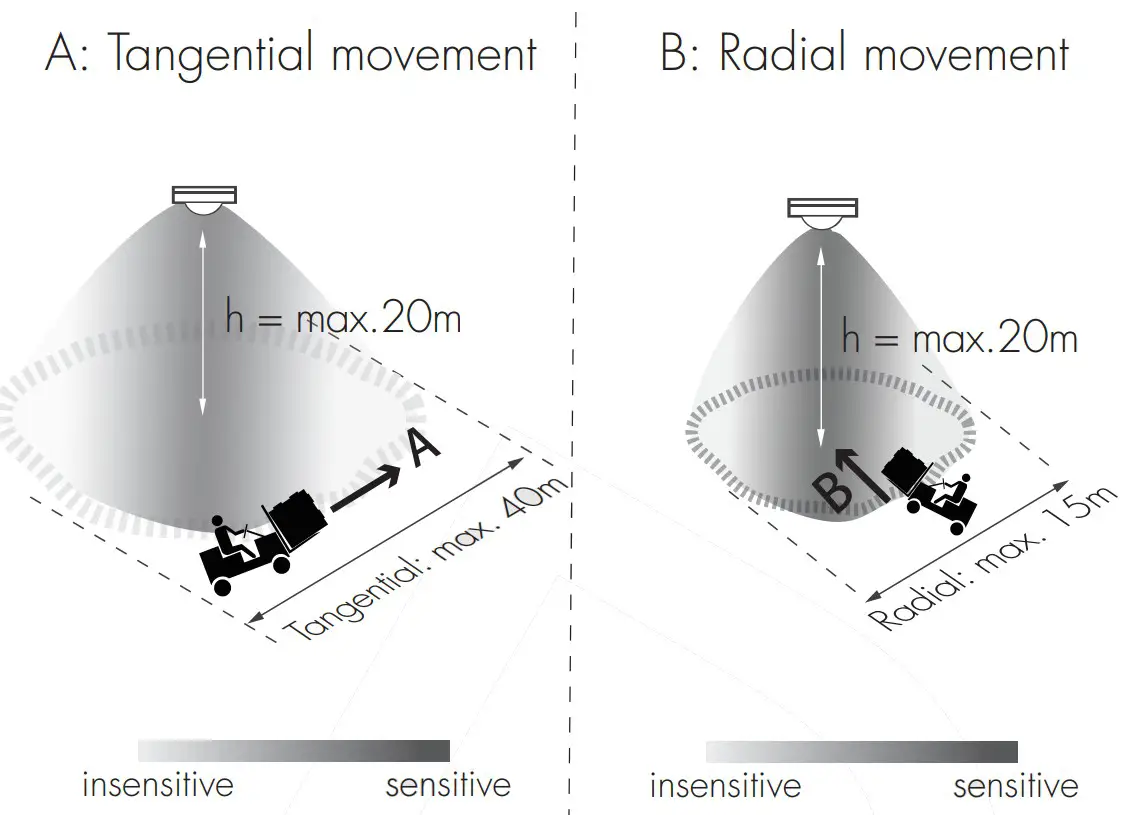

5. HBIR28/2CH/RH (Reinforced High-bay with 3-Pyro)HBIR28/RH/2CH: Reinforced high-bay lens detection pattern for forklift @ Ta = 20OC
(Recommended ceiling mount installation height 10m-20m)
| Mount height | Tangential (A) | Radial (B) |
| 10m | max 346m 2(Ø = 21m) | max 177m 2 (Ø = 15m) |
| 11m | max 660m 2 (Ø = 29m) | max 177m 2 (Ø = 15m) |
| 12m | max 907m 2 (Ø = 34m) | max 154m 2 (Ø = 14m) |
| 13m | max 962m2 (Ø = 35m) | max 154m 2 (Ø = 14m) |
| 14m | max 1075m 2 (Ø = 37m) | max 113m 2 (Ø = 12m) |
| 15m | max 1256m 2 (Ø = 40m) | max 113m 2 (Ø = 12m) |
| 20m | max 707m 2 (Ø = 30m) | max 113m 2 (Ø = 12m) |

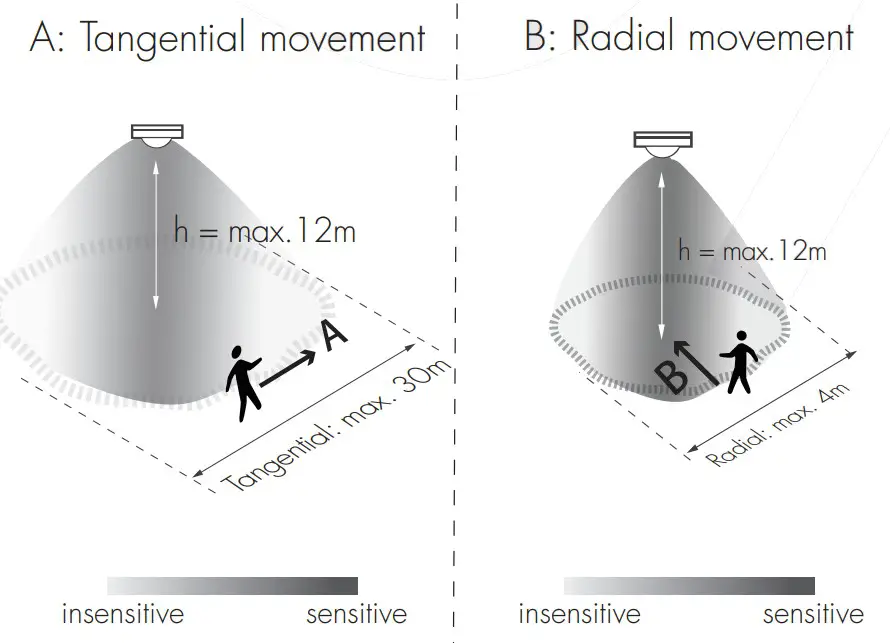

HBIR28/2CH/RH: Reinforced high-bay lens detection pattern for single person @ Ta = 20 OC
(Recommended ceiling mount installation height 2.5m-12m)
| Mount height | Radial (B) | Tangential (A) |
| 2.5m | max 7m 2 (Ø = 3m) | max 38m 2 (Ø = 7m) |
| 6m | max 7m 2 (Ø = 3m) | max 154m 2 (Ø = 14m) |
| 8m | max 7m 2 (Ø = 3m) | max 314m 2 (Ø = 20m) |
| 10m | max 13m 2 (Ø = 4m) | max 531m 2 (Ø = 26m) |
| 11m | max 13m 2 (Ø = 4m) | max 615m 2 (Ø = 28m) |
| 12m | max 13m 2 (Ø = 4m) | max 707m 2 (Ø = 30m) |
Optional Accessory — Ceiling/Surface Mount Box: HA03

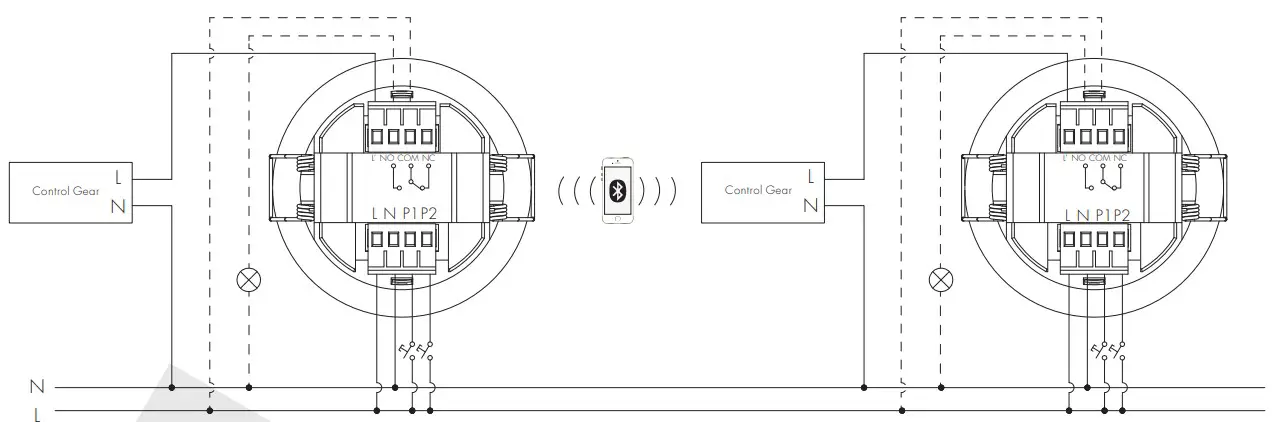

Wiring Diagram
Original status (stand-by)
*By connecting L and COM, the VFC (voltage-free contact) channel can also be turned into a common Switch L output to achieve separate control of the two Switch L channels.
Dimming Interface Operation Notes
Switch-Dim

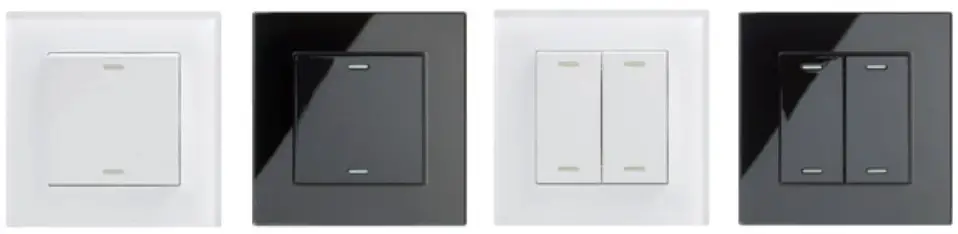

The provided Switch-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switches.
Detailed Push switch configurations can be set on Koolmesh app.
| Switch Function | Action | Descriptions |
| Push switch | Short press (<1 second) * Short press has to be longer than 0.1s, or it will be invalid. | – Turn on/off – Recall a scene – Turn on only – Quit manual mode – Turn off only – Do nothing |
| Double push | – Turn on only – Quit manual mode – Turn off only – Do nothing – Recall a scene | |
| Long press (1 second) | – Do nothing | |
| Simulate sensor | – Upgrade a normal on/off motion sensor to a Bluetooth controlled motion sensor |
Additional Information / Documents
- To learn more about detailed product features/funcvtions, please refer to www.hytronik.com/download->knowledge->Introduction of App Scenes and Product Functions
- Regarding precautions for Bluetooth product installation and operation, please kindly refer to www.hytronik.com/download->knowledge->Bluetooth Products – Precautions for Product Installation and Operation
- Regarding precautions for PIR Sensors installation and operation, please kindly refer to www.hytronik.com/download->knowledge->PIRSensors-Precautions for Product Installation and Operation
- Data sheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/bluetoothtechnology->Bluetooth Sensors
- Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download->knowledge->Hytronik Standard Guarantee Policy Draft
Subject to change without notice.
Edition: 15 Jun. 2021 Ver. Draft
