Hytronik Hir61 Pir Motion Sensor Instruction Manual (+ PDF)

Installation and Instruction Manual
DALI PIR Motion Sensor Compatible with Zhaga Book 20
HIR61 HIR61/R
Low bay Mid bay with IP65

Contents hide

Sensor principle	PIR detection
Operation voltage	9.5~22.5VDC
Consumption current	Max.10mA(no LED) Max.11mA(with LED)
Detection range *	HIR61 Max installation height：3m Max detection range (Ø)：12m HIR61/R Max installation height：8m (for person) Max installation height：12m (for forklift) Max detection range (Ø)：14m
Lux reading range	< 1000 lux
Detection angle	360°
Operation temperature	-40°C ~ +70°C
Storage temperature	Ta: -20°C ~ 50°C
Relative humidity	10 ~ 90%
IP rating	IP20
CE	EN55015, EN61547 , EN61000-3-2/-3-3, EN62386-101/103, EN62386-303/304, Zhaga Book 20
Warming-up	5s

* The detection range is heavily inﬂuenced by sensor placement (angle) and different walking paces.
It may be reduced under certain conditions.

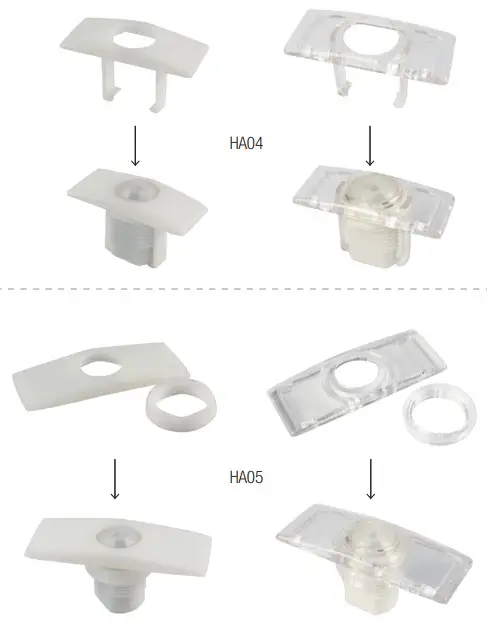

Optional Accessories

* Default: white housing, transparent version can be requested.

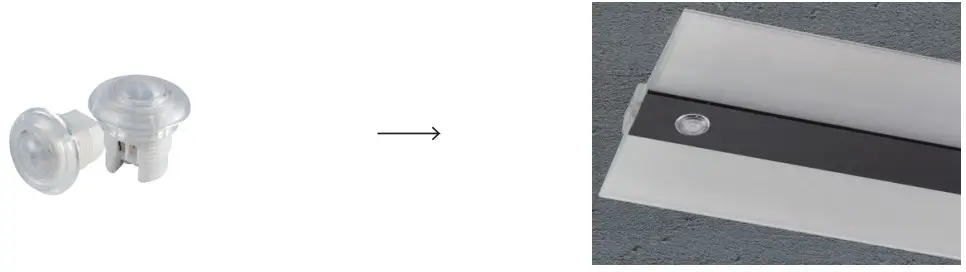

Demenstration of installation for transparent version

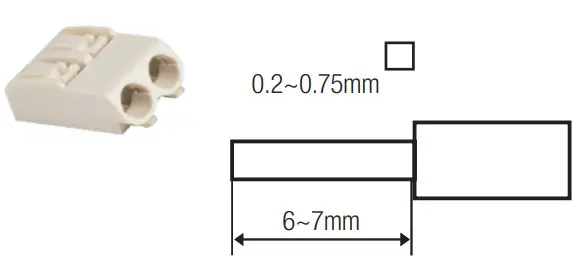

Wire Preparation

To make or release the wire from the terminal, use a screwdriver to push down the button.

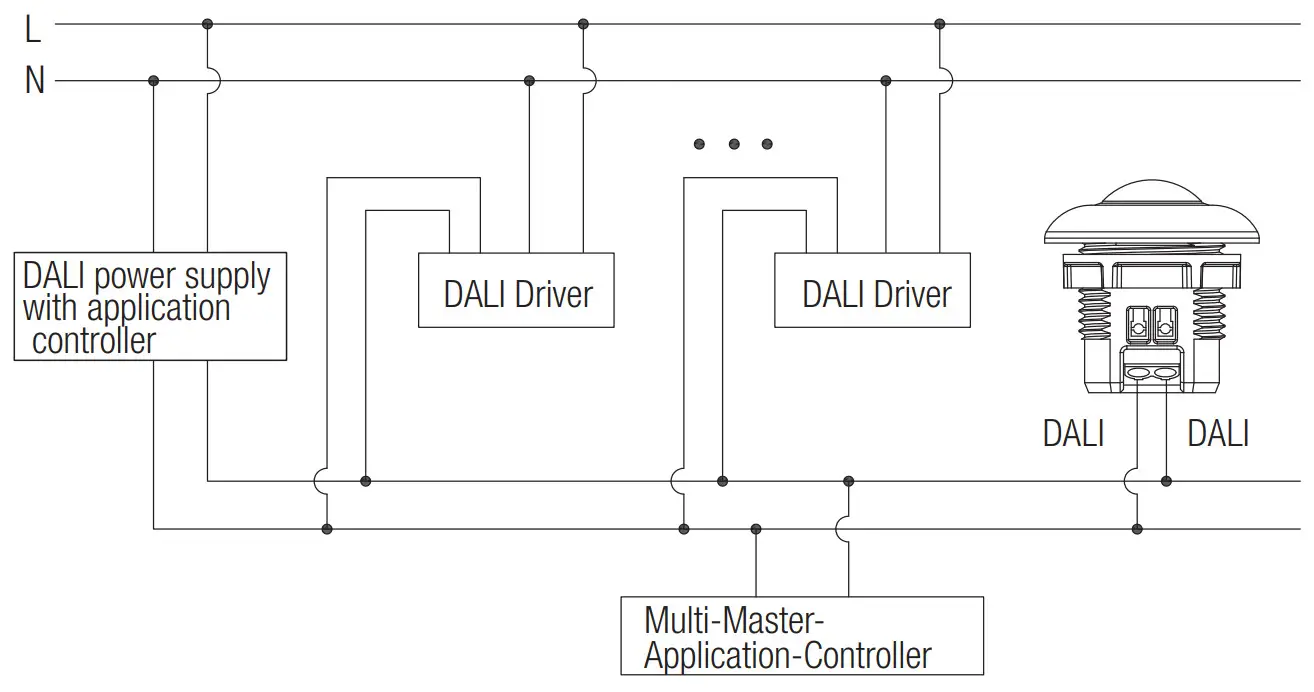

Wiring Diagram

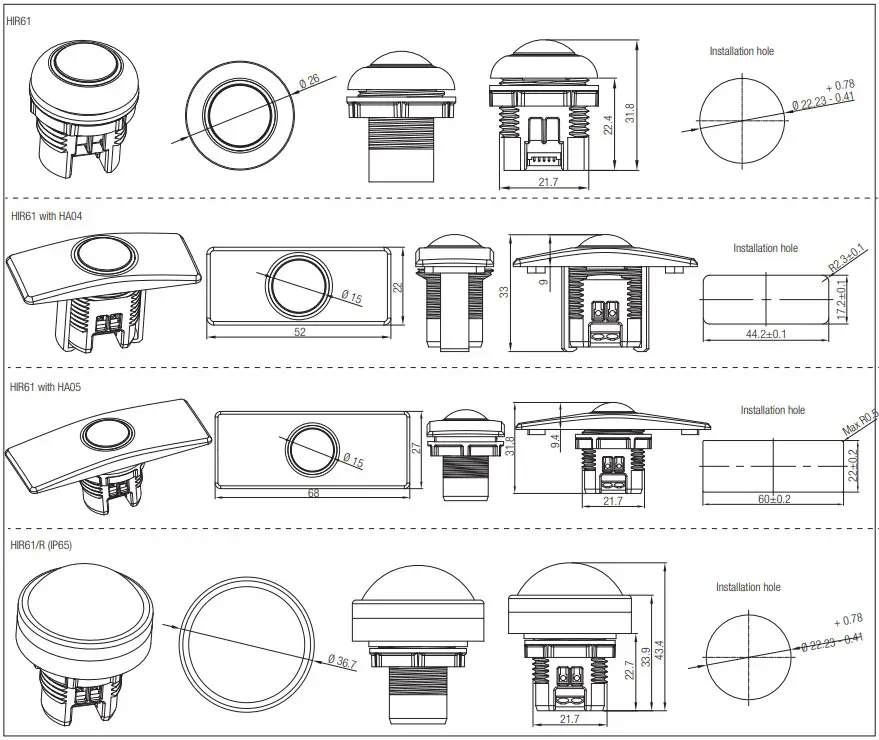

Mechanical Structure & Dimensions

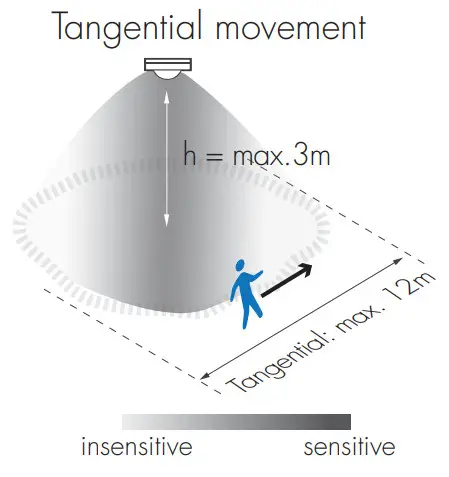

Detection Pattern – – Diagram 1
The data below is tested under following conditions:

Single person walking;
Sensor not connected to any driver that may have soft-on period;
Testing temperature Ta = 20°C;
The testing is conducted in an open and spacious indoor field, without noticeable obstacles or influences that may affect PIR performances.

Mount height	Tangential Movement
3m	max 113m2 (Ø = 12m)

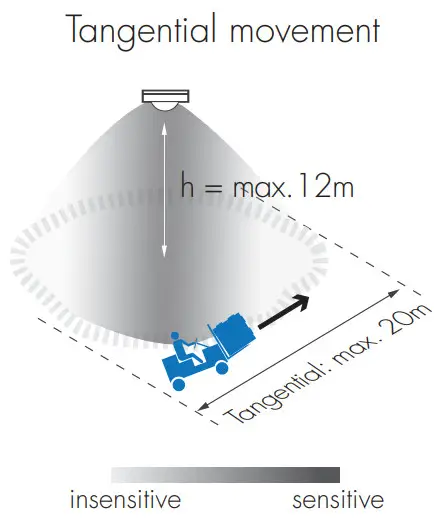

Detection Pattern – – Diagram 2
The data below is tested under following conditions:

Forklift driving;
Sensor not connected to any driver that may have soft-on period;
Testing temperature Ta = 20°C;
The testing is conducted in an open and spacious indoor field, without noticeable obstacles or influences that may affect PIR performances.

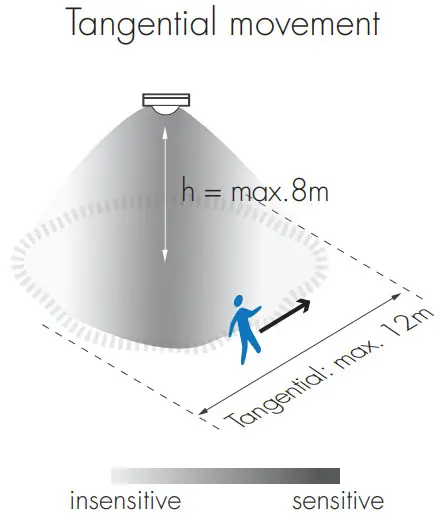

Detection Pattern – – Diagram 3
The data below is tested under following conditions:

Single person walking;
Sensor not connected to any driver that may have soft-on period;
Testing temperature Ta = 20°C;
The testing is conducted in an open and spacious indoor field, without noticeable obstacles or influences that may affect PIR performances.

Regarding precautions for PIR Sensors installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors – Precautions for Product Installation and Operation
Data sheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/Motion Sensors ->Stand-alone Sensors
Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
