HIR23-D2 PIR Motion Sensor
Instruction Manual
Technical Specifications
| Sensor Model | PIR detection |
| HIR23/D2 | Installation height: 6m Detection Range(Ø) :9m |
| HIR23/D2/R | Installation height: 6m Detection Range(Ø) :10m |
| HIR23/D2/W | Installation height: 6m Detection Range(Ø): 18m |
| HIR23/D2/H | Installation height: 15m (forklift) 12m (person) Detection range (Ø): 24m |
| HIR23/D2/RH | Installation height: 20m (forklift) 12m (person) Detection range (Ø): 40m |
| Lux reading range | < 1000 lux |
| Detection angle | 360º |
| Operating voltage | 9.5~22.5VDC |
| Consumption DALI BUS current | Max. 10 mA(no LED) Max. 12 mA(with LED) |
| Identify device | Red LED flashes 15S |
| Warming-up | 5s |
| EMC standard (EMC) | EN55015, EN61000, EN61547 |
| DALI | IEC60386-101, 103, 303, 304 |
| RED | EN300328, EN301489-1/-17 |
| Certification | CE, REACH, UKCA, RCM, ROHS compliance |
| Operation temperature | Ta: -20ºC ~ +50ºC |
| IP rating | IP20 |
Installation
Mechanical Structure & Dimensions

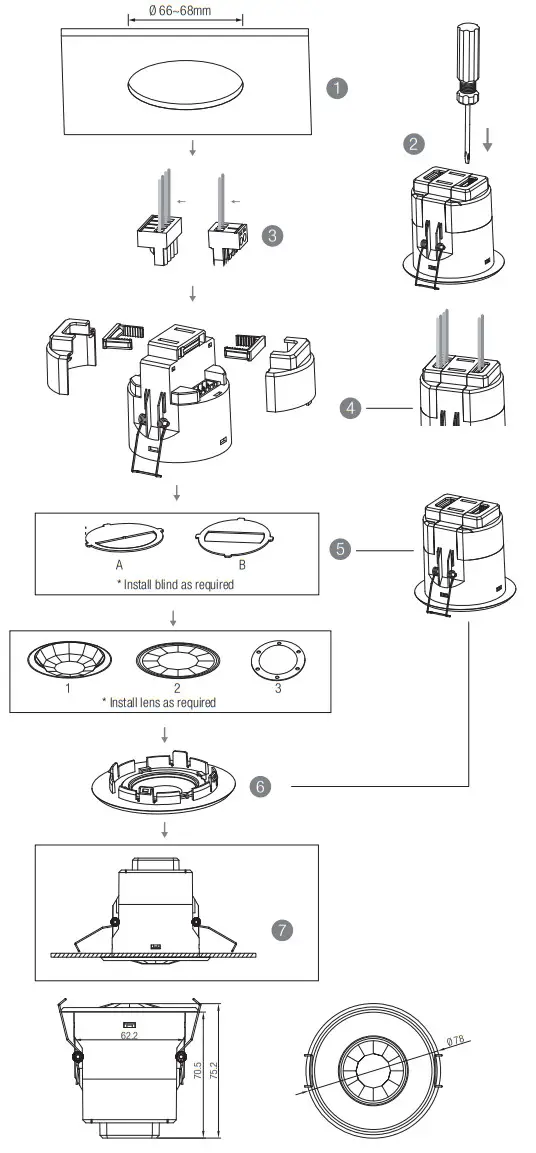

- Ceiling (drill hole φ66~68mm)
- Carefully prise off the cable clamps.
- Make connections to the pluggable terminal blocks.
- Insert plug connectors and secure using the provided cable clamps, then clip terminal covers to the base.
- Fit detection blind (if required) and desired lens.
- Clip fascia to the body.
- Bend back springs and insert them into the ceiling.
Wire Preparation

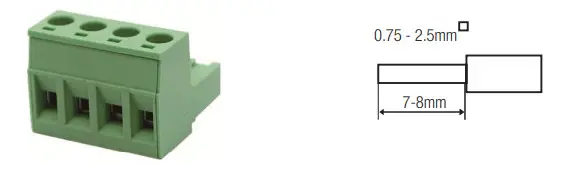

Pluggable screw terminal. It is recommended to make connections to the terminal before fitting to the sensor.
Wiring Diagram

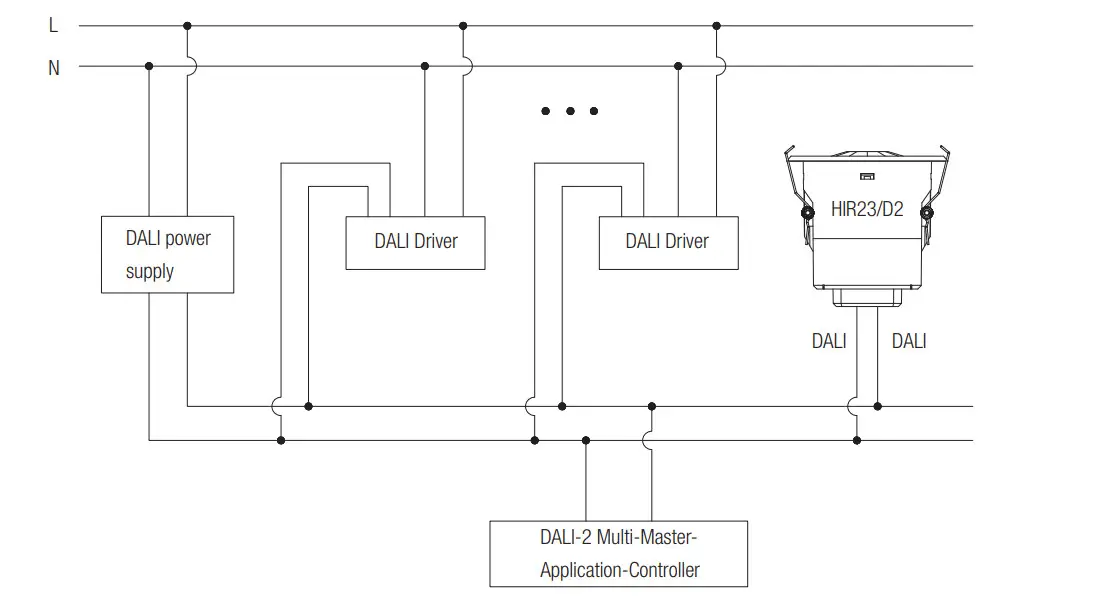

Note: HIR23/D2 has been used as a DALI-2 input device to only report the DALI instance (light sensor instance and motion sensor instance) to the DALI-2 application controller, who is the “main brain” to process the data communication between input devices and the control gear and assign different functions.

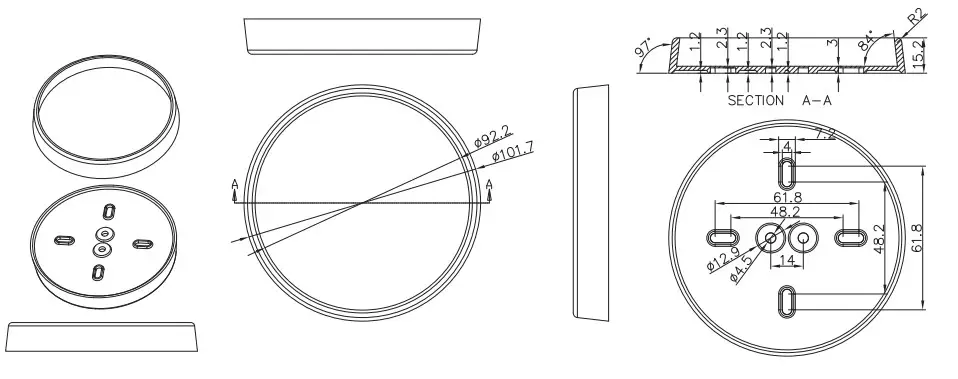

Big and small silicon gasket used to make IP65 degree protection when HIR23/D2 series device mounted into HA03 housing for ceiling mount

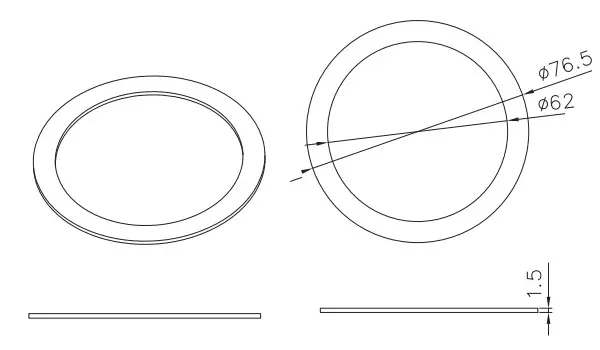

small silicon water-proof gasket dimension(size: mm)
big silicon water-proof gasket dimension(size:mm)
Detection Pattern & Optional Accessories

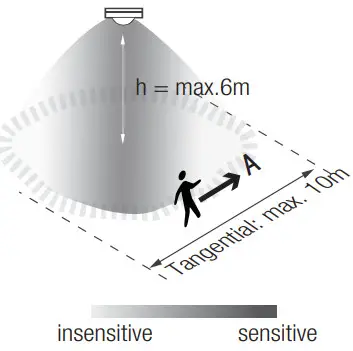

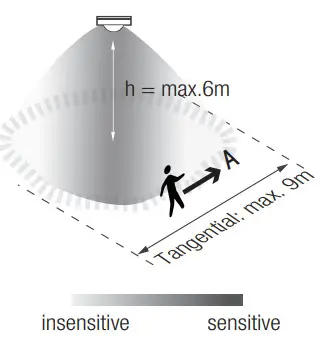

HIR23/D2 (Low-bay)
HIR23/D2: Low-bay flat lens detection pattern for single person @ Ta = 20ºC (Recommended ceiling mount installation height 2.5m-6m)

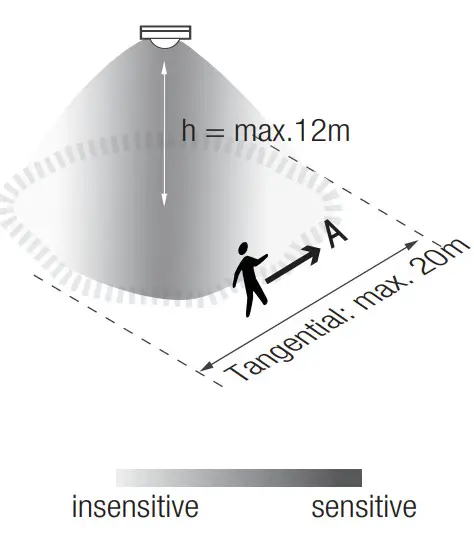

A: Tangential movement
B: Radial movement
Mount height | Tangential (A) | Radial (B) |
| 2.5m | max 79m2 (Ø = 10m) | max 20m2 (Ø = 5m) |
| 3m | max 79m2 (Ø = 10m) | max 20m2 (Ø = 5m) |
| 4m | max 64m2 (Ø = 9m) | max 20m2 (Ø = 5m) |
| 5m | max 50m2 (Ø = 8m) | max 20m2 (Ø = 5m) |
| 6m | max 50m (Ø = 8m) | max 20m (Ø = 5m) |

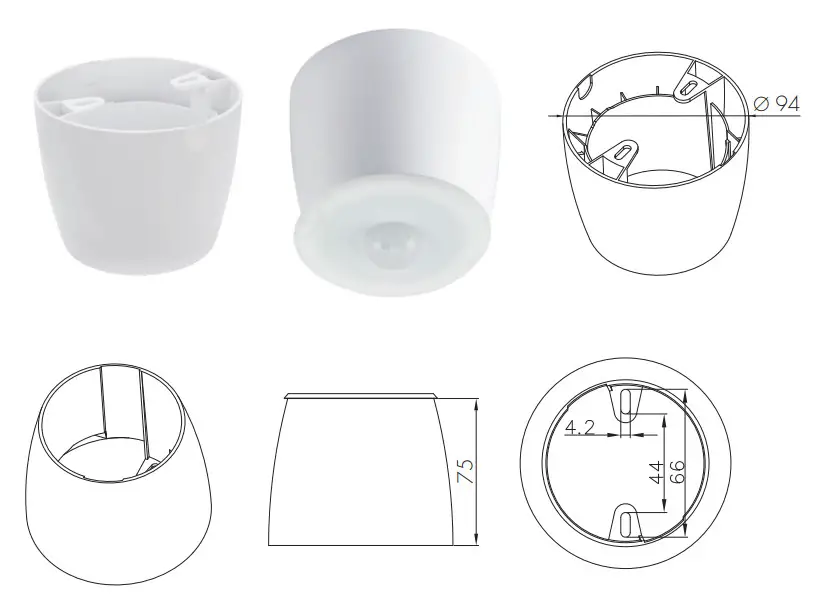

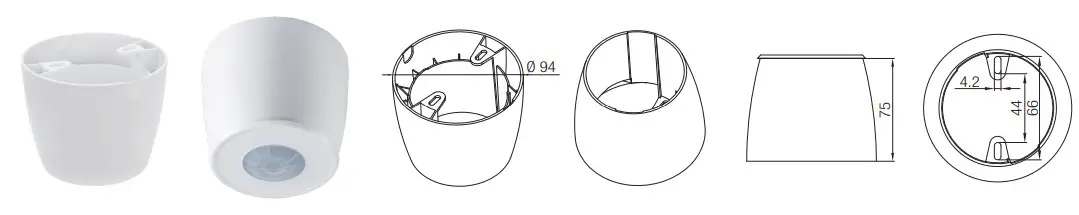

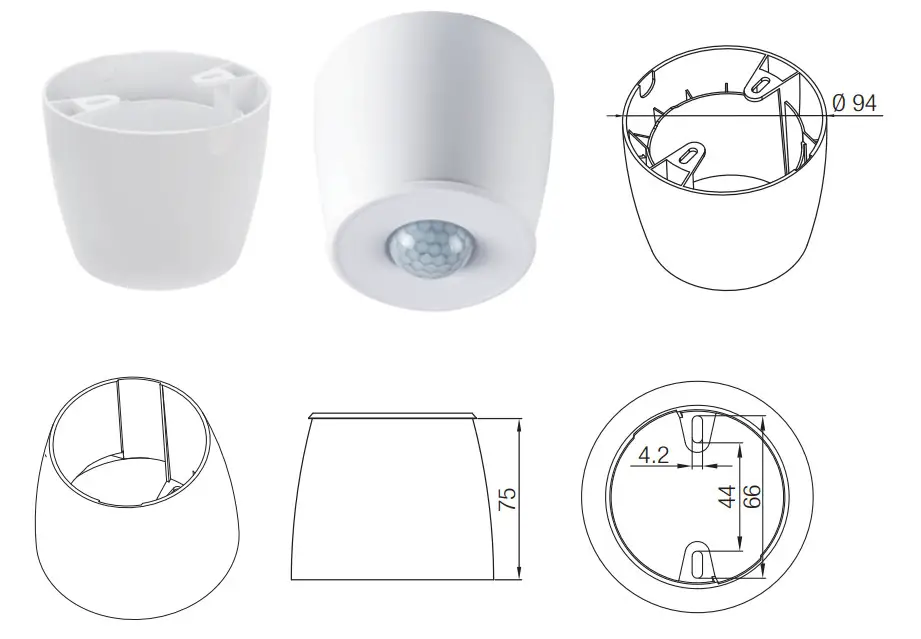

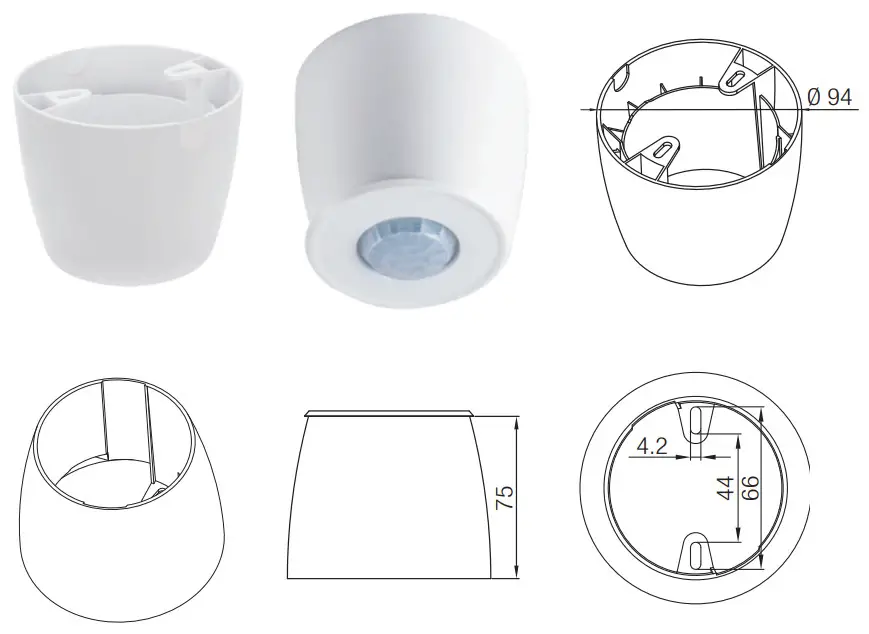

Optional Accessory-Ceiling/Surface Mount Box: HA03
Optional Accessory -Blind Insert for Blocking Certain Detection Angles

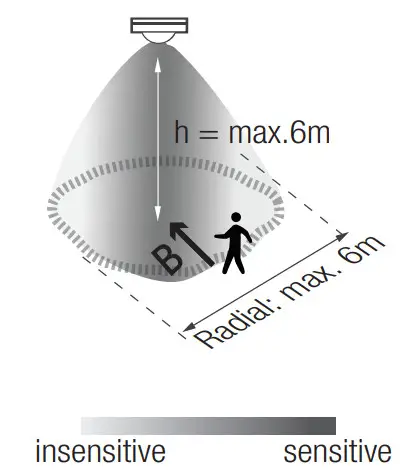

HIR23/D2/R (Reinforced Low-bay)
A: Tangential movement
B: Radial movement
Mount height | Tangential (A) | Radial (B) |
| 2.5m | max 79m2 (Ø = 10m) | max 20m2 (Ø = 5m) |
| 3m | max 79m2 (Ø = 10m) | max 20m2 (Ø = 5m) |
| 4m | max 64m2 (Ø = 9m) | max 20m2 (Ø = 5m) |
| 5m | max 50m2 (Ø = 8m) | max 20m2 (Ø = 5m) |
| 6m | max 50m (Ø = 8m) | max 20m (Ø = 5m) |
Optional Accessory -Ceiling/Surface Mount Box: HA03
Optional Accessory -Blind Insert for Blocking Certain Detection Angles

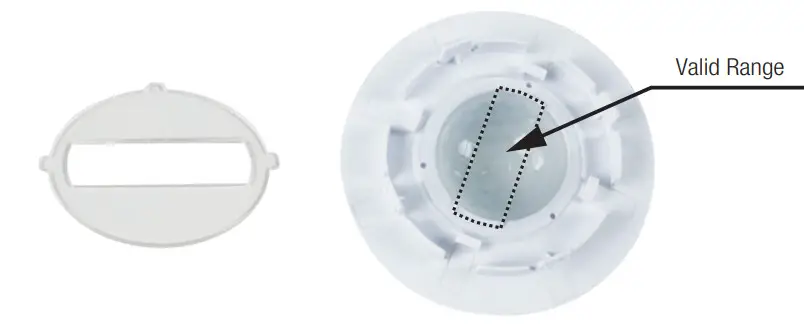

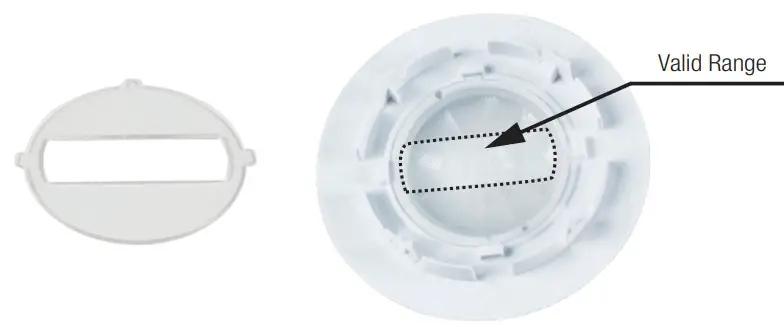

Blind Option 1 -Aisle Detection

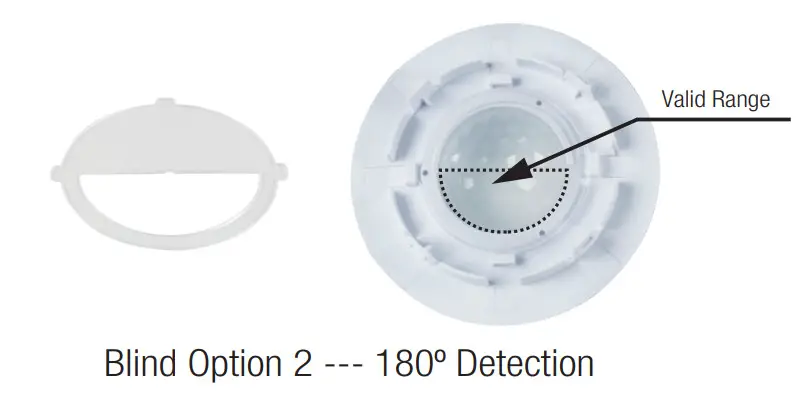

Blind Option 2 -180º Detection

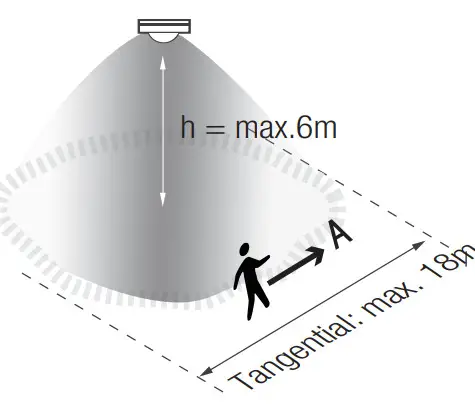

HIR23/D2/W (Wide range Low-bay)

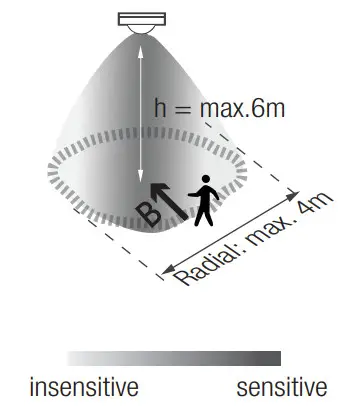

HIR23/D2/W: Low-bay convex lens detection pattern for single person @ Ta = 20ºC (Recommended ceiling mount installation height 2.5m-6m)
A: Tangential movement
B: Radial movement
Mount height | Tangential (A) | Radial (B) |
| 2.5m | max 254m² (Ø = 18m) | max 28m2 (Ø = 6m) |
| 3m | max 254m² (Ø = 18m) | max 28m2 (Ø = 6m) |
| 4m | max 154m² (Ø = 14m) | max 28m2 (Ø = 6m) |
| 5m | max 113m² (Ø = 12m) | max 28m2 (Ø = 6m) |
| 6m | max 79m² (Ø = 10m) | max 28m (Ø = 4m) |
Ceiling/Surface Mount Accessory HA03: Default IP20, IP65 can be requested with extra big & small water-proof gaskets

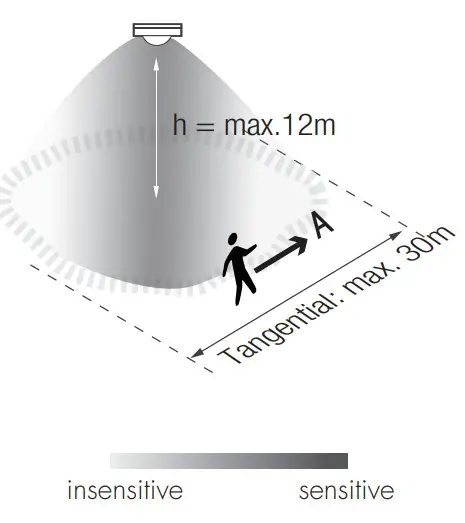

HIR23/D2/H (High-bay)

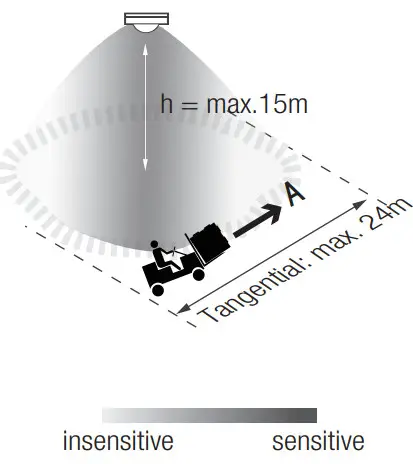

HIR23/D2/H: High-bay lens detection pattern for forklift @ Ta = 20ºC (Recommended ceiling mount installation height 10m-15m)

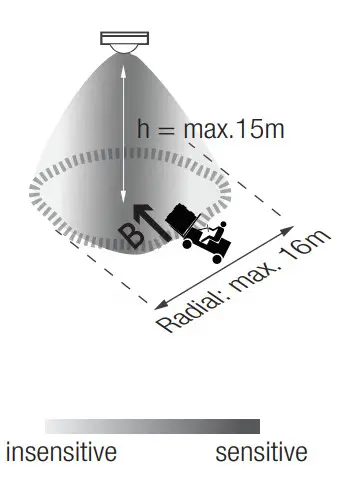

A: Tangential movement
B: Radial movement
Mount height | Tangential (A) | Radial (B) |
| 10m | max 380m2 (Ø = 22m) | max 201m2 (Ø = 16m) |
| 11m | max 452m (Ø = 24m) | max 201m (Ø = 16m) |
| 12m | max 452m2 (Ø = 24m) | max 201m2 (Ø = 16m) |
| 13m | max 452m2 (Ø = 24m) | max 177m2 (Ø = 15m) |
| 14m | max 452m2 (Ø = 24m) | max 133m2 (Ø = 13m) |
| 15m | max 452m (Ø = 24m) | max 113m (Ø = 12m) |

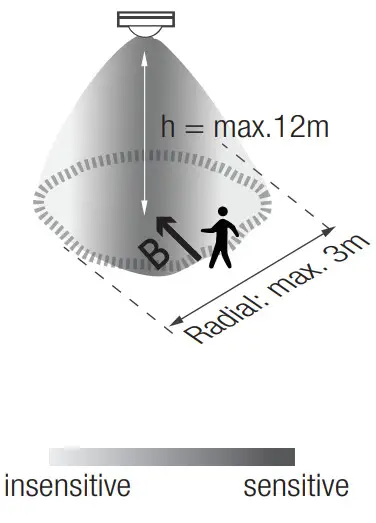

HIR23/D2/H: High-bay lens detection pattern for single person @ Ta = 20ºC (Recommended ceiling mount installation height 2.5m-12m)
A: Tangential movement
B: Radial movement
Mount height | Tangential (A) | Radial (B) |
| 2.5m | max 50m2 (Ø = 8m) | max 7m2 (Ø = 3m) |
| 6m | max 104m2 (Ø = 11.5m) | max 7m2 (Ø = 3m) |
| 8m | max 154m2 (Ø = 14m) | max 7m2 (Ø = 3m) |
| 10m | max 227m2 (Ø = 17m) | max 7m2 (Ø = 3m) |
| 11m | max 269m2 (Ø = 18.5m) | max 7m² (Ø = 3m) |
| 12m | max 314m2 (Ø = 20m) | max 7m² (Ø = 3m) |
Optional Accessory — Ceiling/Surface Mount Box: HA03
Optional Accessory — Blind Insert for Blocking Certain Detection Angles
Blind Option 1 — Aisle Detection
HIR23/D2/RH (Reinforced High-bay with 3-Pyro)

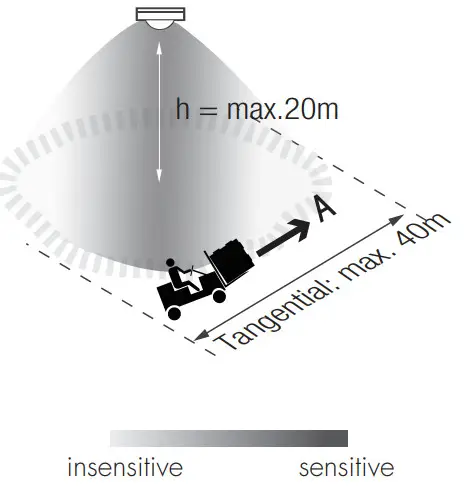

HIR23/D2/RH: Reinforced high-bay lens detection pattern for forklift @ Ta = 20ºC (Recommended ceiling mount installation height 10m-15m)
A: Tangential movement
B: Radial movement
| Mount height | Tangential (A) | Radial (B) |
| 10m | max 346m2 (Ø = 21m) | max 177m2 (Ø = 15m) |
| 11m | max 660m2 (Ø = 29m) | max 177m2 (Ø = 15m) |
| 12m | max 907m2 (Ø = 34m) | max 154m2 (Ø = 14m) |
| 13m | max 962m2 (Ø = 35m) | max 154m2 (Ø = 14m) |
| 14m | max 1075m2 (Ø = 37m) | max 113m2 (Ø = 12m) |
| 15m | max 1256m2 (Ø = 40m) | max 113m2 (Ø = 12m) |
| 20m | max 707m2 (Ø = 30m) | max 113m2 (Ø = 12m) |

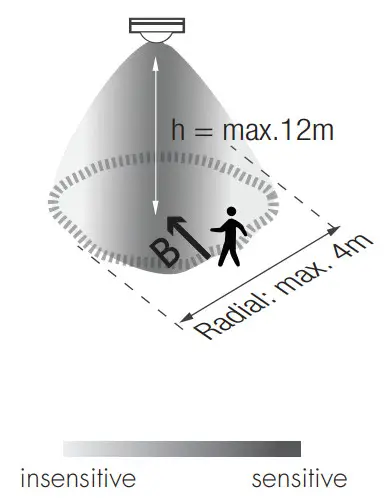

HIR23/D2/RH: Reinforced high-bay lens detection pattern for single person @ Ta = 20OC (Recommended ceiling mount installation height 2.5m-12m)
A: Tangential movement
B: Radial movement
Mount height | Tangential (A) | Radial (B) |
| 2.5m | max 38m2 (Ø = 7m) | max 7m2 (Ø = 3m) |
| 6m | max 154m2 (Ø = 14m) | max 7m2 (Ø = 3m) |
| 8m | max 314m2 (Ø = 20m) | max 7m2 (Ø = 3m) |
| 10m | max 531m2 (Ø = 26m) | max 13m2 (Ø = 4m) |
| 11m | max 615m2 (Ø = 28m) | max 13m2 (Ø = 4m) |
| 12m | max 707m2 (Ø = 30m) | max 13m2 (Ø = 4m) |
Optional Accessory — Ceiling/Surface Mount Box: HA03
Additional Information / Documents
- Regarding precautions for PIR Sensors installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors – Precautions for Product Installation and Operation
- The datasheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/Motion Sensors ->Stand-alone Sensors
- Regarding Hytronik’s standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
