HYTRONIK HC049V-BT PIR Motion Sensor
Product Information
| Product Name | IP65 PIR Motion Sensor with HC049V/BTcHigh-bay 1-10V Bolt-on/Batten-fit PIR Sensor |
|---|---|
| Description | HC049V/BT is a Bluetooth 1-10V high-bay PIR motion sensor with a daylight sensor built-in. It is designed for mounting onto a batten style luminaire and is suitable for indoor applications such as offices, classrooms, car parks, warehouses, and other commercial/industrial areas. It offers wireless control through Bluetooth wireless mesh networking, eliminating the need for hardwiring and adding value to luminaires while saving costs for projects. |
| Features | Interoperability with Hytronik Bluetooth product portfolio, Internet-of-Things (IoT) featured, Device firmware update over-the-air (OTA), IP65 rating, High-bay installation up to 15m height, 5-year warranty, designed for long lifetime up to 50,000 hours, Bluetooth 5.0 SIG Mesh support, Smartphone app for iOS and Android platforms, Web app/platform: www.iot.koolmesh.com |
| Technical Specifications |
|
Product Usage Instructions
- Install the HC049V/BT PIR motion sensor onto a batten style luminaire at a suitable location.
- Ensure the installation height does not exceed 15m.
- Refer to the precautions for Bluetooth product installation and operation at www.hytronik.com/download for detailed instructions.
- Refer to the precautions for PIR sensor installation and operation at www.hytronik.com/download for detailed instructions.
- To set up and commission the device, use the smartphone app available for both iOS and Android platforms.
- For iPad users, there is a specific app called Koolmesh Pro app available.
- Access the web app/platform at www.iot.koolmesh.com for additional control and monitoring functionalities.
Note: Please refer to the most recent release on www.hytronik.com/products/bluetooth for the latest data sheet and Hytronik standard guarantee policy.
IP65 PIR Motion Sensor with 5.0 SIG Mesh
HC049V/BT（High-bay）
1-10V Bolt-on/Batten-fit PIR Sensor
Product Description
HC049V/BT is a Bluetooth 1-10V high-bay PIR motion sensor, with capability of up to 15m installation height. HC049V/BT has a daylight sensor built-in, and is specifically designed for mounting onto a batten style luminaire. It is also designed for professional lighting manufactures who would like to incorporate wireless control into their luminaires. HC049V/BT is suitable for any typical indoor applications such as office, classroom, car park, warehouse and other commercial/industrial areas. With Bluetooth wireless mesh networking, it makes communication much easier without any hardwiring, which eventually adds values to luminaires and saves costs for projects. Meanwhile, simple device setup and commissioning can be done via app.
App Features
Quick setup mode & advanced setup mode
Web app/platform for project deployment & data analysis
Koolmesh Pro app on iPad for on-site configuration
Floorplan feature to simplify project planning
One-key device replacement
Device social relations check
Staircase function for quick master & slave setup
Remote control via gateway support HBGW01
Heat map
Dynamic daylight harvest auto-adaptation
Grouping luminaires via mesh network
Scenes
Dusk/Dawn photocell (Twilight function)
Tri-level control
Daylight harvest
Detailed motion sensor settings
Schedule
Astro timer (sunrise and sunset)
Power-on status (memory against power loss)
Offine commissioning- Bulk commissioning (copy and paste settings)
Different permission levels via authority management
Network sharing via QR code or keycode
Interoperability with Hytronik Bluetooth product portfolio
Internet-of-Things (IoT) featured
Device firmware update over-the-air (OTA)
Continuous development in progress…
Quick setup mode & advanced setup mode
Web app/platform for project deployment & data analysis
Koolmesh Pro app on iPad for on-site configuration
Floorplan feature to simplify project planning
One-key device replacement
Device social relations check
Staircase function for quick master & slave setup
Remote control via gateway support HBGW01
Dynamic daylight harvest auto-adaptation
Grouping luminaires via mesh network
Scenes
Dusk/Dawn photocell (Twilight function)
Tri-level control
Daylight harvest
Detailed motion sensor settings
Schedule
Astro timer (sunrise and sunset)
Power-on status (memory against power loss)
Offine commissioning
Bulk commissioning (copy and paste settings)
Different permission levels via authority management
Network sharing via QR code or keycode
Interoperability with Hytronik Bluetooth product portfolio
Internet-of-Things (IoT) featured
Device firmware update over-the-air (OTA)
Continuous development in progress…Hardware Features
IP65
Fixing washers accessory
High-bay (up to 15m height)
5-year warranty, designed for long lifetime up to 50,000 hours
IP65
High-bay (up to 15m height)
5-year warranty, designed for long lifetime up to 50,000 hours
Web app/platform: www.iot.koolmesh.com
Technical Specifications
| Input & Output Characteristics | |
| Operating voltage | 220 ~ 240VAC 50/60Hz |
| Stand-by power | <1W |
| Load ratings | 400VA (capacitive) 800W (resistive) |
| Warming-up | 30s |
| Environment | |
| Operation temperature | Ta: -20OC ~ +50OC |
| IP rating | IP65 |
| Sensor Data | |
| Sensor principle | PIR detection |
| Detection range* | Max installation height：15m (forklift) 12m (single person) Max detection range： 16m (diameter) |
| Detection angle | 360O |
The detection range is heavily influenced by sensor placement (angle) and different walking paces. It may be reduced under certain conditions.
| Safety & EMC | |
| EMC standard (EMC) | EN55015, EN61547 EN61000-3-2/-3-3 |
| Safety standard (LVD) | EN61347-1, EN61347-2-11 |
| RED | EN300328, EN301489-1 EN301489-17 |
| Certifcation | ENEC, CE , EMC, LVD, RCM |

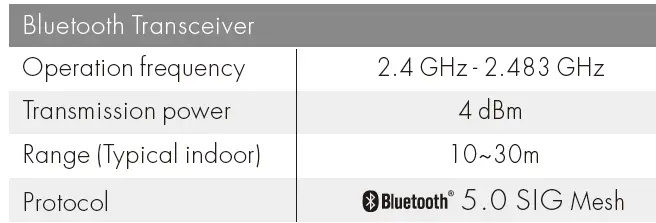

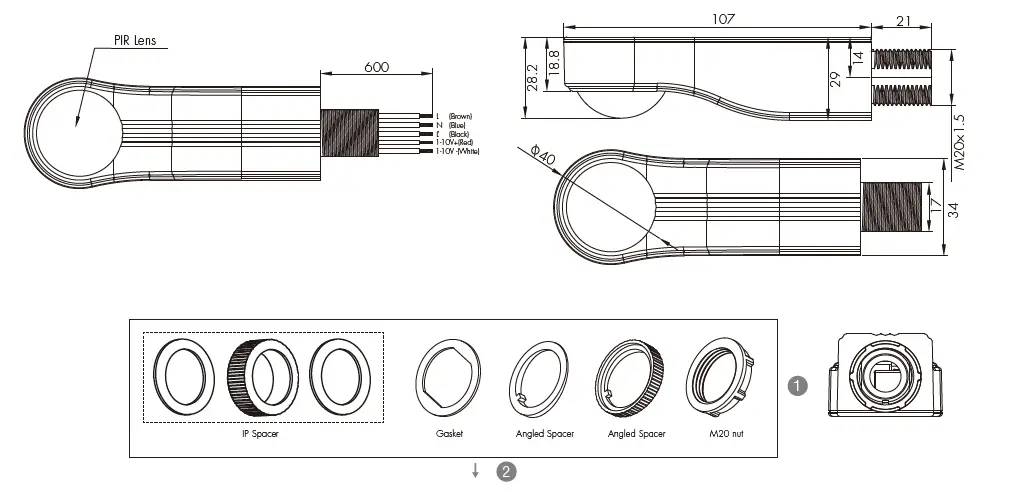

Mechanical Structure & Dimensions

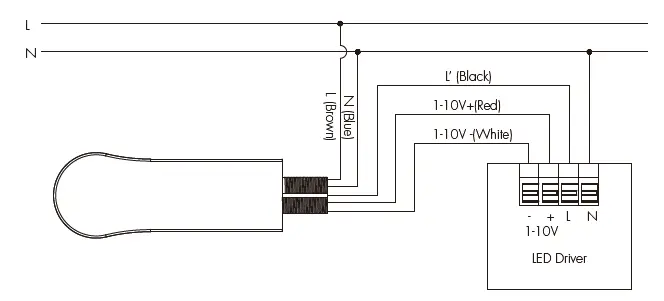

Wiring Diagram
Placement Guide and Typical Range

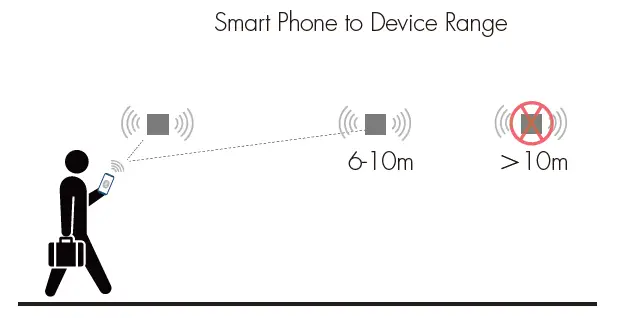

The smart device with the App installed will have a typical range of 10m, but varies from device to device. During commissioning, the installer will need to be in range of the devices when searching for devices to add to the network.
Once the devices have been added to the network via the App, the devices will start communicating within the wireless mesh. This means that once the network is complete, all devices are accessible from the smart device when in a 20m range of a single point.

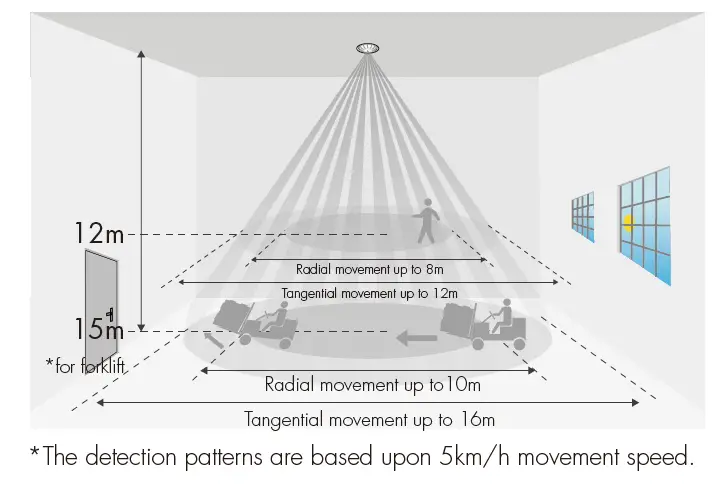

Detection Pattern
Additional Information / Documents
- To learn more about detailed product features/functions, please refer to
www.hytronik.com/download->knowledge->Introduction of App Scenes and Product Functions - Regarding precautions for Bluetooth product installation and operation, please kindly refer to
www.hytronik.com/download->knowledge->BluetoothProducts-Precautions for Product Installation and Operation - Regarding precautions for PIR sensor installation and operation, please kindly refer to
www.hytronik.com/download->knowledge->PIRSensors-Precautions for Product Installation and Operation - Data sheet is subject to change without notice. Please always refer to the most recent release on
www.hytronik.com/products/bluetoothtechnology->BluetoothSensors - Regarding Hytronik standard guarantee policy, please refer to
www.hytronik.com/download->knowledge->HytronikStandardGuaranteePolicy
Subject to change without notice.
