HBIR29 PIR Standalone Motion Sensor with Mesh
Owner’s Manual

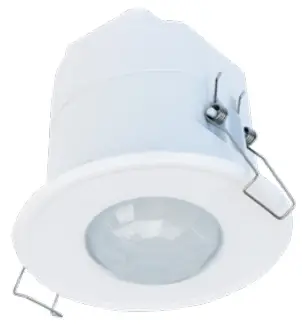

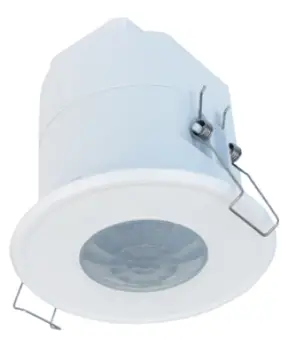

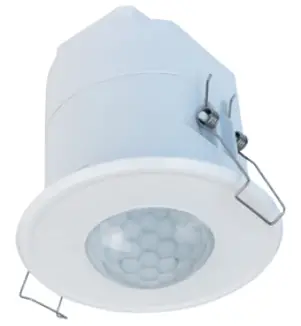

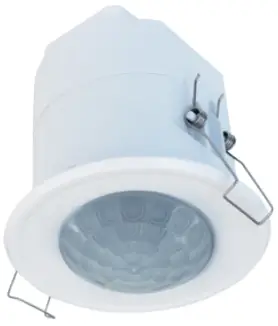

HBIR29 PIR Standalone Motion Sensor with Mesh
PIR Standalone Motion Sensor with
Mesh
| HBIR29/SV | Low-bay |
| HBIR29/SV/R | Reinforced Low-bay |
| HBIR29/SV/H | High-bay |
| HBIR29/SV/RH | Reinforced High-bay |

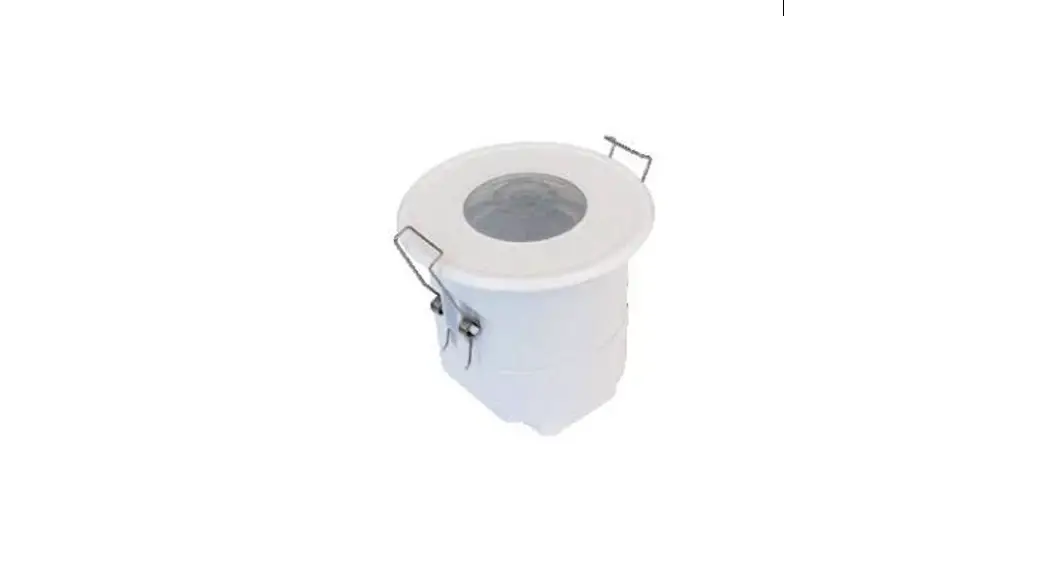

Product Description
HBIR29/SV is a Bluetooth PIR standalone motion sensor with 80mA DALI power supply built in, which can control up to 40 LED drivers. It is ideal for typical indoor applications such as ofce, classroom, healthcare and other commercial areas.
Meanwhile, all commissioning and settings can be done via SILVAIR app.
Functions and Features
- Bluetooth® mesh compliant
- 80mA DALI broadcast output for up to 40 LED drivers
- Surface mount kit available as accessory
- PIR occupancy detection with 2 types of blind inserts / blanking plates
- Daylight harvesting
(Note: The component may not be suitable for daylight harvesting usage due to not being precise in lux measurements. Please only use daylight harvesting feature if user conducted eld tests and accepts the the tolerance level.) - Scene control, Task tuning (0-100%)
- Compact form factor
- Works with DALI LED drivers
- Autonomous sensor-based control
- OTA firmware upgrade
- Continuous dimming
- Individual/group addressing
- Decentralized control (no single point of failure)
- User-friendly design for installation
- High bay version available (up to 15m in height)
- 5-years warranty
Technical Specifications
| Bluetooth Transceiver | |
| Operation frequency | 2.4 GHz – 2.483 GHz |
| Transmission power | 4 dBm |
| Range (Typical indoor) | 10~30m |
| Protocol | Mesh |
 | HBIR29/SV |
 | HBIR29/SV/R |
 | HBIR29/SV/H |
 | HBIR29/SV/RH (3-pyro) |

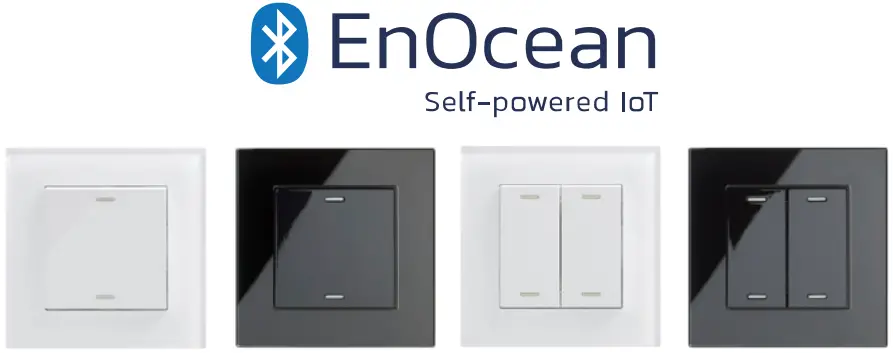

Fully support EnOcean self-powered switch module PTM215B (HBES01/W & HBES01/B)
The access to Silvair apps mobile app: Silvair on the App Store web app: platform.silvair.com
| Input & Output Characteristics | |
| Operating voltage | 220~240VAC 50/60Hz |
| Max input current | 10mA |
| Stand-by power | <0.65W (Empty load) |
| Switched power | Max. 40 devices, 80mA |
| Warming-up | 5s |
| Tc max | 60° C |
| Lux range | 1-1,000lux Tolerance +/− 20% |
| Sensor Data | |
| Sensor Model | PIR detection |
| HBIR29/SV | Installation Height : 6m Detection Range(Ø) :9m |
| HBIR29/SV/R | Installation Height : 6m Detection Range(Ø) :10m |
| HBIR29/SV/H | Installation height：15m (forklift) 12m (person) Detection range (Ø)：24m |
| HBIR29/SV/RH | Installation height：20m (forklift) 12m (person) Detection range (Ø)：40m |
| Detection angle | 360° |
| Standard compliance | EN300328, EN301489-1, EN301489-17, EN62479, EN55015, EN61547, EN60669-1, EN60669-2-1, EN62493 |
* For more details of detection range, please refer to “detection pattern” section.

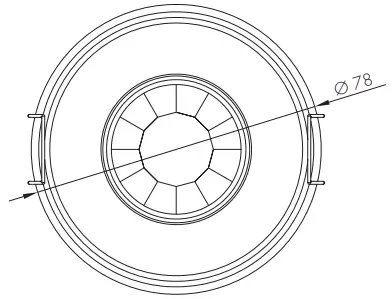

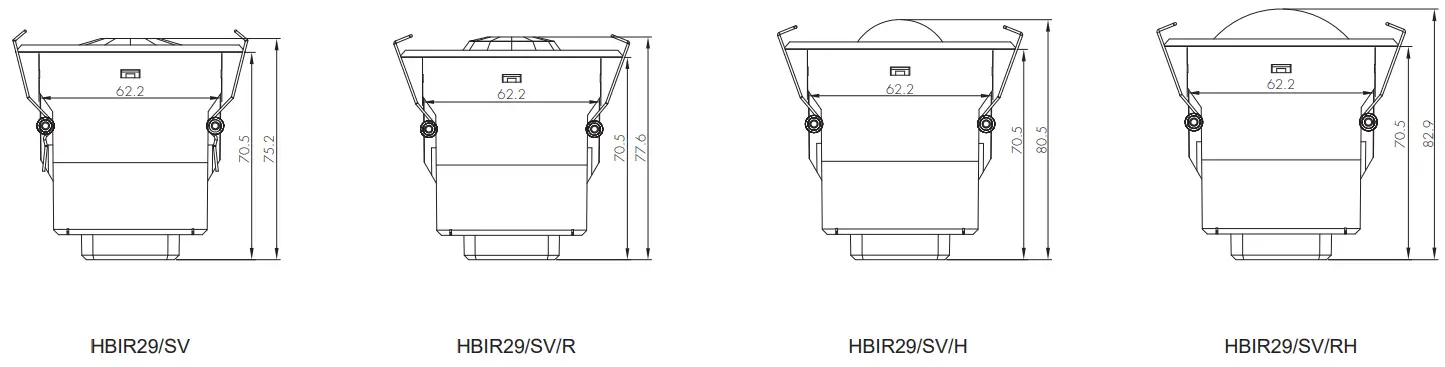

Mechanical Structure & Dimensions
| Environment | |
| Operation temperature | Ta: −20°C ~ +50°C |
| Operation humidity (RH%) | 10%~90% (Non-condensing) |
| Storage temperature (°C) | −40 °C~+70 °C |
| Storage humidity (RH%) | 10%~90% (Non-condensing) |
| IP rating | IP20 |

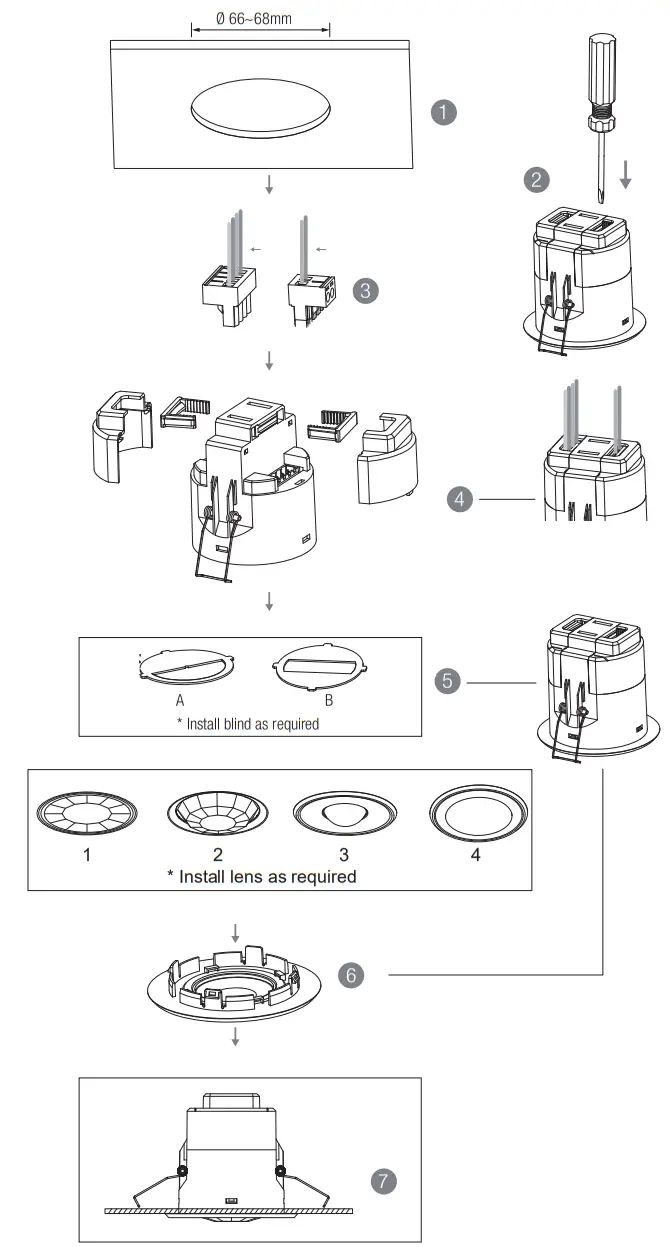

- Ceiling (drill hole Ø 66~68mm)
- Carefully prise off the cable clamps.
- Make connections to the pluggable terminal blocks.
- Insert plug connectors and secure using the provided cable clamps, then clip terminal covers to the base.
- Fit detection blind (if required) and desired lens.
- Clip fascia to body.
- Bend back springs and insert into ceiling.

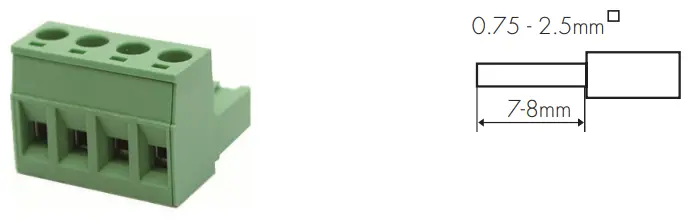

Wire Preparation
Pluggable screw terminal. It is recommended to make connections to the terminal before tting to the sensor.
Detection Pattern & Optional Accessories

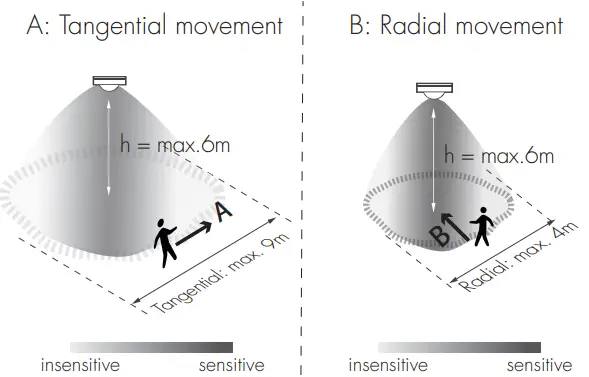

| 1. HBIR29/SV (Low-bay) |
 HBIR29/SV: Low-bay at lens detection pattern for single person @ Ta = 20°C (Recommended ceiling mount installation height 2.5m-6m) |
| Mount height | Tangential (A) | Radial (B) |
| 2.5m | max 50m2 (Ø = 8m) | max 13m2 (Ø = 4m) |
| 3m | max 64m2 (Ø = 9m) | max 13m2 (Ø = 4m) |
| 4m | max 38m2 (Ø = 7m) | max 13m2 (Ø = 4m) |
| 5m | max 38m2 (Ø = 7m) | max 13m2 (Ø = 4m) |
| 6m | max 38m2 (Ø = 7m) | max 13m2 (Ø = 4m) |

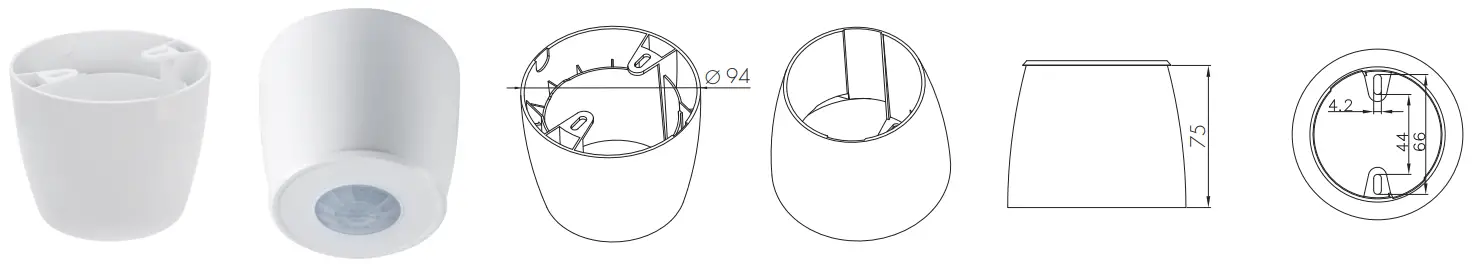

Optional Accessory — Ceiling/Surface Mount Box: HA03
Optional Accessory — Blind Insert for Blocking Certain Detection Angles
 | Blind Option 1 — Aisle Detection |

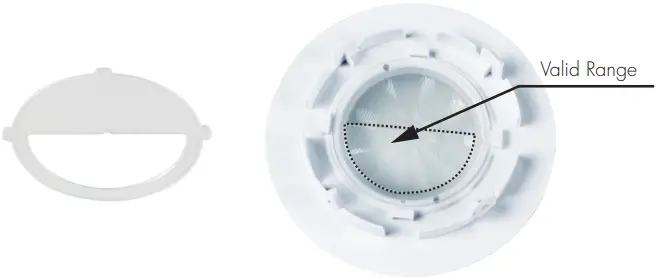

 | Blind Option 2 — 180° Detection |
| 2. HBIR29/SV/R (Reinforced Low-bay) |

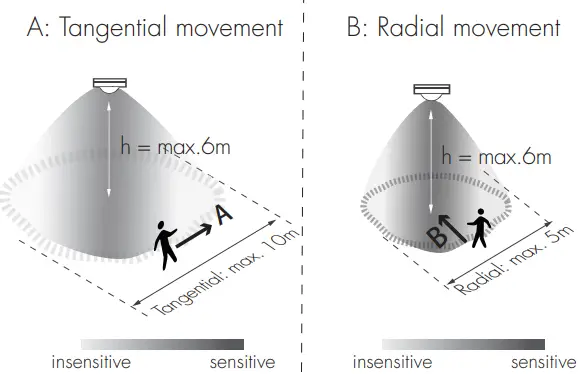

| HBIR29/SV/R: Low-bay convex lens detection pattern for single person @ Ta = 20°C (Recommended ceiling mount installation height 2.5m-6m) |
| Mount height | Tangential (A) | Radial (B) |
| 2.5m | max 79m2 (Ø = 10m) | max 20m2 (Ø = 5m) |
| 3m | max 79m2 (Ø = 10m) | max 20m2 (Ø = 5m) |
| 4m | max 64m2 (Ø = 9m) | max 20m2 (Ø = 5m) |
| 5m | max 50m2 (Ø = 8m) | max 20m2 (Ø = 5m) |
| 6m | max 50m2 (Ø = 8m) | max 20m2 (Ø = 5m) |
Optional Accessory — Ceiling/Surface Mount Box: HA03Optional Accessory — Blind Insert for Blocking Certain Detection Angles
| Blind Option 1 — Aisle Detection |
| Blind Option 2 — 180° Detection |
| 3. HBIR29/SV/H (High-bay) |

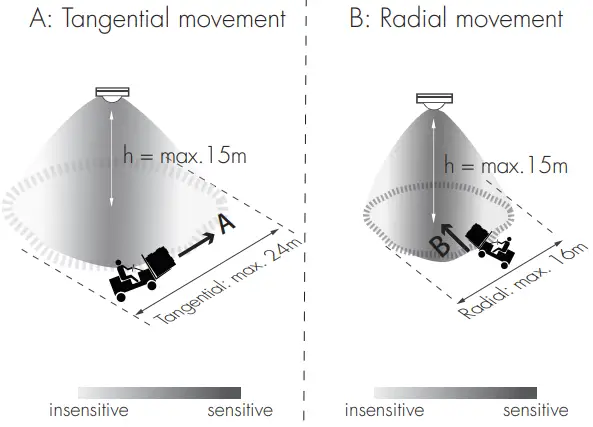

| HBIR29/SV/H: High-bay lens detection pattern for forklift @ Ta = 20°C (Recommended ceiling mount installation height 10m-15m) |
| Mount height | Tangential (A) | Radial (B) |
| 10m | max 380m2 (Ø = 22m) | max 201m2 (Ø = 16m) |
| 11m | max 452m2 (Ø = 24m) | max 201m2 (Ø = 16m) |
| 12m | max 452m2 (Ø = 24m) | max 201m2 (Ø = 16m) |
| 13m | max 452m2 (Ø = 24m) | max 177m2 (Ø = 15m) |
| 14m | max 452m2 (Ø = 24m) | max 133m2 (Ø = 13m) |
| 15m | max 452m2 (Ø = 24m) | max 113m2 (Ø = 12m) |

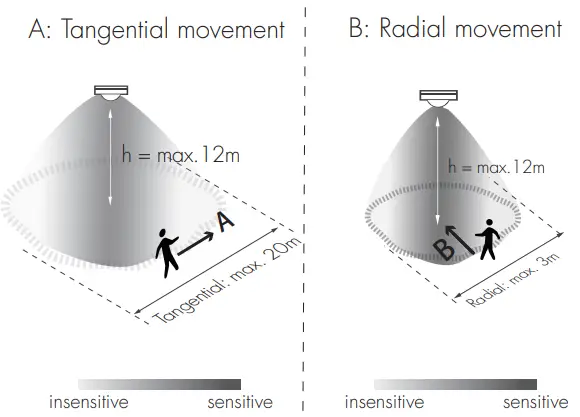

| HBIR29/SV/H: High-bay lens detection pattern for single person @ Ta = 20°C (Recommended ceiling mount installation height 2.5m-12m) |
| Mount height | Tangential (A) | Radial (B) |
| 2.5m | max 50m2 (Ø = 8m) | max 7m2 (Ø = 3m) |
| 6m | max 104m2 (Ø = 11.5m) | max 7m2 (Ø = 3m) |
| 8m | max 154m2 (Ø = 14m) | max 7m2 (Ø = 3m) |
| 10m | max 227m2 (Ø = 17m) | max 7m2 (Ø = 3m) |
| 11m | max 269m2 (Ø = 18.5m) | max 7m2 (Ø = 3m) |
| 12m | max 314m2 (Ø = 20m) | max 7m2 (Ø = 3m) |
Optional Accessory — Ceiling/Surface Mount Box: HA03Optional Accessory — Blind Insert for Blocking Certain Detection Angles
| Blind Option 1 — Aisle Detection |
| Blind Option 2 — 180° Detection |
| 4. HBIR29/SV/RH (Reinforced High-bay with 3-Pyro) |

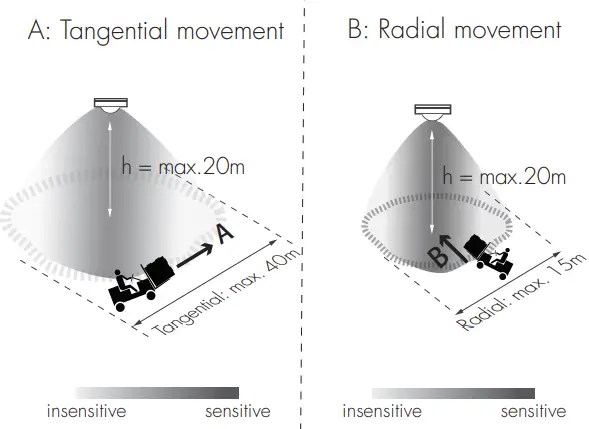

| HBIR29/SV/RH: Reinforced high-bay lens detection pattern for forklift @ Ta = 20°C (Recommended ceiling mount installation height 10m-20m) |
| Mount height | Tangential (A) | Radial (B) |
| 10m | max 346m2 (Ø = 21m) | max 177m2 (Ø = 15m) |
| 11m | max 660m2 (Ø = 29m) | max 177m2 (Ø = 15m) |
| 12m | max 907m2 (Ø = 34m) | max 154m2 (Ø = 14m) |
| 13m | max 962m2 (Ø = 35m) | max 154m2 (Ø = 14m) |
| 14m | max 1075m2 (Ø = 37m) | max 113m2 (Ø = 12m) |
| 15m | max 1256m2 (Ø = 40m) | max 113m2 (Ø = 12m) |
| 20m | max 707m2 (Ø = 30m) | max 113m2 (Ø = 12m) |

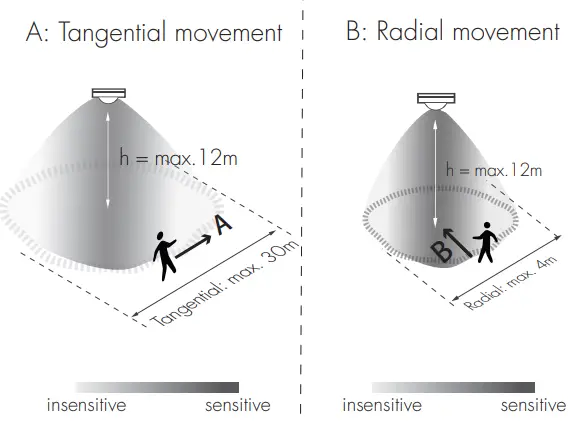

| HBIR29/SV/RH: Reinforced high-bay lens detection pattern for single person @ Ta = 20°C (Recommended ceiling mount installation height 2.5m-12m) |
| Mount height | Tangential (A) | Radial (B) |
| 2.5m | max 38m2 (Ø = 7m) | max 7m2 (Ø = 3m) |
| 6m | max 154m2 (Ø = 14m) | max 7m2 (Ø = 3m) |
| 8m | max 314m2 (Ø = 20m) | max 7m2 (Ø = 3m) |
| 10m | max 531m2 (Ø = 26m) | max 13m2 (Ø = 4m) |
| 11m | max 615m2 (Ø = 28m) | max 13m2 (Ø = 4m) |
| 12m | max 707m2 (Ø = 30m) | max 13m2 (Ø = 4m) |
Optional Accessory — Ceiling/Surface Mount Box: HA03
Wiring Diagram
Mesh Factory Reset
The device HBIR29/SV can be reset by placing a strong magnet (e.g. N38 neodymium magnet, d=10mm*h=4mm) near the sensor lens for 5 seconds. Once the factory reset is done successfully, the luminaire ashes and then permanent on, then the device is being able to be re-commissioned by SILVAIR app.
To Reprovision

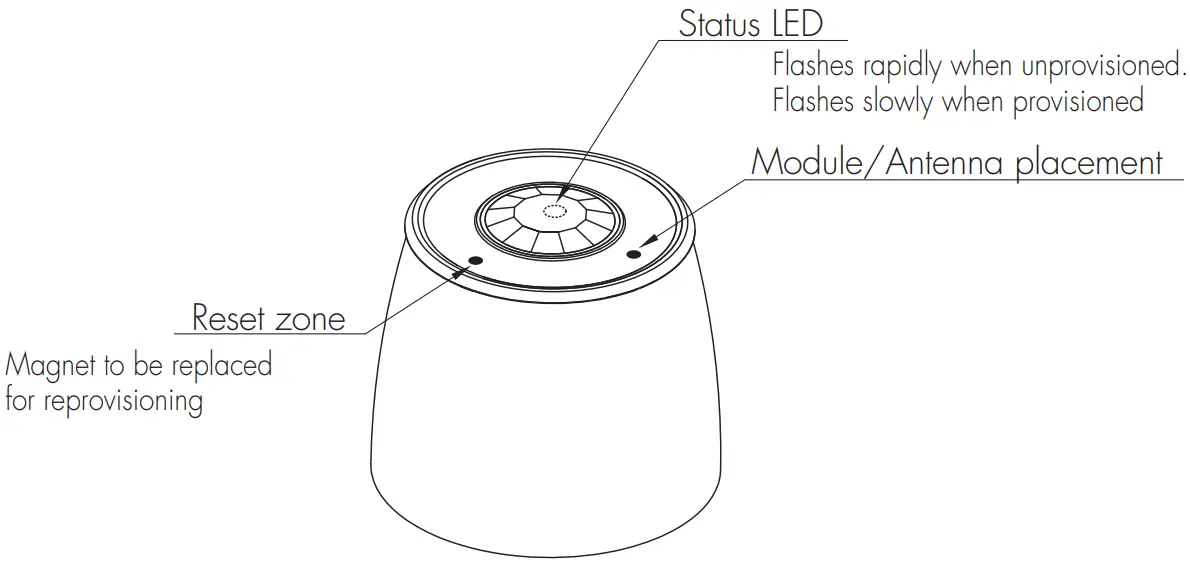

Place a strong magnet on the site of the Reset/Hall effect sensor (see diagram 4 below). To trigger the reset the magnet must be held in position for 5 seconds.
Note: When change the lens part of HBIR29/SV, please kindly make sure that the lens fits the right location, where the “Reset dot” and “BLE dot”matches with the physical location on the PCB.
| Status LED blinking Sequence | ||
| HBIR29/SV Unprovisioned | 30ms ON | 300ms OFF |
| HBIR29/SV Provisioned | 15ms ON | 2,000ms OFF |
| Factory reset | 500ms ON | 1,000ms OFF |
| Factory reset (initial burst) | 100ms ON | 1,000ms OFF |
| MESH package received | 30ms ON | 50ms OFF |
| Attention (from network) | 500ms ON | 500ms OFF |
Big and small silicon gasket used to make IP54 degree protection when HBIR29/SV series device mounted into HA03 housing for ceiling mount
Small silicon water-proof gasket dimension(size:mm)
Big silicon water-proof gasket dimension(size:mm)
Supported Bluetooth Mesh Models
| Bluetooth mesh models servers | |
| Mesh model generic default transition time server | Mesh model sensor server |
| Mesh model generic level server | Mesh model sensor setup server |
| Mesh model generic onoff server | |
| Mesh model generic power on off server | |
| Mesh model generic power on off setup server | |
| Mesh model light LC server | |
| Mesh model light LC setup server | |
| Mesh model light lightness server | |
| Mesh model light lightness setup server | |
Placement Guide and Typical Range

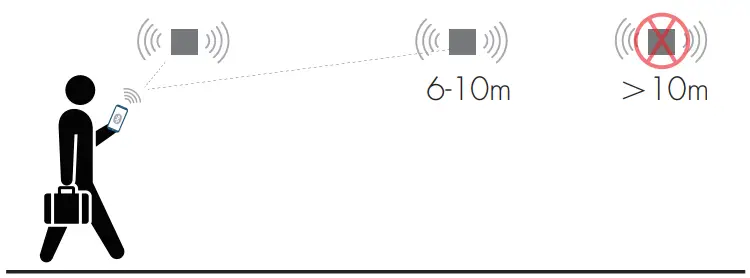

Smart Phone to Device Range
The smart device with the App installed will have a typical range of 10m, but varies from device to device. During commissioning, the installer will need to be in range of the devices when searching for devices to add to the network.
Once the devices have been added to the network via the App, the devices will start communicating within the wireless mesh. This means that once the network is complete, all devices are accessible from the smart device when in a 20m range of a single point.
Additional Information / Documents
- Regarding precautions for PIR Sensors installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors – Precautions for Product Installation and Operation
- Data sheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/bluetooth technology ->Partnership
- Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
Subject to change without notice.
Edition: 18 Jun.
2021 Ver.
A3 Page 8/8
