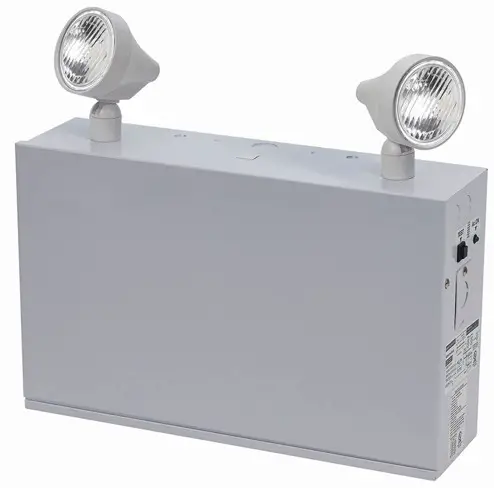

EMERGENCY BATTERY BACKUP UNIT
(275W, REMOTE CAPABLE) EL-7064S
Features
| Power on AC | 18W-21W |
| Lamp Type | 2x 2W LED |
| Input Voltage | 120/347 VAC |
| Frequency | 50/60 Hz |
| Battery Type | Sealed Lead Acid |
| Working Time | 30 Minutes at 275W |
| Charging Time | 45 Hours |
Description
- Durable steel housing
- Wall mountable with optional line cord included
- Input voltage: 120/347VAC 50/60Hz
- LED technology
- Two 12V12Ah sealed lead acid batteries
- 271W additional remote capability
- Test switch and charge indicator light
- Overcharge & over-discharge protection
- Backup time on battery: 30 minutes at 275 W
- Suitable for damp locations
- Operating temperature: 15 ºC ~ 35 ºC / 59 ºF ~ 95 ºF

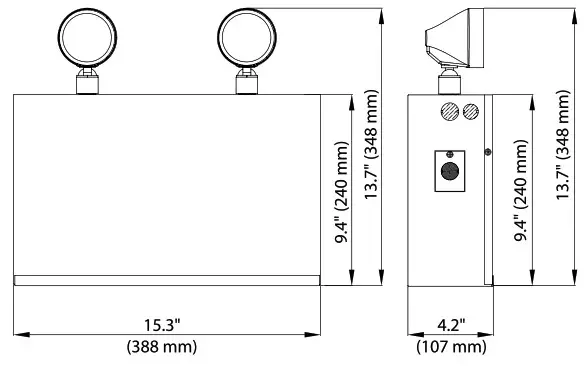

Technical Drawing

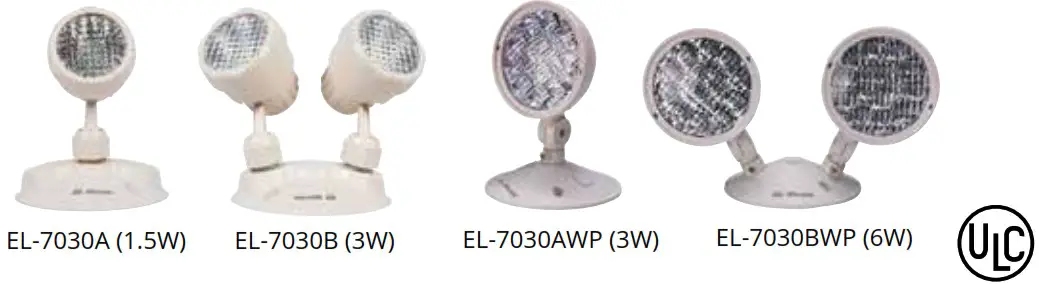

Remote Add-ons
Unit comes wth two attached 2W remote heads. You can add on up to 271W of additional remotes comprised of one or a combination of the following;
Ordering Information
| Model | Description |
| EL-7064S | Emergency Battery Backup Unit (275W Remote Capable) |
Canada
25 Interchange Way Vaughan, ON L4K 5W3
Telephone: (905) 660-4655 | Fax: (905) 660-4113
U.S.A.
4575 Witmer Industrial Estates Niagara Falls, NY 14305
Toll Free: (888) 660-4655 | Fax Toll Free: (888) 660-4113
www.mircom.com
THIS INFORMATION IS FOR MARKETING PURPOSES ONLY AND NOT INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY.
For complete and accurate technical information relating to performance, installation, testing and certification, refer to technical literature. This document contains intellectual property of Mircom. The information is subject to change by Mircom without notice. Mircom does not represent or warrant correctness or completeness. All rights reserved. All other trademarks and registered trademarks are properties of their respective owners.
CATALOG NUMBER
4158
Rev. 0
