POTTER AMS-17 Series 3 8 Inch Mini Recessed Contact
INTRODUCTIONS

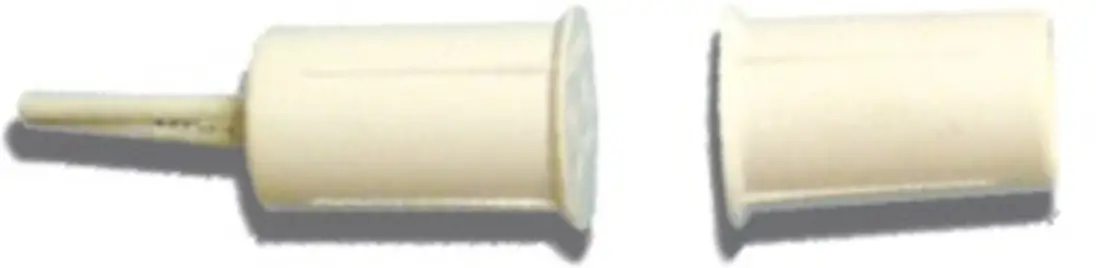

AMS-17 SERIES
3/8” MINI RECESSED CONTACT
- UL Listed
- 5/16” operating gap
- Alnico 5 magnet
- Optional AD-17 adapter available
- Available in white, brown, or ivory
Application
The AMS-17 Series Mini Recessed Contact is a UL listed contact designed to provide a clean and easy installation for standard openings. The AMS-17 Series is ideal for areas where small size is important. These contacts may be used to secure a variety of openings such as: man doors, sliding doors, windows, and other openings where a small concealed contact is necessary.

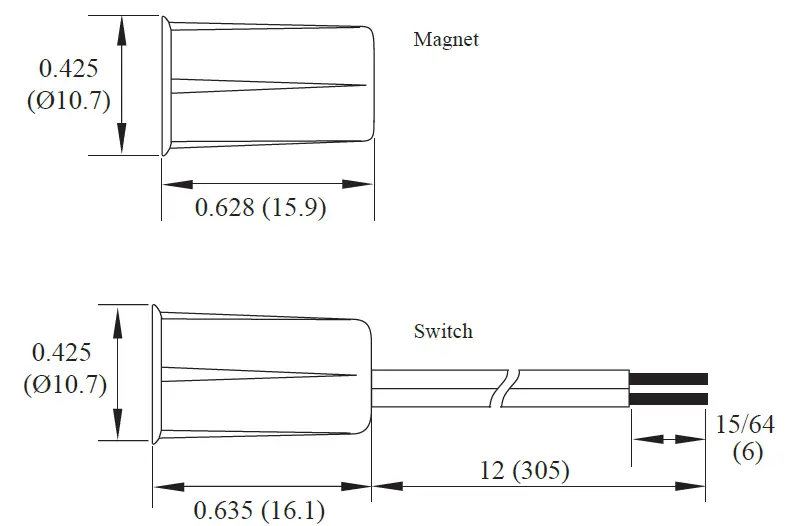

Dimensions
Specifications

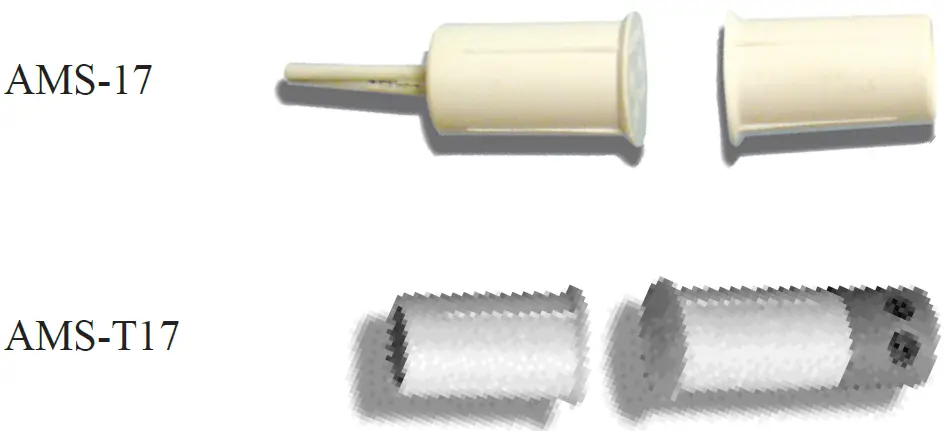

| Model | Color | Stock Number | Contact | Contact Rating | Contact Type | Max. Carry Current | Max. Switching Current | Breakdown Voltage | Operating Gap | Mounting Method | Operating Temperature Range |
| AMS-17 | White | 4350121 | 22AWG 12” Lead | 1.0VA | Form A N.O | .3 Amp | .1 Amp | 150VDC | 5/16” | Press fit | 32°F to 120°F (0°C to 49°C) |
| Brown | 4350118 | ||||||||||
| Ivory | 4350120 | ||||||||||
| AMS-T17 | White | 4350225 | Terminal | ||||||||
| Brown | 4350094 | ||||||||||
| Ivory | 4350224 | ||||||||||
| AD-17 | White | 4350128 | Allows 3/8” switch to be placed in a 3/4” hole. | ||||||||
| Brown | 4350127 | ||||||||||
Potter Electric Signal Co., LLC •
St. Louis, MO •
Cust Service: 866-240-1870 •
Tech Support: 866-956-1211 •
Canada 888-882-1833 • www.pottersignal.com
PRINTED IN USA
MKT. #8880119 – REV B 2/10
PAGE 1 OF 1
