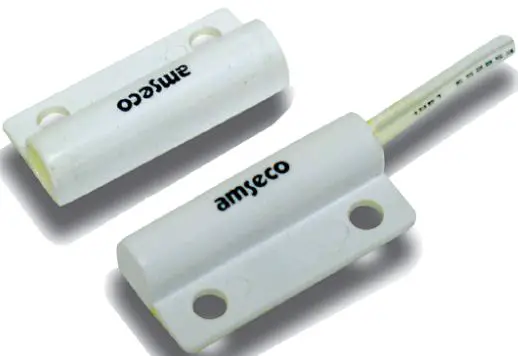

POTTER Ams-7 Series Mini Surface-Press Fit Magnetic Contact
- UL Listed
- ¾” operating gap
- Surface mount or press fit
- Alnico 5 magnet
- AMS-7 available in white or brown,
- AMS-7D available in white or black
Application
The AMS-7 Series Mini Surface/Press Fit Magnetic Contact is designed for installations where space is severely limited. The unique break-off tabs allows for field selection of surface mount or press-fit, recessed mount installations. The size and flexibility of the AMS-7 make it a must have on every technicians vehicle.

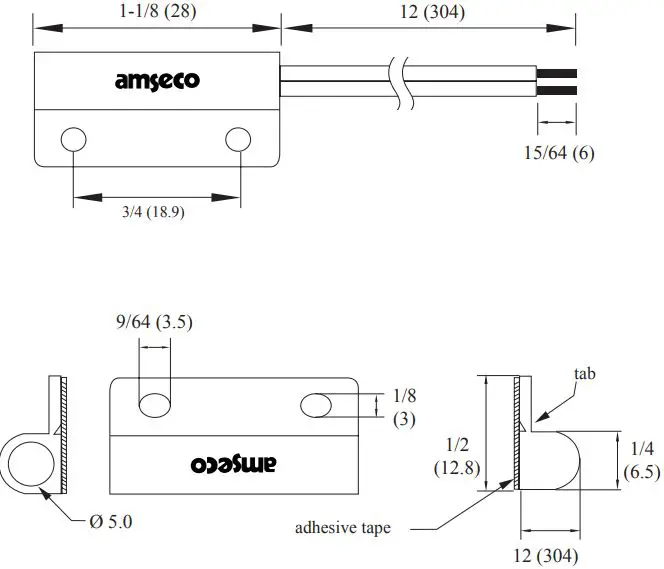

Dimensions
Specifications
| Model | Color | Stock Number | Contact | Contact Rating | Contact Type | Max. Carry Current | Max. Switching Current | Breakdown Voltage | Operating Gap | Mounting Method | Operating Temperature Range |
| AMS-7 | White | 4350220 | 22AWG 12” Lead |
10VA | Form A N.O |
1.0 Amp |
.5 Amp |
200VDC |
¾” | Surface mount or Press fit | 32°F to 120°F (0°C to 49°C) |
| Brown | 4350219 | ||||||||||
| AMS-7D | White | 4350231 | Form B N.C. | ||||||||
| Black | 4350221 |
Potter Electric Signal Co., LLC • St. Louis, MO • Cust Service: 866-240-1870 • Tech Support: 866-956-1211 • Canada 888-882-1833 • www.pottersignal.com
