AMS-9 Micro Mini Surface Mount Contact
Owner’s Manual
AMS-9
MICRO-MINI SURFACE MOUNT CONTACT

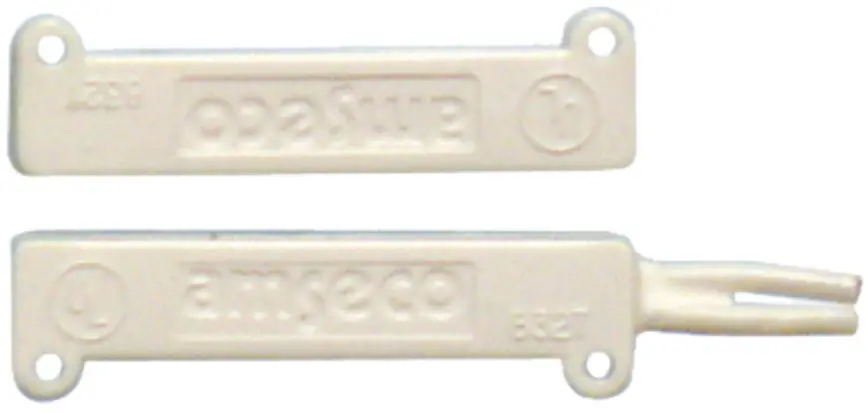

AMS-9 Micro Mini Surface Mount Contact
- UL and ULC listed
- ROHS compliant
- ½” operating gap
- Alnico 5 magnet
- Available in ivory, gray, and brown
Application
The AMS-9 Micro-Mini Surface Door Contact is a UL listed, ROHS compliant, magnetic contact designed to provide reliability in the tightest spaces. The AMS-9 is perfect for any application where space is limited.

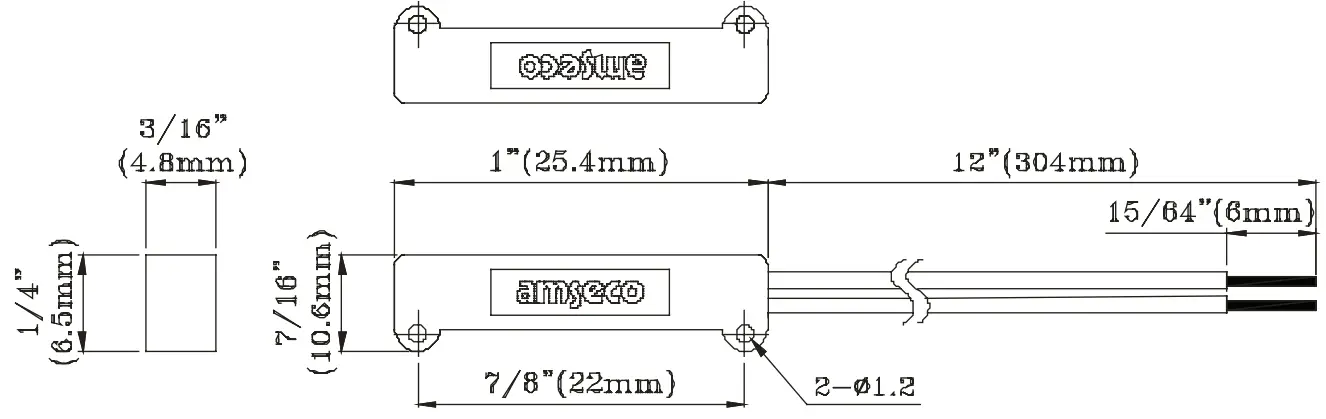

Dimensions
| Model | Color | Stock Number | Contact | Contact Rating | Contact Type | Max. Carry Current | Max. Switching Current | Breakdown Voltage | Operating Gap | Mounting Method | Operating Temperature Range |
| AMS-9 | Ivory | 4350222 | 22AWG 12″ Lead | IOVA | Form A N.0 | 1.5 Amp | .5 Amp | 350VDC | ‘A” | Self-adhesive | 32°F to 120°F (0°C to 49°C) |
| Brown | 4350090 | ||||||||||
| Gray | 4350091 |
Potter Electric Signal Co., LLC
St. Louis, MO
Cust Service: 866-240-1870
Tech Support: 866-956-1211
Canada 888-882-1833
www.pottersignal.com
PRINTED IN USA
MKT. #8880112 – REV B
