ENFORCER SM-205Q BR Miniature Surface Mount Contacts
Miniature Surface-Mount Contacts
Please visit the SECO-LARM website www.seco-larm.com for complete installation instructions. Please read the manual carefully before beginning installation.
SM-205Q/W
3/4″ (19mm) Gap, Closed Loop, Side Leads, White
SM-205Q/BR
3/4″ (19mm) Gap, Closed Loop, Side Leads, Brown
Features
- Miniature “flange-type” surface-mount magnetic contacts are perfect for sliding doors and windows where space is limited
- Screw or adhesive mount
- The mounting flange breaks off for an extra miniature size
- High-impact weatherproof ABS plastic case
- The contact reed switch is SPST, deactivated rhodium on gold underplating for a longer expected life
- For closed loop circuits
- 3/4″ (19mm) Gap
- 15″ (38cm) Wire leads extend from the side of the switch
- Double-sided tape included
- Lifetime limited warranty
Specifications
| Model | SM-205Q/W | SM-205Q/BR | |
| Loop type | Closed loop | ||
| Electrical configuration | N.O. (SPST) | ||
| Operation gap | 3/4″ (19mm) | ||
| Connectors | 15″ (38cm) Leads from side | ||
| Color | White | Brown | |
| Material | Case | High-impact ABS plastic | |
| Contacts | Deactivated rhodium on gold underplating | ||
| Contact rating | 1.0A@10VDC (max.) | ||
| 10W (max.) | |||
| Operating temperature | -15°~160° F (-25°~70° C) | ||
| Switch cycles | 50 Million (0.1mA@5VDC) | ||
| Dimensions | Switch | 11/4″x5/16″x1/4″ (32x8x6 mm) | |
| Magnet | 11/4″x5/16″x1/4″ (32x8x6 mm) | ||
| Magnet type | Alnico 5 | ||

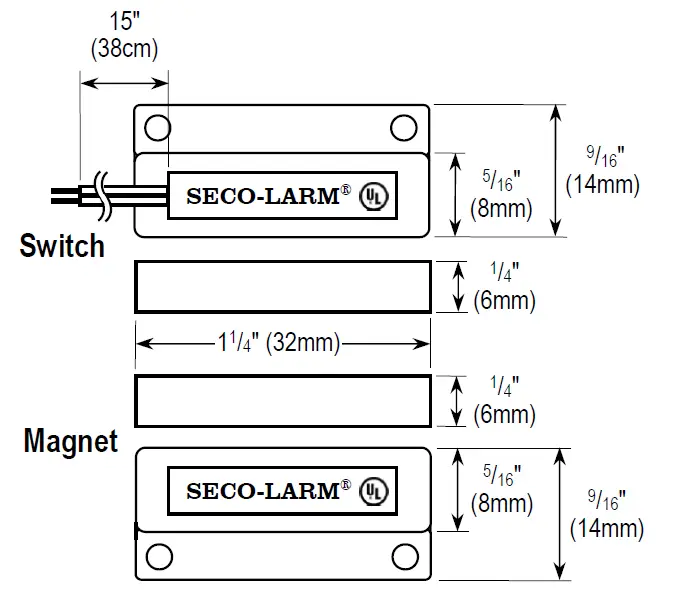

Dimensions
SECO-LARM® U.S.A., Inc. 16842 Millikan Avenue, Irvine, CA 92606
Phone: (949) 261-2999 | (800) 662-0800 Fax: (949) 261-7326 Website: www.seco-larm.com Email: sales@seco- larm.com
