Screw-Terminal Surface-Mount Contacts
Instruction Manual
SM-431-TQ/W / SM-431-TQ/B

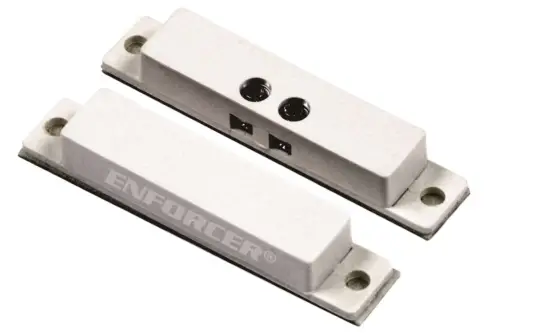

SM-431-TQ/W shown
- Miniature surface-mount magnetic contacts
- Screw mount using side tabs or break off tabs for adhesive mount
- Gold-plated terminals for longer expected life and reliability
- Tape to cover screw terminals included
- The contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness for higher power handling and longer expected life
- For closed-loop circuits
- 1″ (25mm) Gap
- Mounting screws and double-sided tape included
- Lifetime limited warranty
Parts List
| 10x Contact switches | 10x Magnets |
| 20x Mounting screws | 1x Manual |
Specifications
| Model | SM-431-TQM/W | 1 SM-431-TQ/B |
| Loop type | Closed-loop | |
| Electrical configuration | N.O. (SPST) | |
| Operation gap | 1″ (25mm) | |
| Connectors | Gold-plated screw terminals | |
| Housing color | White | Brown |
| Mounting tabs | Yes, removable | |
| Case Material | High-impact ABS plastic | |
| Contacts | Iridium plated | |
| Contact rating | 1.0A@10VDC (max.) | |
| 10W (max.) | ||
| Operating temperature | -15°-160° F (-25°-70° C) | |
| Switch cycles | 50 Million (0.1mA@5VDC) | |
| Dimensions Switch | 2″x3/8″x1/4″ (51x10x6 mm) | |
| Magnet | 2″x3/80×1/4″ (51x10x6 mm) | |
| Magnet type | Rare-earth neodymium | |
Overview
Protected side of the door/window.
Installation
Please read the manual carefully before you begin the installation.
- Mount the contact above the door or window on the frame. For doors, ensure that the mounting is farthest from the hinged side of the door.
- Connect two wires between the two terminals and the alarm control panel.
- Mount the magnet on the door/window so that it will face the contact. Be sure that the gap between the contact and magnet does not exceed 1″ (25mm).
