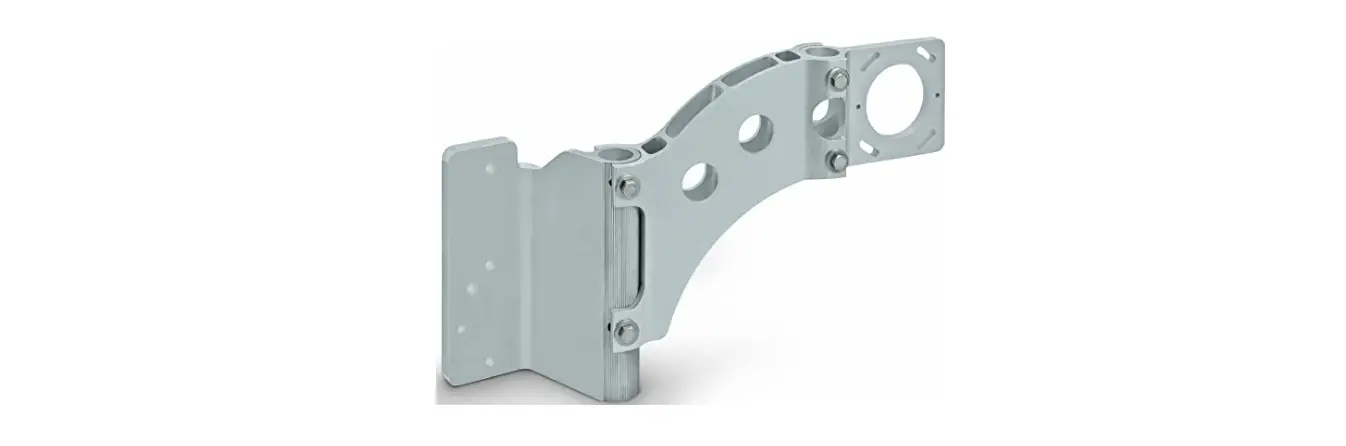

MINN KOTA 1810302 Sandwich Mount Adapter Bracket
Product Information
| Item / Assembly | Part # | Description | Qty. |
|---|---|---|---|
| 2 | 2371984 | JACK PLATE ELBOW BRACKET, STBD | 1 |
| 4 | 2371987 | JACK PLATE ELBOW BRACKET, PORT | 1 |
| 6 | 2371999 | ARM BRACKET | 1 |
| 12 22 | 2371959 | FLAG MOUNTING PLATE BRACKET | 10 |
| A 1 | – | Includes BAG ASSY,TALON TO ADP. BRACKET (Part #2994900) | 1 |
| 12-20 | 2373526 | BOLT-5/16-18 X 2.00 HHCS SS | 4 |
| 14 | 2371749 | WASHER-FLAT 5/16 SS | 4 |
| 16 | 2371746 | WASHER .750 X .3125 SS | 4 |
| 18 | 2223100 | NUT-5/16-18 NYLOCK S/S | 4 |
| – | 2378608 | ANTI SEIZE TUBE, 4CC, TALON | 1 |
| B | – | Includes BAG ASSY, 3PC ADAPTER BRACKET (Part #2994913) | 1 |
| 22-26 | 2373528 | BOLT-1/2-13 X 4 1/4 SS | 4 |
| 24 | 2371757 | WASHER-1/2, HEAVY DUTY, SS | 8 |
| 26 | 2373108 | NUT-1/2-13, NYLOC, SS | 4 |
| – | 2374946 | INSTR. SHEET,3PC SANDWICH BRKT | 1 |
Product Usage Instructions
- Before mounting your Talon Adapter Bracket, please give consideration to the following:
- Attaching the Adapter Bracket will require removal of the Outboard engine and/or Jack Plate. Minn Kota recommends that the installation be performed by a marine dealer or servicing center.
- NOTICE: Longer mounting bolts than originally provided by the outboard manufacturer may be needed for proper installation of the Jack Plate and/or Adapter Bracket.
- CAUTION: Support the Outboard before any work has begun on the bracket installation. An unsecured motor may cause harm from falling. Make sure that all hardware is secure before moving or operating the boat or Outboard once installation is complete.
- The Adapter Bracket can be purchased to accommodate for either a Port or Starboard installation. If an Adapter Bracket is installed to both the Port and Starboard side, the Shim Brackets will not be used and will be replaced with the Elbow Bracket for that side. If the boat is to be rigged that way, it may be necessary to remove a factory equipped e-ladder for proper bracket installation. Due to the wide variety of e-ladders, Minn Kota is not responsible for the re-installation or re-location of any factory equipped e-ladder.
- The Adapter Bracket can be mounted in 3 possible ways:
- a. between the Jack Plate and Transom
- b. between the Outboard and Jack Plate
- c. between the Outboard and Transom
The mounting instructions are described below and will be similar for all installation methods or Jack Plate offset distances.
- The Shim Plate should be orientated so that the Mounting Holes mirror the holes in the Elbow Bracket from the centerline of the boat. Which Mounting Holes on the Elbow Bracket and the Shim Plate used will depend on the Outboard motor installed. The flat edge of the Elbow Bracket should face downward.
