MINN KOTA 1810302 Mounting and Adapter Brackets
Just like Talon locks you to your spot in the water, our mounting and adapter brackets keep Talon locked on your boat in any condition. Unparalleled strength combined with an innovative modular design, so it’s easy to select the right mount and get Talon rigged up on any boat.
CHOOSING YOUR BRACKET
Selecting the right Talon bracket is as easy as 1-2…well that’s it.
Just answer these two questions to find the bracket you need.

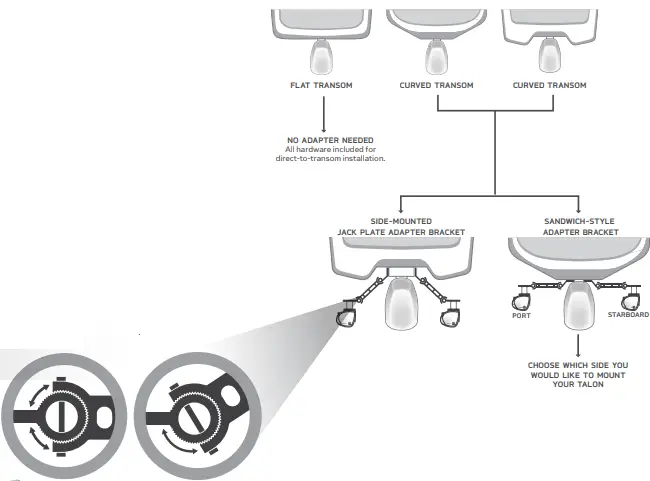

- DO YOU NEED AN ADAPTER BRACKET?
This depends on whether you have a flat or curved transom. If you have a flat transom, we recommend mounting Talon directly to it (all hardware is included for this) without an adapter bracket.
If you have a curved transom, you’ll need an adapter bracket. - IF YOU DO NEED A BRACKET, WHICH KIND?

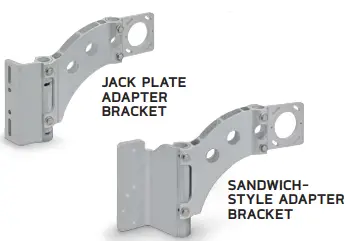

There are two types of Talon adapter brackets: Jack Plate and Sandwich-Style.- Side-Mounted Jack Plate Adapter Brackets
Mount Talon directly to the side of your jack plate, on either the port or starboard side of your boat. - Sandwich-Style Adapter Brackets
Mount Talon between your jack plate and transom OR between the outboard and transom, on either the port or starboard side of your boat
- Side-Mounted Jack Plate Adapter Brackets
FULLY ADJUSTABLE BRACKETS
With a universal design that fits any transom, our brackets can be adjusted and tweaked to the perfect orientation.
And once you’ve got Talon where you want it, interlocking teeth clamp down to lock it into place
| ITEM # | UNIVERSAL MODULAR ADAPTER BRACKETS | SETBACK | PORT/STARBOARD |
| 1810300 | Talon/Humminbird 360˚ Side-Mounted Jack Plate* | Variable | Port/Starboard |
| 1810302 | Talon/Humminbird 360˚ Sandwich-Style** – Port | Variable | Port |
| 1810303 | Talon/Humminbird 360˚ Sandwich-Style** – Starboard | Variable | Starboard |
* Minn Kota Talon Side-Mounted Jack Plate Adapter Brackets include hardware for Atlas hydraulic, Z-Lock manual, and Slidemaster manual jack plates. Not
all jack plates are equipped with mounting holes to accept side mount adapter brackets. Drilling holes to accept side mount adapter brackets may void your
manufacturers warranty. Minn Kota is not responsible for damage that may result
OTHER TALON MOUNTING ACCESSORIES
| ITEM # | DESCRIPTION | SETBACK | PORT/STARBOARD |
| 1810210 | Talon Spacer Block Kit*** | NA | Both |
| 1810211 | Talon BMS Spacer Block Kit – for sandwich mounting between outboard and jack plate | NA | Both |
| 1810212 | Talon BMS Side Shim Kit – fills recess gap on side of BMS jack plate; for jack plate mounting | NA | Both |
| 1810220 | Setback Bracket, 6″ — for direct mount installations only | 6″ | Both |
| 1810237 | Talon and Humminbird 360° Dual Mount Extension Plate* | NA | Both |
NOTE: Some earlier Atlas hydraulic jack plates do not have mounting holes drilled from the factory. Jack plates without mounting holes will have to be drilled and may require part # 1810210 spacer block kit.
TALON AND HUMMINBIRD 360˚ DUAL MOUNT EXTENSION PLATE**
If you want to mount a Talon and a Humminbird 360° on the same bracket, you’ll need our Dual Mount Extension Plate accessory.
**Only compatible with new Universal Modular Adapter Brackets.
ADDED SECURITY
All mounting and adapter brackets carry a five-year warranty.
