AMS-39 Series Standard Surface Mount Contact
Owner’s Manual
AMS-39 SERIES
STANDARD SURFACE MOUNT CONTACT

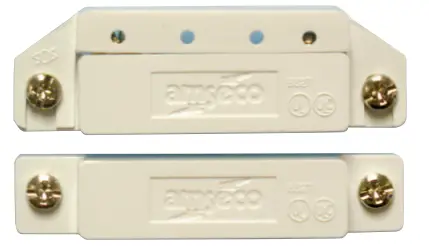

AMS-39 Series Standard Surface Mount Contact
- UL and ULC Listed
- ¾” operating gap
- Spacers and covers included
- Available in white, brown, gray, or ivory*
Application
The AMS-39 Series Standard Surface Mount Contact us a UL listed contact designed to protect a wide variety of openings such as: man doors, sliding doors, windows, cabinets, hatches, and many others.

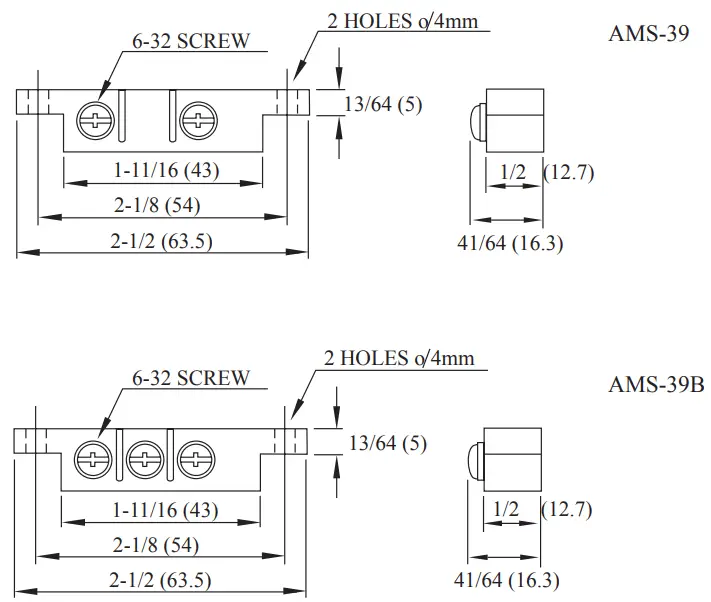

Dimensions
Specifications
| Model | Color | Stock Number | Contact | Contact Rating | Contact Type | Max. Carry Current | Max. Switching Current | Breakdown Voltage | Operating Gap | Mounting Method | Operating Temperature Range |
| AMS-39 | White | 4350190 | Terminal | 10 VA | Form A N.O | 1.0 Amp | .4 Amp | 200 VDC | ¾ | Screw | 32° F to 120° F (0° C to 49° C) |
| Brown | 4350187 | ||||||||||
| Gray | 4350188 | ||||||||||
| Ivory | 4350189 | ||||||||||
| AMS-39B | White | 4350204 | 3 VA | Form C N.O./N.C. | .5 Amp | .2 Amp | 150 VDC | ||||
| Brown | 4350202 | ||||||||||
| Ivory | 4350078 | ||||||||||
| AMS-39CVS (includes screws, covers, and spacers) 5 sets per pack | White | 4350186 | 10 VA | Form A N.O. | 1.0 Amp | .4 Amp | 200 VDC | ||||
| Brown | 4350184 | ||||||||||
| Gray | 4350067 | ||||||||||
| Ivory | 4350185 |
* AMS-39B not available in gray
Potter Electric Signal Co., LLC
St. Louis, MO
Cust Service: 866-240-1870
Tech Support: 866-956-1211
Canada 888-882-1833
www.pottersignal.com
PRINTED IN USA
MKT. #8880118 – REV B
