AMS-59 Concealed Type Surface Contact
Owner’s Manual
AMS-59
CONCEALED TYPE SURFACE CONTACT

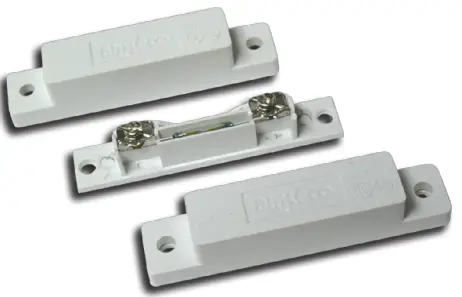

AMS-59 Concealed Type Surface Contact
- UL and ULC listed
- ¾” operating gap
- Unique design to conceal leads
- Available in white, brown, or gray
Application
The AMS-59 is a UL listed surface mount contact designed to provide fast, easy, and clean installations. The specially designed housing is also used as the contact’s cover to conceal the wiring and deter tampering. The AMS-59 contact can be used to protect openings such as: man doors, sliding doors, windows, cabinets, and hatches.

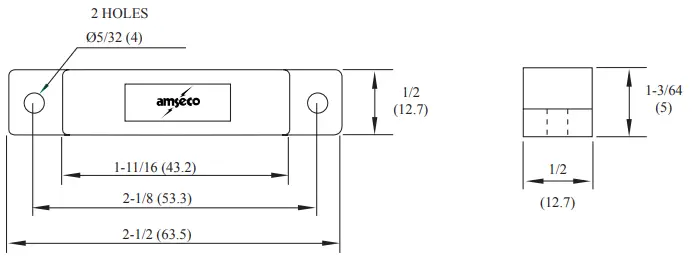

Dimensions

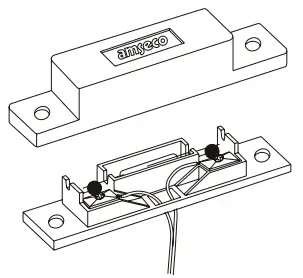

Installation
Specifications
| Model | Color | Stock Number | Contact | Contact Rating | Contact Type | Max. Carry Current | Max. Switching Current | Breakdown Voltage | Operating Gap | Mounting Method |
| AMS-59 | White | 4350089 | Terminal | IOVA | Form A N.O. | 1.5 Amp | .5 Amp | 350 VDC | 3/4″ | Screws |
| Brown | 4350217 |
Potter Electric Signal Co., LLC
St. Louis, MO
Cust Service: 866-240-1870
Tech Support: 866-956-1211
Canada 888-882-1833
www.pottersignal.com
PRINTED IN USA
MKT. #8880100 – REV C
