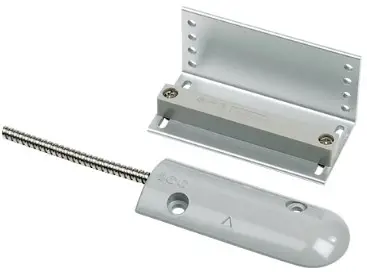

POTTER ODC-59 Series Overhead Door Contact Owner’s Manual

UL and ULC listed
2” operating gap
HG – 7” Horizontal gap
24” stainless steel armored cable
Adjustable, aluminum L bracket
Hermetically sealed reed switch

Contents hide

1 Application

2 ODC-59 Wiring Designations

3 Dimensions

4 Support

5 Documents / Resources

5.1 References

6 Related Posts

Application

The ODC-59 Series Overhead Door Contacts are exclusively designed for rugged high traffic installations. The reed switch is hermetically sealed with a PVC shock absorber enclosed within a solid aluminum housing. Installation wires are protected in a 24” stainless steel armored cable. The ODC-59 Series magnet is mounted on an adjustable L shaped bracket designed for greater flexibility, universal mounting, greater pulling power, and to provide a professional installation appearance.

The ODC-59-HG (horizontal gap) is designed as a solution for damaged or loose fitting doors.
The ODC-59 MINI offers all the same great features in a smaller size for greater installation flexibility. (Not ULC listed

ODC-59 Wiring Designations

With Magnet Installed:

Red = Normally-Open (N.O.)

Black = Common (Com)

Green = Normally-Closed (N.C.)

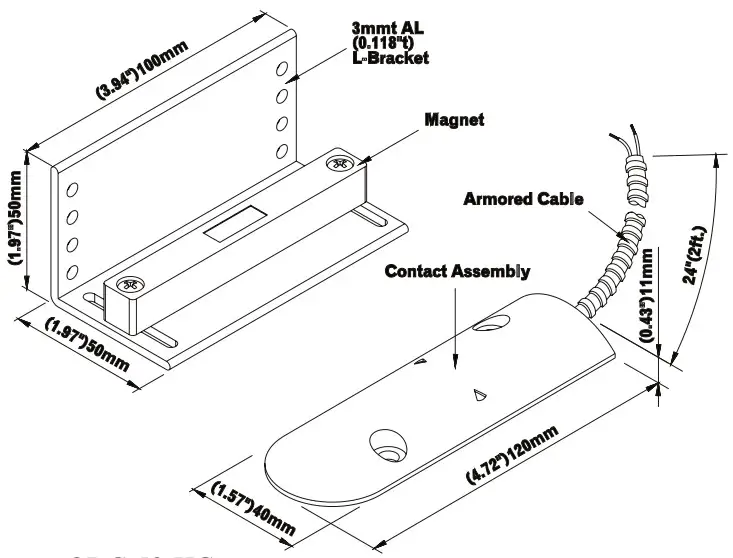

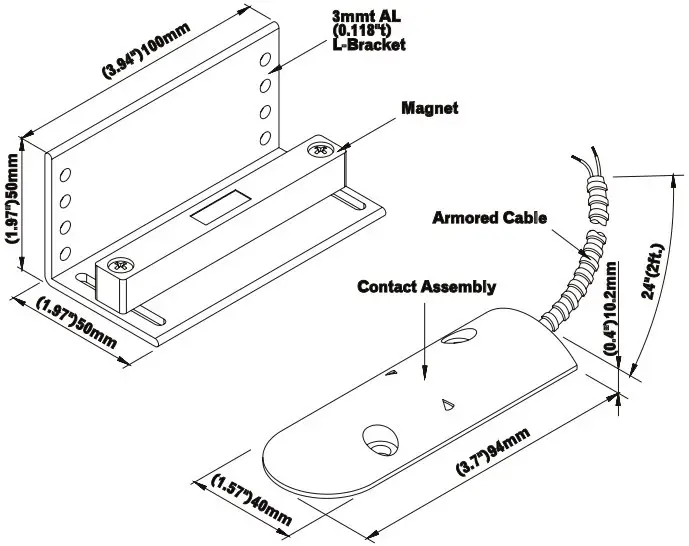

Dimensions

ODC-59
ODC-59 Mini
ODC-59-HG

Ordering Information

Model	Stock Number	Contact	ContactRating	ContactType	Max. Carry Current	Max. Switching Current	Breakdown Voltage	Operating Gap	Temperature Range
ODC-59A	4410003	22AWG	10VA	Form A N.O.	2 Amp	.5 Amp	250VDC	2”	32°F – 120°F (0°C – 49°C)
		24” Leads
ODC-59A-36	4410004	22AWG
		36” Leads
ODC-59B	4410006	22AWG24” Leads	3VA	Form C	.5 Amp	.2 Amp	150VDC
				N.O./N.C.
ODC-59A-HG	4410018		10VA	Form A	2 Amp	.5 Amp	250VDC
				N.O.
ODC-59B-HG	4410019		3VA	Form C	.5 Amp	.2 Amp	200VDC
				N.O./N.C.
ODC-59A-MINI	4410017		10VA	Form A	2 Amp	.5 Amp	250VDC
				N.O.
Accessories	4350178	Magnet and L bracket
