ODC-56 Series Overhead Door Contact with Fixed Magnet
Owner’s Manual
ODC-56 SERIES
OVERHEAD DOOR CONTACT
WITH FIXED MAGNET
ODC-56 Series Overhead Door Contact with Fixed Magnet
- UL and ULC listed
- 2” operating gap
- 24” stainless steel armored cable
- Hermetically sealed reed switch
Application

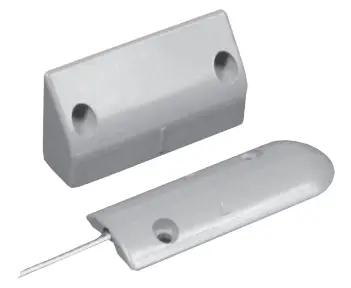

The ODC-56 Series Overhead Door Contacts are exclusively designed for rugged high traffic installations. The reed switch is hermetically sealed with a PVC shock absorber enclosed within a solid aluminum housing. Installation wires are protected in a 24” stainless steel armored cable. The magnet is enclosed and protected in a heavy duty aluminum housing.

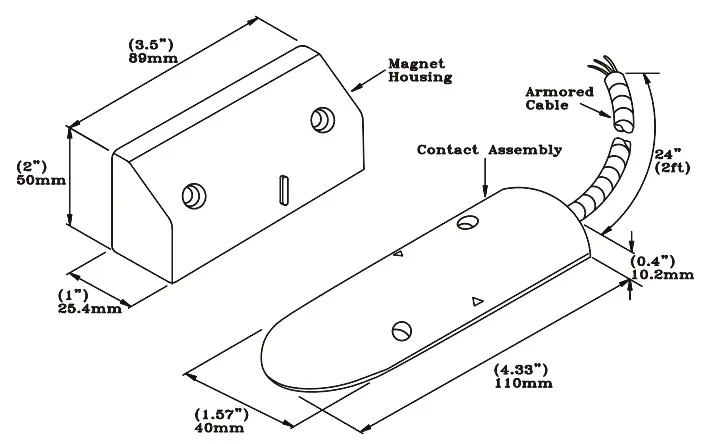

Dimensions
Specifications
| Model | Stock Number | Contact | Contact Rate | Contact Type | Max. Cary Current | Max. Switching Current | Breakdown Voltage | Operating Gap | Temperature Range |
| ODC-56A | 4410014 | 22 AWG 24″ Leads | IOVA | Form A N.O. | 2 Amp | .5 Amp | 250VDC | 2″ | -40°F – 257°F (40°C – 125°C) |
| ODC-56B | 4410015 | 3VA | Form C N.OJN.C. | .5 Amp | .2 amp | 150VDC |
Potter Electric Signal Co., LLC
St. Louis, MO
Cust Service: 866-240-1870
Tech Support: 866-956-1211
Canada 888-882-1833
www.pottersignal.com
PRINTED IN USA
MKT. #8880123 – REV B
