U-prox Wdc Mini Wireless Magnetic Door-window Contact User Manual

U-PROX WDC Mini Wireless Magnetic Door-Window Contact

WIRELESS MAGNETIC DOOR/WINDOW CONTACT
Is a part of the U-Prox security alarm system
Manufacturer: Integrated Technical Vision Ltd.
Vasyl Lypkivsky str. 1, 03035, Kyiv, Ukraine

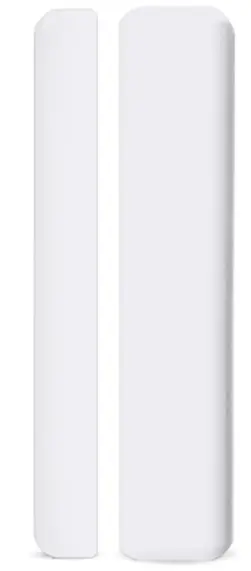

U-Prox WDC mini – is a wireless magnetic contact designed to monitor the status of structural elements (open/close) to detect an attempt to enter a room. The device sends an alarm notification to the alarm center’s U-Prox security alarm system. Mounted indoors and used to protect doors and windows.
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.

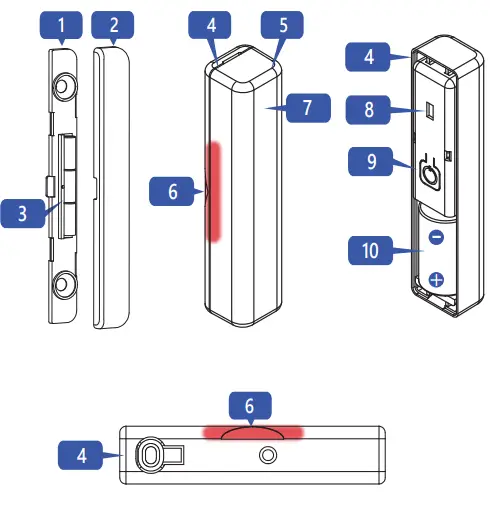

Functional parts of the device

1. Bottom plate of magnet case
2. Magnet case cOver
3. Neodymium magnet
4. Bottom plate of the detector case
5. Detector case top cover and capsule with the device
6. Magnet position marks
7. LED indicator
8. Tamper switch
9. On/off button
10. Battery CR2

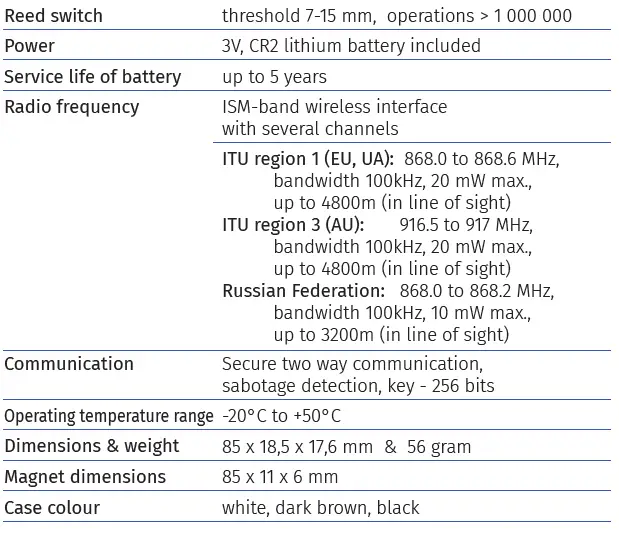

TECHNICAL SPECIFICATIONS

COMPLETE SET

1. U-Prox WDC mini
2. Magnet
3. CR2 battery (pre-installed);
4. Mounting kit
5. Quick start guide

CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS

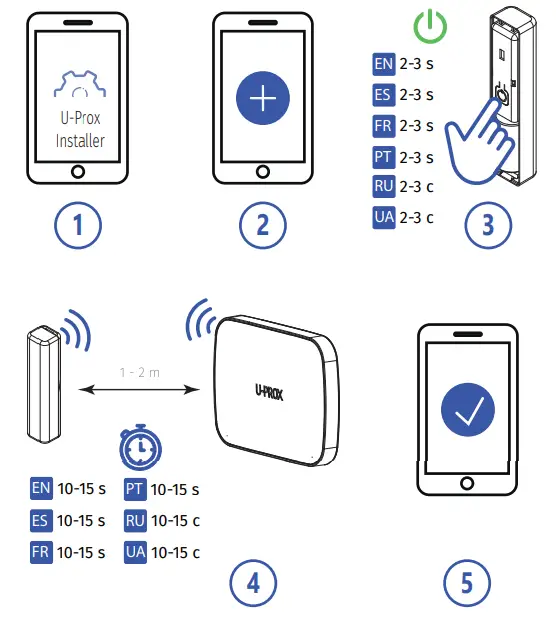

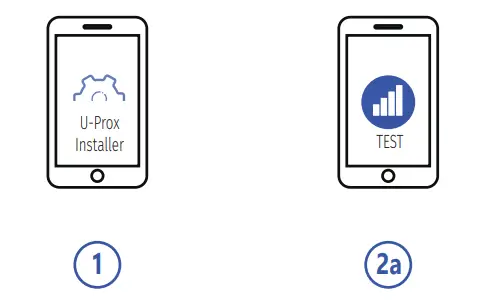

REGISTRATION

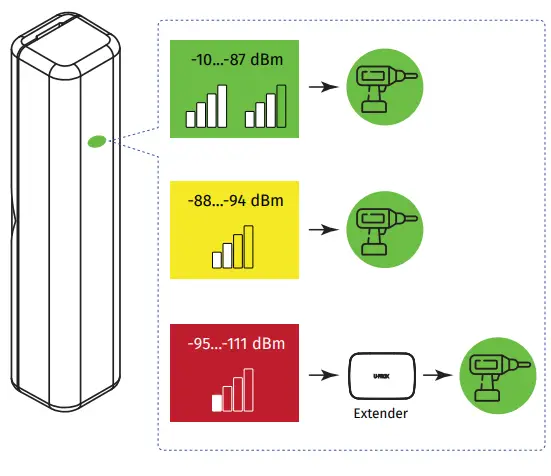

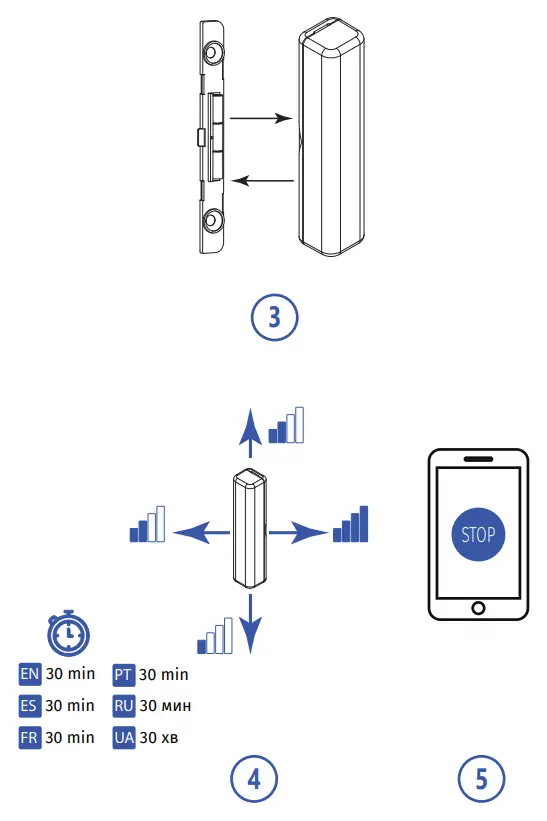

RANGE TEST FOR OPTIMAL INSTALLATION LOCATIONDue to Grade 2 requirement RF link works with reduction of power in 8 dB

INDICATION IN RANGE TEST MODE

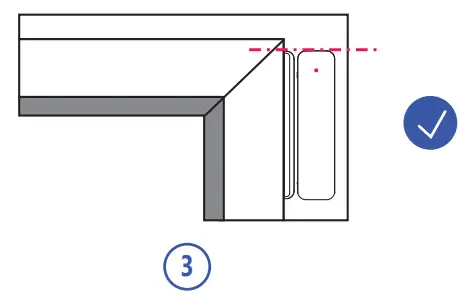

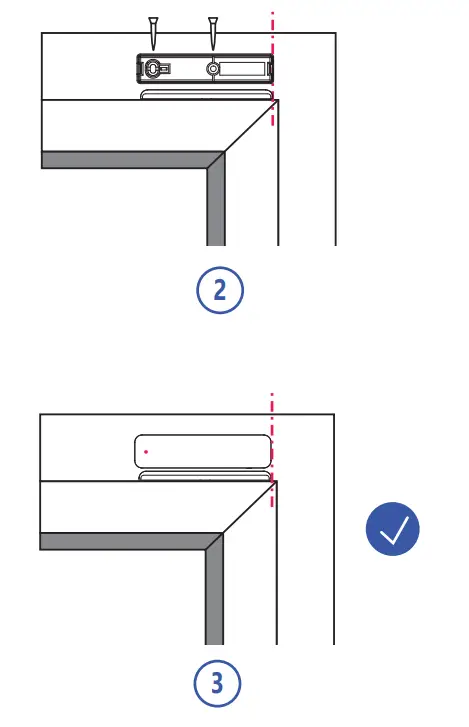

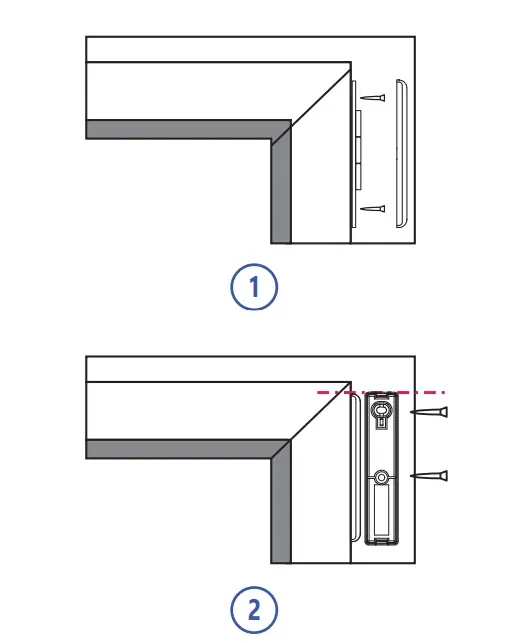

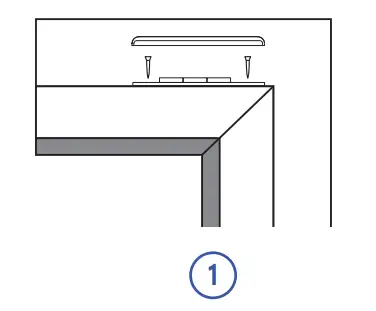

INSTALLATION

WARRANTY

Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] at first, maybe it can be solved remotely
