WIRELESS MAGNETIC DOOR/WINDOW CONTACT
Is a part of the U-Prox security alarm system User manual
Manufacturer: Integrated Technical Vision Ltd. Vasyl Lypkivsky str. 1, 03035, Kyiv, Ukraine
U-Prox WDC – is a wireless magnetic contact designed to monitor the status of structural elements (open/close) to detect an attempt to enter a room. The device sends an alarm notification to the alarm center U-Prox security alarm system. Mounted indoors and used to protect doors and windows.
The detector has connector for connecting the arming information LED and external sensor, e.g. reed switch.
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.
U-Prox Installer
https://u-prox.systems/Installer

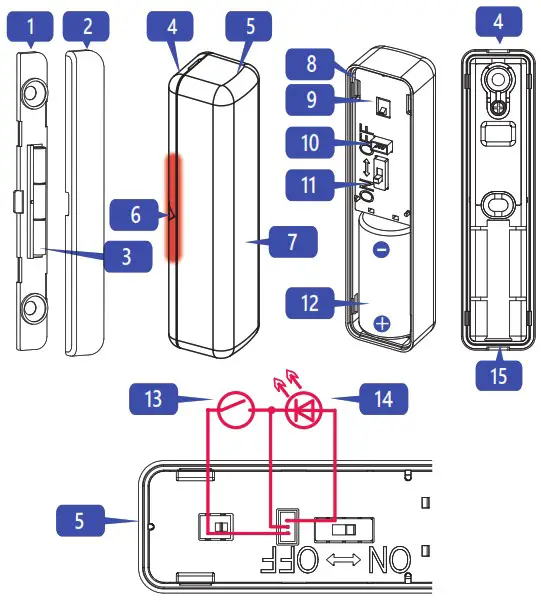

Functional parts of the device (see picture)
- Bottom plate of magnet case
- Magnet case cover
- Neodymium magnet
- Bottom plate of the detector case
- Detector case top cover with the device
- Magnet position marks
- LED indicator
- Plastic protector of device board
- Tamper switch
- Connector for external sensor and LED: LD contact (+ LED) GND contact (earth) DC contact (sensor)
- On/off button
- Battery CR123A
- External sensor (reed switch)
- External LED
- Rubber seal
TECHNICAL SPECIFICATIONS
| Reed switch | threshold 7-15 mm, operations > 1 000 000 |
| Power | 3V, CR123A lithium battery included |
| Service life of battery | up to 5 years |
| Radiofrequency | ISM-band wireless interface with several channels |
| ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight) ITU region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight) | |
| Communication | Secure two way communication, sabotage detection, key – 256 bits |
| Dimensions & weight | -20°C to +50°C |
| Operating temperature range | 85 х 20,9 х 20,4 mm & 66 gram |
| Magnet dimensions | 85 х 11 х 6 mm |
| Case colour | white, dark brown, black |
COMPLETE SET
- U-Prox WDC;
- Magnet;
- CR2 battery (pre-installed);
- Mounting kit;
- Quick start guide
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS
WARRANTY
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] at first, maybe it can be solved remotely.

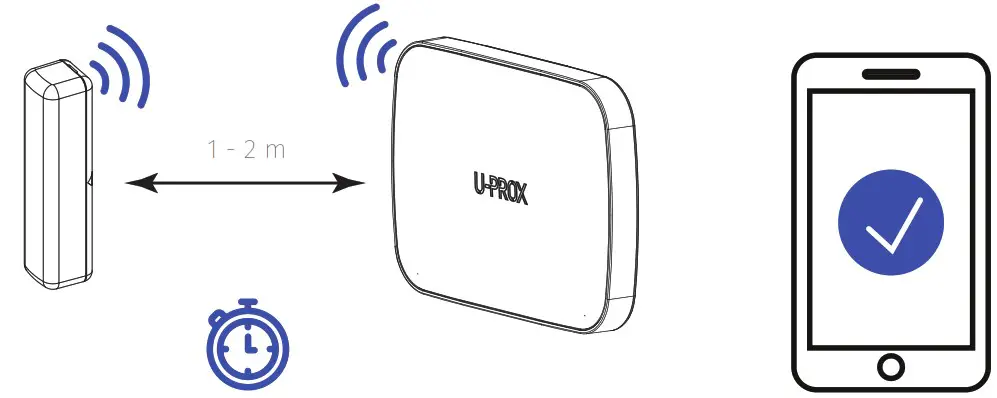

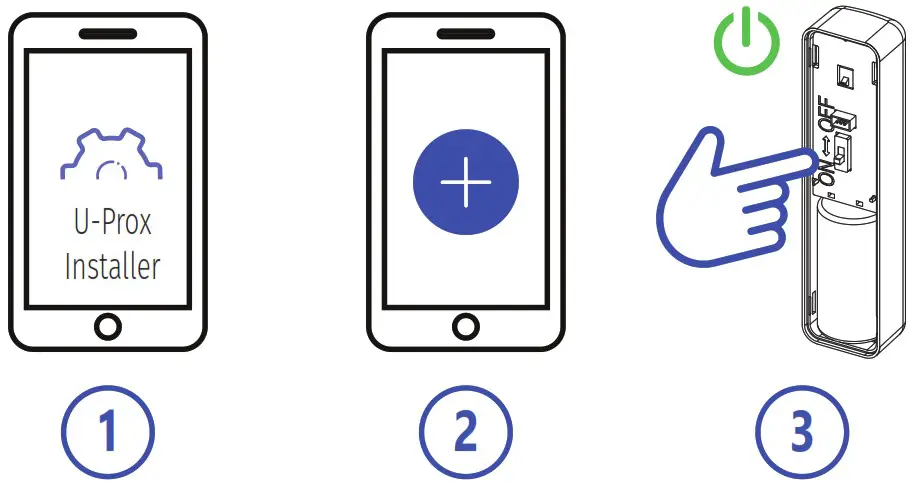

REGISTRATION
2-3 s
10-15 s

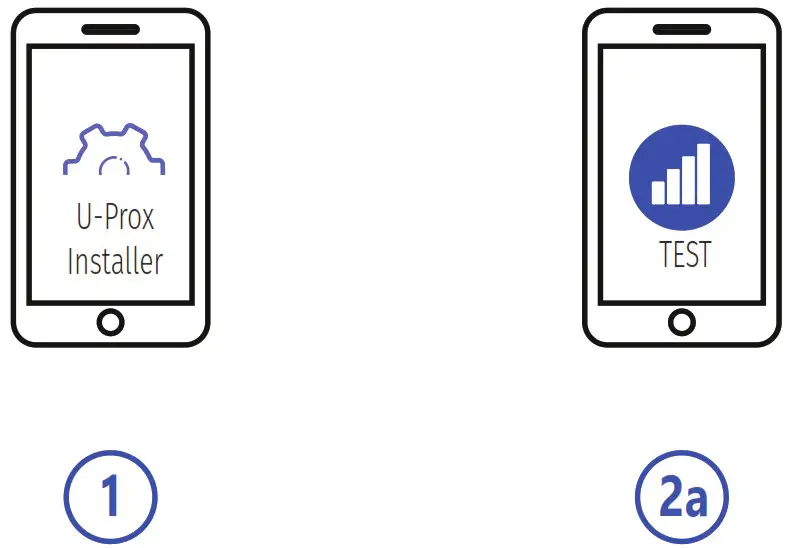

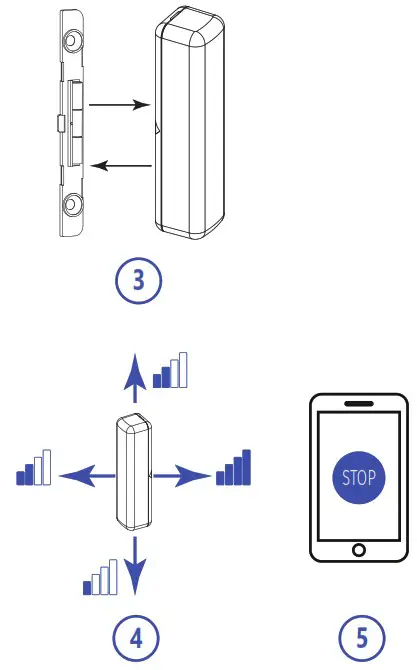

RANGE TEST FOR OPTIMAL INSTALLATION LOCATION

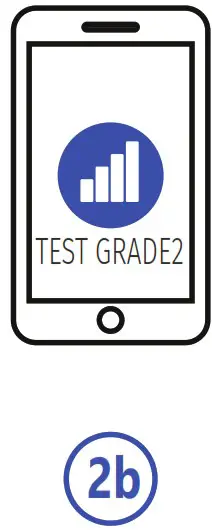

Due to Grade 2 requirement RF link works with reduction of power in 8 dB
30 min

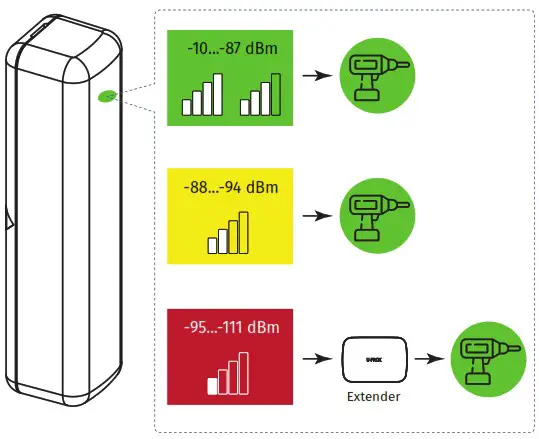

INDICATION IN RANGE TEST MODE

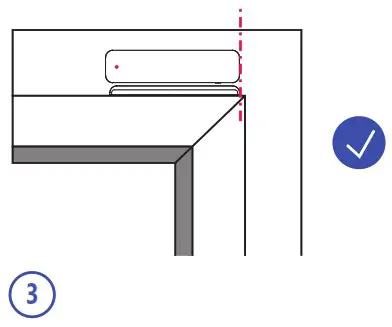

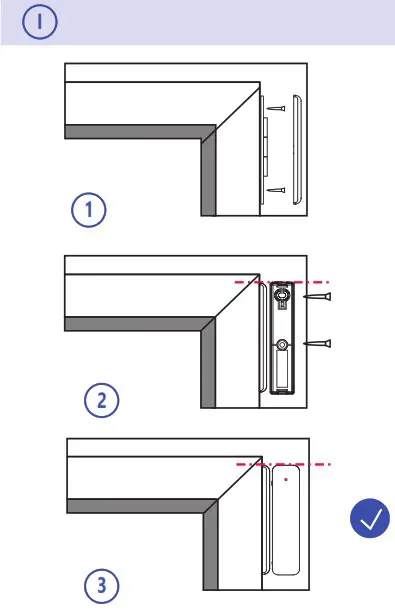

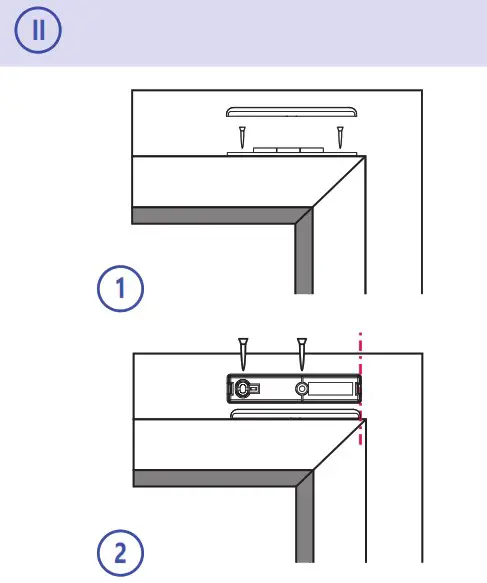

INSTALLATION

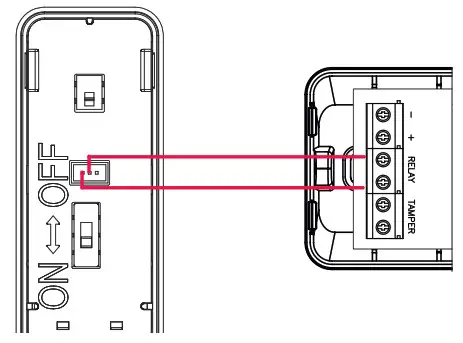

AN EXTERNAL SENSOR CONNECTION

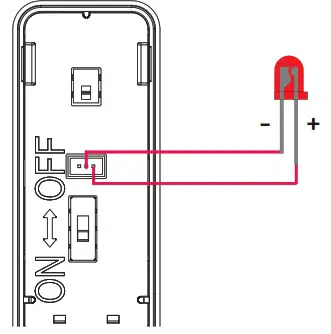

AN EXTERNAL LED CONNECTION
