EBP-401
LONG RANGE DOOR ANNUNCIATOR SYSTEM
- Intelligent microprocessor driven system
- 40 ft. detection range across doorway
- Four user selectable chime sounds
- Advanced circuit integrated with active-infrared beam technology
- High/low volume control
- Expandable using additional chimes (CM-5)
Stock number: 4130030
The EBP-401 is a surface mount, 40 ft., long range annunciator system using active infrared technology. This invisible single infrared beam triggers a pleasant chime sound when the infrared beam is interrupted. The system can be installed anywhere inside the buildings where traffic surveillance is required.

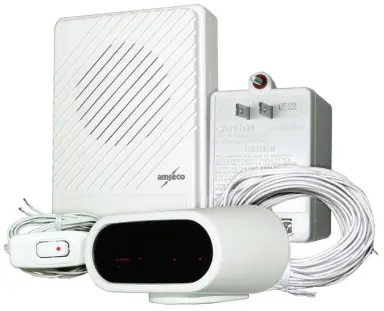

Complete Kit Includes:
1 Electronic chime
1 Infrared sensor
1 Reflector
1 Power transformer (12V AV 20VA)
1 Long plastic bracket
1 Metal short bracket
1 Short plastic bracket
1 6 ft. power cord with in-line switch
1 26 ft. 2-conductor wires
6 3/4″ sheet metal screws
1 3/8″ bolt w/locking washer
2 5/8″ machine screws w/washers and nuts
1 Manual
Electronic Chime Infrared Sensor 26 ft Wires
Power Transformer (12VAC 20VA) Reflector
Long Plastic and Short Metal Mounting Bracket Short Mounting Bracket
6 ft Power Cords With In-line ON/ OFF Switch Hardware

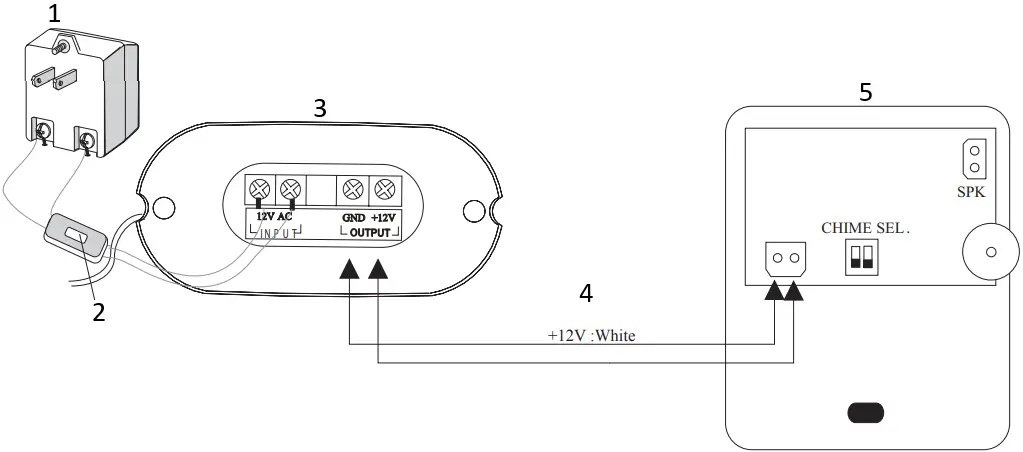

Wiring Diagram
- Transformer
- Power Switch
- EBPT-401
- GND: White/Black
- CM-5

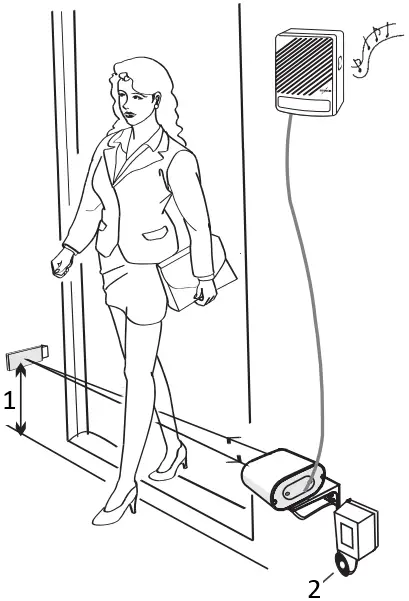

- 2~3 Feet Min.
- Power ON/OFF Switch
Installation
NOTICE
If necessary, use cable ties to keep wires safely out of the way to avoid tripping.

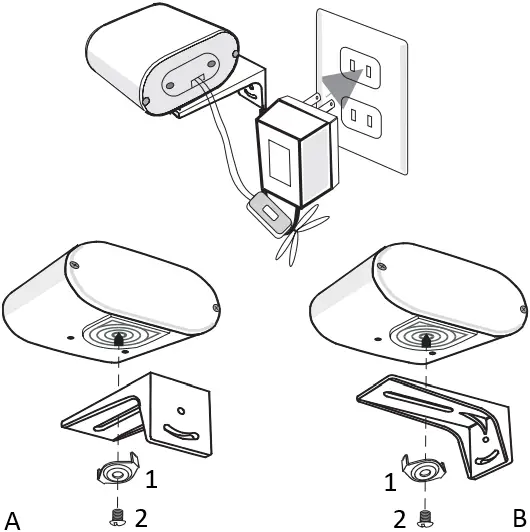

A Rear Mount
B Side Mount
1. Lock Washer
2. Screw
- ALIGNMENT LED LIGHTS UP WHEN THE REFLECT OR ALIGNMENT IS SUCCESSFUL.

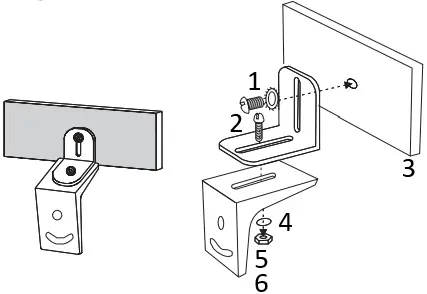

- Reflector
- 3/8″ Bolt
- 5/8″ Screw
- Meta l Short Bracket
- Locking Washer
- Nut
- Short Plastic Bracket
Specifications
| Part Information | EBP-401 |
| Description | Long Range Wired Annunciator System |
| Detection method | Active infrared |
| Detection range | 40 ft. |
| Maximum transmission range | 1000 ft. AWG#22 2P wire |
| Power source | Sensor: 12V AC/DC, 20VA Chime: 12V DC, 10VA |
| Power consumption: Standby | Sensor: 50mA Chime: 100mA |
| Power consumption: In alarm | Sensor: – Chime: 500mA |
| Volume level | 80dB (low) – 95dB (high) |
| Chime sounds selection | Selectable among 4 sounds by a dip SW |
| Chime sounds level selection | JP1 (Jumper SHORT LOW Jumper OPEN HIGH) |
| Response time | 4m sec. |
| Light source | Infrared pulse beam 950mm |
| Installation location | Indoor |
| Infrared beam interception warning | Sensor: JP1 selectable OFF/10 sec/60 secretary |
| Install setting | Transformer Power ON – Red Alignment LED ON – Transformer Power OFF – Transformer Power ON – Setting |
| Power switch | Yes |
| Temperature | 14°F – 122°F (-10°C – 50°C) |
| Weight | Sensor: 125g Chime: 164.4g |
| Dimension: (W x H x D) | Sensor: 2 1/2” x 1 7/8” x 3 7/16” Chime: 4 7/8” x 3 1/2” x 1 3/8” |
PRINTED IN USA MKT. #8850053 – REV B
