POTTER RA-7630-RA-7692 Annunciators
POTTER RA-7630-RA-7692 Annunciators

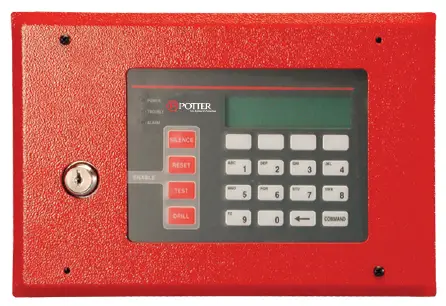

RA-7630
Feature
- Both Annunciator and Programmer
- 32 Character LCD Display
- Power On LED
- Backlit key pad
- Passcode protection or key operated
- Simplistic wiring connections
- User menu
- Zone messages
Description
The RA-7630 LCD Annunicator offers a 32-character full text LCD readout that displays system events and menu prompts, making it efficient and easy-to-use. The backbox and trim frame provide an attractive installation. The keypad can either be flush-mounted or surface-mounted. The RA-7630 Fire Command Center has a factory installed keyswitch that enables the four function buttons—Alarm Silence, System Reset,
Stock number: 3003007
System Test, and Fire Drill. The user can also access these four functions and many more through the User Menu by entering a valid user code. An internal diagnostics program lets installers and service technicians test the operation of the keypad at any time without disabling the system.

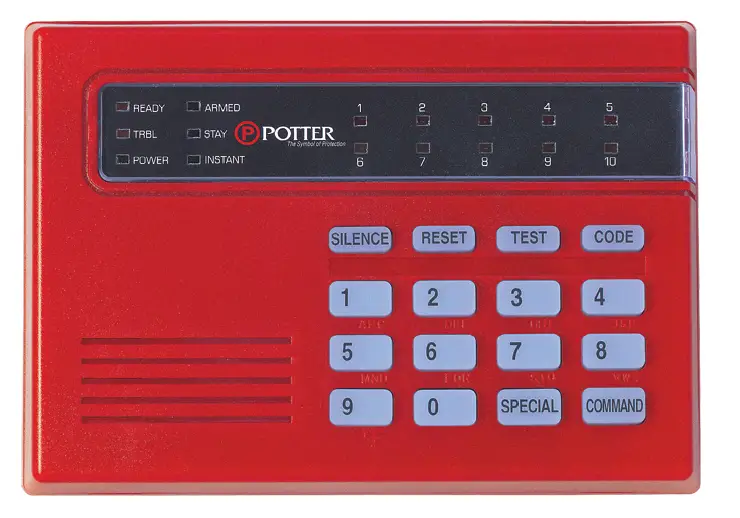

RA-7692
Feature
- Green LED for “Power On”
- 5 Red Alarm LED’s
- 5 Amber Trouble LED’s
- Mounts on door of cabinet or remotely
- Simplistic wiring connections
- Internal buzzer
- Trouble LED for Communication failure or Phone line problem.
Description
The RA-7692 keypad annunciator provides LED notification of the system status for the PFC-7500 series communicators. The panel has five sets of LEDs to indicate alarm and trouble conditions. In addition, the panel has a Power ON LED and a Trouble LED that will indicate a communication and phone line failure. There is a piezo sounder that will activate momentarily anytime a key is pressed, sounds intermittently during a trouble condition and sounds steady when an alarm condition is present.
Stock number: 3003002
The keypad is powered directly from the PFC-7500 series panel. The keypad has a wire harness that readily connects to the panel. The keypad efficiently operates on 30mA and up to 500mA worth of the RA-7692 can be connected to a single panel. The keypad has a removable back for ease in mounting.
Potter Electric Signal Co., LLC • St. Louis, MO • Cust Service: 866-240-1870 • Tech Support: 866-956-1211 • Canada 888-882-1833 • www.pottersignal.com
