AMS-38 Mechanical Surface Mount Contact
Owner’s Manual
AMS-38
MECHANICAL SURFACE
MOUNT CONTACT

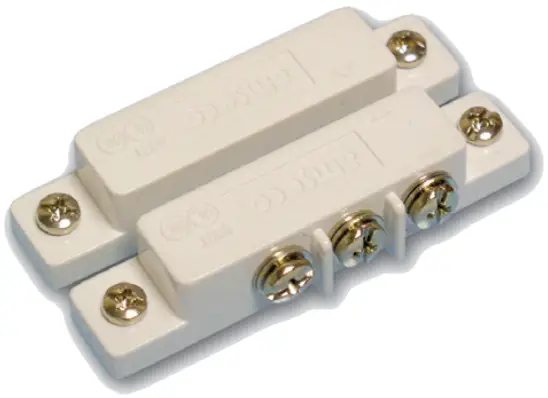

AMS-38 Mechanical Surface Mount Contact
- UL and ULC Listed
- AC rated
- 5/8” operating gap
- Alnico 5 magnet
- Available in white, brown, gray, or ivory
Application
The AMS-38 Mechanical Surface Mount Contact is a UL listed and AC rated contact designed to endure higher voltages than other standard reed contact switches. The AMS-38 can be used to protect openings or to activate other applications such as lighting, sounders, or any other secondary function.

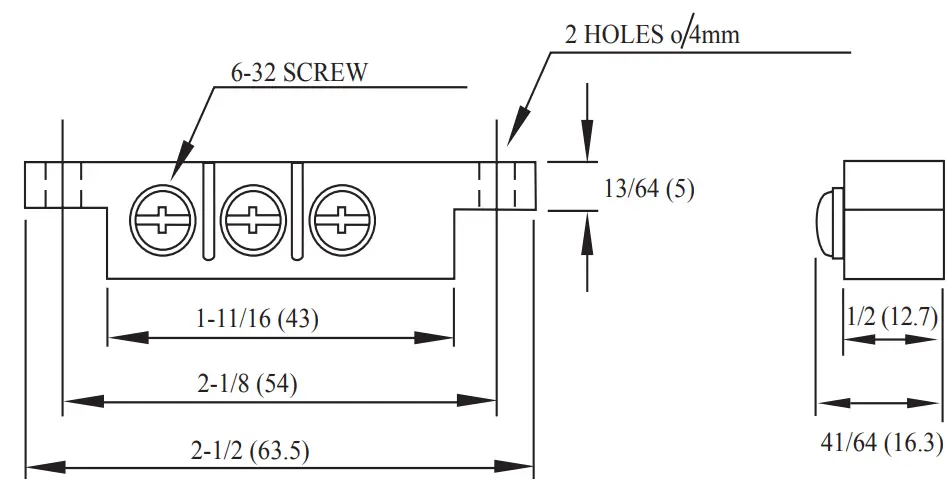

Dimensions
Specifications
| Model | Color | Stock Number | Contact | Electrical Rating | Contact Type | Operating Gap | Mounting Method |
| AMS-38 | White | 4370017 | Terminal | 300V Max. 3 Amp Max. | Form C N.G./N.C. | 5/8″ | Screw |
| Brown | 4370013 | ||||||
| Gray | 4370015 | ||||||
| Ivory | 4370003 |
Potter Electric Signal Co., LLC
St. Louis, MO
Cust Service: 866-240-1870
Tech Support: 866-956-1211
Canada 888-882-1833
www.pottersignal.com
PRINTED IN USA
MKT. #8880117 – REV B
