AMS-10 SERIES
MINI SURFACE MOUNT CONTACT
Owner’s Manual
AMS-10 Series Mini Surface Mount Magnetic Contact
- UL and ULC Listed
- Slim design for tight spaces
- ¾” operating gap
- Alnico 5 magnet
- Available in white, brown, gray, or ivory
- Screw or 3M adhesive
Application

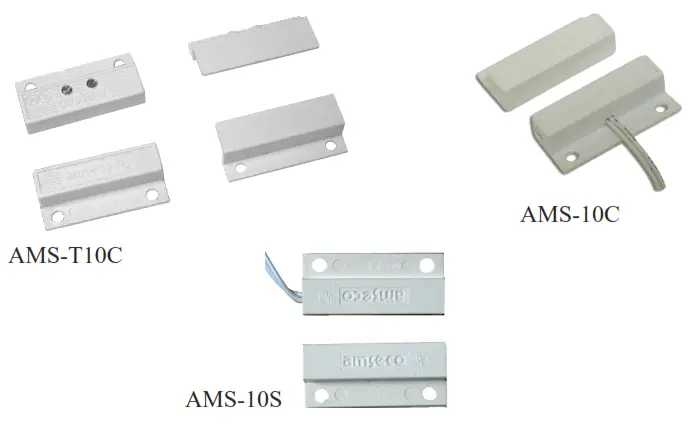

The AMS-10 Series Mini Surface Mount Contact is a UL Listed slim contact designed for tight spaces to accommodate hard to reach locations. The AMS-10 Series is available with side mount leads, center mount leads, or with terminals only. This provides options for fitting multiple applications. These devices can be used to protect openings such as: man doors, sliding doors, windows, or any other opening that requires a small contact.

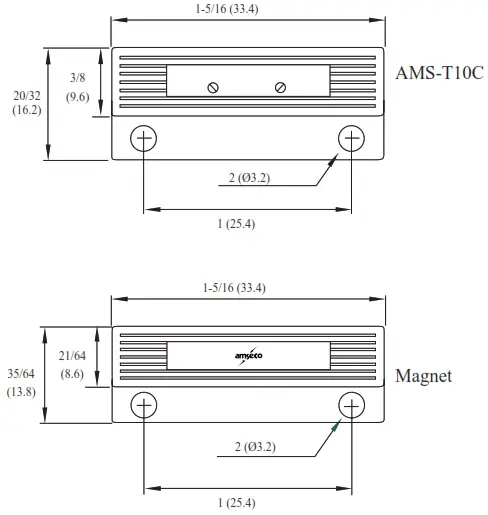

Dimensions
Specifications
| Model | Color | Stock Number | Contact | Contact Rating | Contact Type | Max.Carry Current | Max.Switching Current | Breakdown Voltage | OperatingGap | Mounting Method | Operating Temperature Range |
| AMS-10C | White | 4350108 | 25″Center Lead | IOVA | Form A N.O. | 1.0 Amp | .3 Amp | 200VDC min. | ye, | Screw in self- adhesive 32°F | 32°F to 120°F (0°C to 49°C) |
| Brown | 4350098 | ||||||||||
| Gray | 4350100 | ||||||||||
| Ivory | 4350102 | ||||||||||
| AMS-10S | White | 4350109 | 25″ Side Lead | ||||||||
| Brown | 4350099 | ||||||||||
| Gray | 4350101 | ||||||||||
| Ivory | 4350104 | ||||||||||
| AMS-T10C | White | 4350107 | |||||||||
| Brown | 4350106 | Terminal |
Potter Electric Signal Co., LLC
St. Louis, MO
Cust Service: 866-240-1870
Tech Support: 866-956-1211
Canada 888-882-1833
www.pottersignal.com
PRINTED IN USA
MKT. #8880116 – REV B
