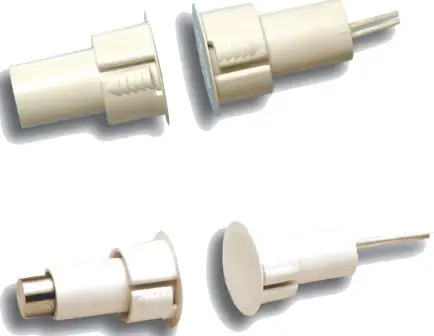

POTTER Ams-25-26 Series 3-4 Inch Press Fit Magnetic Contact
- UL Listed
- ¾” operating gap (AMS-25 Series)
- 1¼” operating gap (AMS-26 Series)
- Self-locking
- Available in brown, gray, or ivory
Application
The AMS-25/26 Series is a UL listed contact designed to provide a clean and easy installation for standard openings. The AMS-25 provides a standard ¾” operating gap and the AMS-26 provides a wide 1¼” operating gap. These contacts are perfect for commercial applications where steel doors are common.

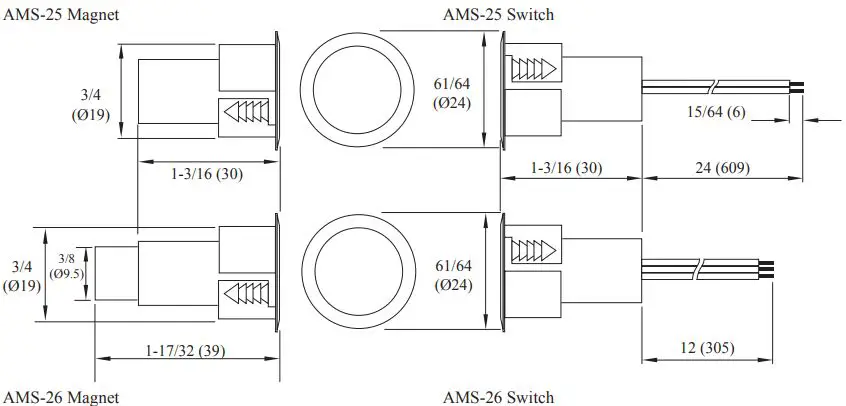

Dimensions
Specifications
| Model | Color | Stock Number | Contact | Contact Rating | Contact Type | Max. Carry Current | Max. Switching Current | Breakdown Voltage | Operating Gap | Mounting Method | Operating Temperature Range |
| AMS-25A | Brown | 4350051 | 22AWG 24” Lead | 10VA | Form A N.O | 1.0 Amp | .3 Amp | 200VDC |
¾” |
Press fit |
32°F to 120°F (0°C to 49°C) |
| Gray | 4350158 | ||||||||||
| Ivory | 4350159 | ||||||||||
| AMS-25B | Brown | 4350052 |
22AWG 12” Lead | 3VA | Form C N.O./N.C. | .5 Amp | – | 150VDC | |||
| Gray | 4350157 | ||||||||||
| AMS-26A | Brown | 4350056 | 10VA | Form A N.O. | 1.0 Amp | .3 Amp | 200VDC |
1¼” | |||
| Gray | 4350160 | ||||||||||
| AMS-26B | Brown | 4350232 | 3VA | Form C N.O./N.C. | .5 Amp | – | 150VDC | ||||
| Gray | 4350233 |
Potter Electric Signal Co., LLC • St. Louis, MO • Cust Service: 866-240-1870 • Tech Support: 866-956-1211 • Canada 888-882-1833 • www.pottersignal.com
